5KW Home Used Solar Power Hybrid System for Water Pump Irrigation & Lighting System

5KW home used solar power hybrid system for water pump irrigation & lighting system

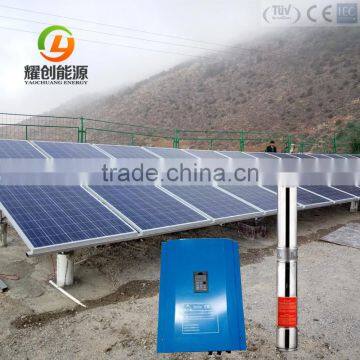

The solar water pump system is composed of solar pump inverter, AC pump, PV array, combiner box, water level switch, distribution box, and mounting bracket. The PV array is composed of many solar panels in series and parallel, and absorbs irradiation from sunlight, and converts into electrical energy(DC). Inverter controls and regulates pumping operation system and converts DC voltage from PV array to AC voltage to drive the AC pump, with the function of MPPT and it regulates the output frequency according to irradiation in actual time to achieve the maximum power. The AC pump is driven by a single or three phase induction motor, draws water from well or river, or lakes, then water reserved on tank / pond for irrigation system or other applications. Base on the requirements and installation conditions, different types of pumps will be required.

The solar water pump system is widely used for sea water desalination system, desert controlling, daily life water supplying, agricultural irrigation, forest irrigation, waterscape, and water treatment projects. YAOCHUANG solar water pump system is dispensed with battery and that enhance the reliability of the system, and reduce the bill invest.
