Solar Water Pump With PLC System Controlling for 15KW Electric Submersible / Surface Water Pump
US$ 500 - 15,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
Yaochuang Energy
Model Number:
surface water pump
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Best Price High Efficient Yaochuang Energy 15KW Solar Water Pump for AgricultureUS$ 500 - 15,000MOQ: 1 Set -
7.5KW 9.2KW 11KW 13KW 15KW 18.5KW Solar Water Pump SystemUS$ 500 - 15,000MOQ: 1 Set
-
Daily Water Discharge 220 Cubic Meter at 90 m Head 15KW Solar Power Water Pump System for Agriculture IrrigationUS$ 500 - 15,000MOQ: 1 Set
-
Hot Selling 16.7 L/S Flow 64 Meters Head Lift 15KW 20HP Submersible Deep Well Solar Water PumpUS$ 500 - 15,000MOQ: 1 Set
-
1-10 Years Warranty High Quality Stainless Steel Solar Water Pump for Agriculture IrrigationUS$ 34,000 - 45,000MOQ: 1 Set
Place of Origin
Shanghai, China
Brand Name
Yaochuang Energy
Model Number
surface water pump
Specification
Normal
Application
Commercial
Output Voltage (V)
380V / 400V / 440V 3 phase
Load Power (W)
15KW
Solar Power (W)
24KW
Work Time (h)
24 hours
Solar water pump with PLC system controlling for 15KW electric submersible / surface water pump
- Solar panel PV module 10 years repair warranty, and 25 years 80% output power promise
- Solar pump inverter & water pump 1 year warranty
- Mounting bracket 10 years warranty
- Others accessories 1-5 years warranty
- TUV & RoHS & CE certificate high quality solar water pump system
15KW solar water pump system
| Model | Motor power | Flow rate(m3/h) / Head lift(m) | Outlet (inch) | Pump Diameter (mm) | |||
| SJ17-26 | 15KW | 8m3/h/256m | 12m3/h/238m | 17m3/h/189m | 22m3/h/122m | 2.5" | 133mm |
| SJ30-17 | 15KW | 12m3/h/179m | 20m3/h/158m | 30m3/h/125m | 38m3/h/77m | 3" | 133mm |
| SJ42-10 | 15KW | 20m3/h/122m | 30m3/h/108m | 42m3/h/89m | 60m3/h/45m | 3" | 150mm |
| SJ60-9-2 | 15KW | 30m3/h/102m | 50m3/h/77m | 60m3/h/64m | 75m3/h/36m | 4" | 150mm |
| SJ75-4 | 15KW | 50m3/h/66.5m | 70m3/h/55.5m | 80m3/h/48m | 100m3/h/30m | 5" | 197mm |
| SJ120-2-2 | 15KW | 80m3/h/32m | 100m3/h/29m | 120m3/h/27.5m | 150m3/h/24m | 6" | 230mm |
18.5KW (25HP) submersible deep well solar water pump system for agriculture irrigation
| Model | Motor power | Flow rate(m3/h) / Head lift(m) | Outlet (inch) | Pump Diameter (mm) | |||
| SJ30-21 | 18.5KW | 12m3/h/221m | 20m3/h/196m | 30m3/h/155m | 38m3/h/95m | 3" | 133mm |
| SJ42-12 | 18.5KW | 20m3/h/146m | 40m3/h/112m | 50m3/h/87m | 60m3/h/54m | 3" | 150mm |
| SJ60-10 | 18.5KW | 30m3/h/121m | 50m3/h/93m | 60m3/h/77m | 75m3/h/45m | 4" | 150mm |
| SJ75-5 | 18.5KW | 50m3/h/83m | 70m3/h/70m | 90m3/h/51m | 100m3/h/38m | 5" | 197mm |
| SJ95-4 | 18.5KW | 60m3/h/65m | 80m3/h/54m | 100m3/h/36m | 120m3/h/10.5m | 5" | 197mm |
| SJ120-2-1 | 18.5KW | 90m3/h/37.5m | 110m3/h/35.5m | 130m3/h/32.5m | 150m3/h/28m | 6" | 230mm |
| SJ150-2-2 | 18.5KW | 100m3/h/32m | 120m3/h/31m | 150m3/h/28.5m | 180m3/h/25m | 6" | 230mm |
More solar water pump system solution, customized service is available after know requirements as below
Installation site: Country: ____________ City: ___________
Water source: Borehole (Diameter: _______mm)
Lake, river, reservoir, dam
Average daily water demand: __________ m3

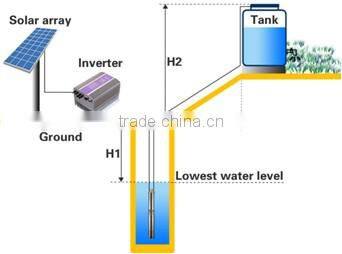

H1 (lift from lowest water level to ground): __________m
H2 (tank height and extra lift if any): ________m
L (Horizontal distance for water transport): _______m
Why cooperate with us?
- Yaochuang energy produce solar panel & solar pump inverter
- Professionally integrate whole set solar water pump system, mature solar power system design

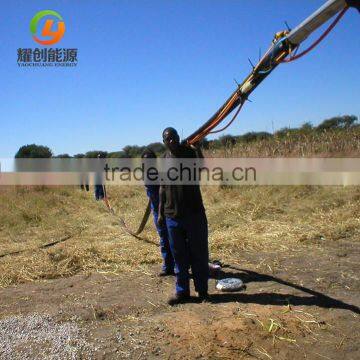

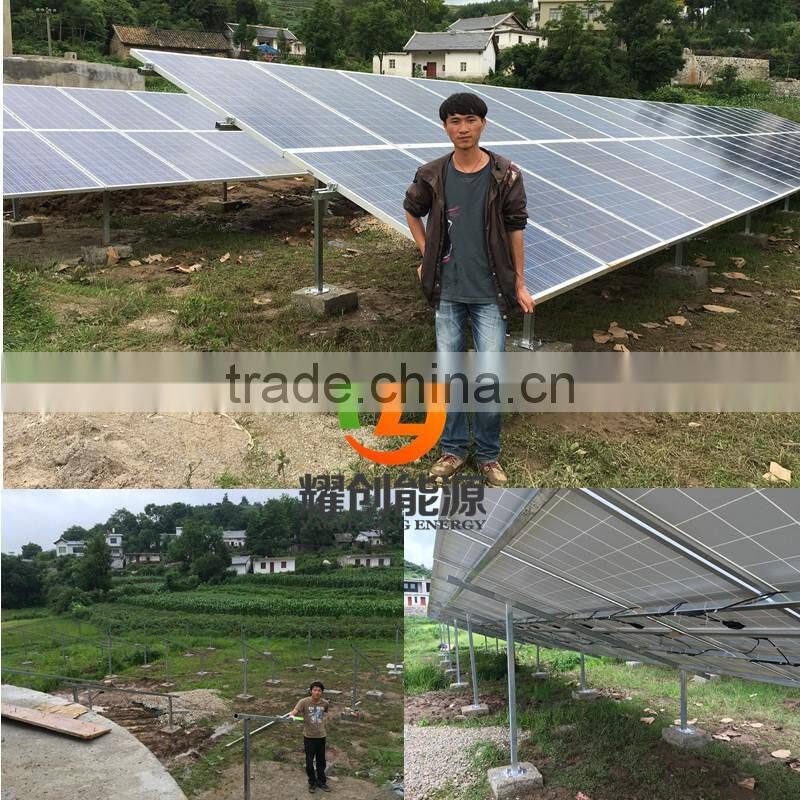

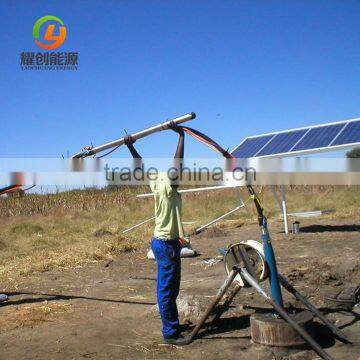

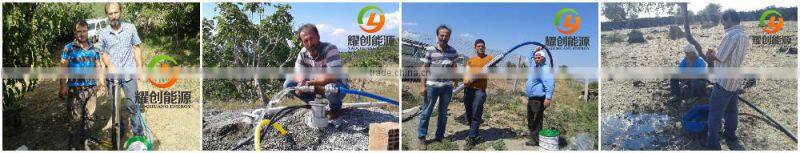

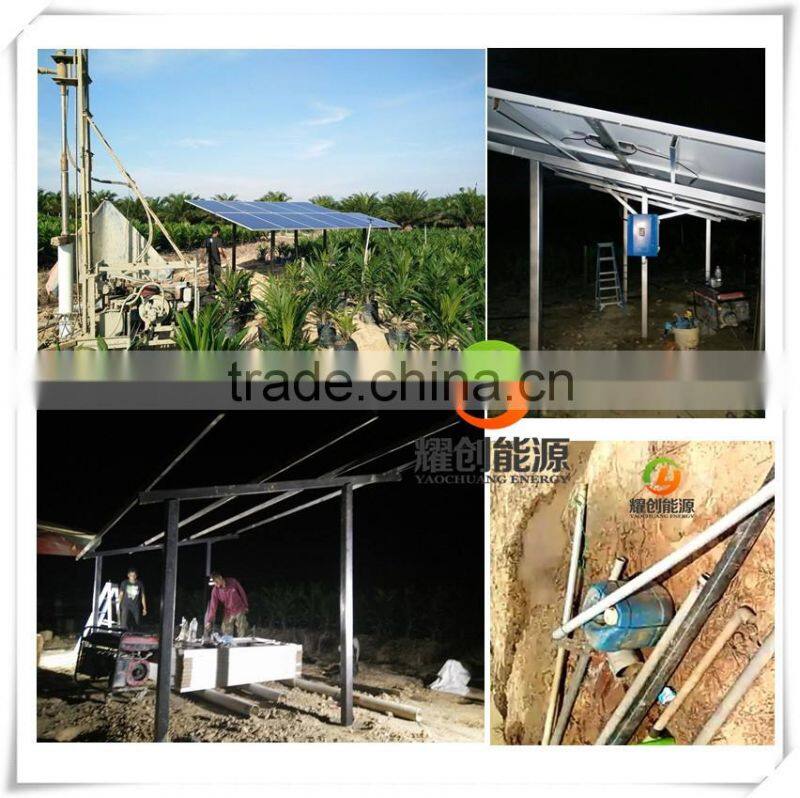

- Rich experience on project installation
- Thorough after sale service
- Oversea sale team makes cooperation more convinient
