Home > Products > solar water pump > solar belt drive water pump
solar belt drive water pump
USD $1 - $2,000
/ Set
100 Sets(Min.Order)
- 10000 Set / Sets per Month
- SHANGHAI
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | YUAO | |
| Model Number | SHP | Theory | Electromagnetic Pump | |
| Structure | Single-stage Pump | Usage | Water | |
| Power | Electric | Standard or Nonstandard | Standard | |
| Fuel | Other, electric | Pressure | Low Pressure | |
| Application | Submersible |
Product Description

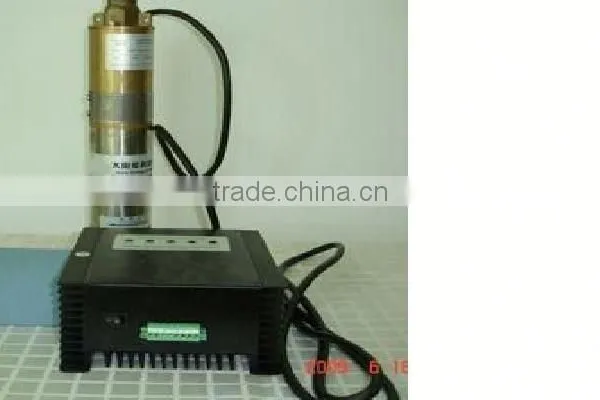

solar belt drive water pump
1.12/24/36/48/110 DC motor water pump
2.20-70 M lift
lar wind electric power
solar water control ,solar system control,solar product control widly use in different work condtioning
| Products Namepv water pump | ||||||||
| Type | SHP0.76/30-24/180 | SHP1.38/45-36/320 | ||||||
| Operation Voltage | 24V DC | 36V DC | ||||||
| Power of Solar cell | 180W | 320W | ||||||
| Max.flow rate | 0.76M3/H | 1.38 M3/H | ||||||
| Max.head | 30M | 45M | ||||||
| Q=M3/H | 0.76-0.68-0.57-0.4 | 1.38-1.16-1.00-0.55 | ||||||
| LIFTH=M | 1-10-20-30 | 1-20-30-45 | ||||||
| water Outlet Caliber | 20mm | 20mm | ||||||
| Pumps diameter | 76mm | 76mm | ||||||
| Pumps length | 370mm | 370mm | ||||||
| N. W | 7.00Kg | 7.00Kg | ||||||
| Protection level | IP68 | IP68 | ||||||
| Carton size | 600×200×160mm | 600×200×160mm | ||||||
| 20GP LOADING | 1100sets | 1100sets | ||||||
| Sample unit price | US$466 | US$502 | ||||||
| MOQ 10 sets unit price | US$405 | US$436 | ||||||
| MOQ 50 sets unit price | US$393 | US$423 | ||||||
| MOQ100 sets unit price | US$385 | US$415 | ||||||
| Type | SHP2.74/100-110/1440 | SHP4.56/80-110/1440 | ||||||
| Operation Voltage | 110V DC | 110V DC | ||||||
| Power of Solar cell | 1440W | 1440W | ||||||
| Max.flow rate | 2.74 M3/H | 4.56 M3/H | ||||||
| Max.head | 100M | 80M | ||||||
| water flowQ=M3/H | 2.74-2.12-1.72-0.67 | 4.56-3.32-2.42-0.87 | ||||||
| LIFTH=M | 1-50-70-100 | 1-40-60-80 | ||||||
| water Outlet Caliber | 25mm | 30mm | ||||||
| Pumps diameter | 94mm | 94mm | ||||||
| Pumps length | 760mm | 760mm | ||||||
| N. W | 11.5Kg | 11.5Kg | ||||||
| Protection level | IP68 | IP68 | ||||||
| Carton size | 890×250×210mm | 890×250×210mm | ||||||
| 20GP LOADING | 460sets | 460sets | ||||||
| Sample unit price | US$845 | US$845 | ||||||
| MOQ 10 sets unit price | US$734 | US$734 | ||||||
| MOQ 50 sets unit price | US$713 | US$713 | ||||||
| MOQ100 sets unit price | US$698 | US$698 | ||||||
| Type | SHP6.11/50-110/1440 | SHP7.37/35-110/1440 | ||||||
| Operation Voltage | 110V DC | 110V DC | ||||||
| Power of Solar celL | 1440W | 1440W | ||||||
| Max.flow rate | 6.11 M3/H | 7.37 M3/H | ||||||
| Max.head | 50M | 35M | ||||||
| water flowQ=M3/H | 6.11-4.91-3.60-1.98 | 7.37-6.62-4.23-2.72 | ||||||
| LIFTH=M | 1-20-40-50 | 1-10-28-35 | ||||||
| water Outlet Caliber | 40mm | 40mm | ||||||
| Pumps diameter | 94mm | 94mm | ||||||
| Pumps length | 760mm | 760mm | ||||||
| Weight | 11.5Kg | 11.5Kg | ||||||
| Protection level | IP68 | IP68 | ||||||
| Carton size | 890×250×210mm | 890×250×210mm | ||||||
| 20GP LOADING | 460sets | 460sets | ||||||
| Sample unit price | $845 | $845 | ||||||
| MOQ 10 sets unit price | $735 | $735 | ||||||
| MOQ 50 sets unit price | $713 | $713 | ||||||
| MOQ100 sets unit price | $698 | $698 | ||||||
| Pumps length | 600mm | 600mm | ||||||
| Protection level | IP68 | IP68 | ||||||
| N.W | 9.7Kg | 9.7Kg | ||||||
| Carton size | 890×250×210mm | 890×250×210mm | ||||||
| 20GP LOADING | 520sets | 520sets | ||||||
| Sample unit price | US$573 | US$591 | ||||||
| MOQ 10 sets unit price | US$498 | US$514 | ||||||
| MOQ 50 sets unit price | US$483 | US$498 | ||||||
| MOQ100 sets unit price | US$473 | US$408 | ||||||
| Pumps length | 600mm | |||||||
| Protection level | IP68 | |||||||
| N.W | 9.7Kg | |||||||
| Carton size | 890×250×210mm | |||||||
| 20GP LOADING | 520sets | |||||||
| Sample unit price | US$609 | |||||||
| MOQ 10 sets unit price | US$530 | |||||||
| MOQ 50 sets unit price | US$514 | |||||||
| MOQ100 sets unit price | US$503 | |||||||
...
