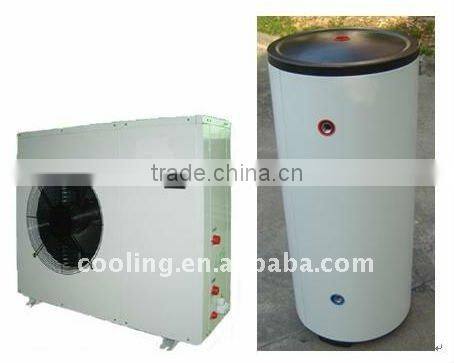

Heat Pump, Air to Air Heat Pump, Inverter Heater

US$ 1 - 3,000 MOQ: 50 Sets

Key Specifications

Storage / Tankless:

Storage

Installation:

Freestanding

Certification:

Shanghai Yuao Refrigerant Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Storage / Tankless Storage

Installation Freestanding

Certification CB

Housing Material Plastic

Capacity 10500

Voltage (V) 230

Place of Origin Shanghai, China

Model Number YAHP-18K,YAHP-24K,YAHP-24K

heat pump, air to air heat pump, air heat pump water heater,air souce heat pump, inverter heater ,DC inverter heat pump,heater

Technical Data		YAHP-18K			YAHP-24K			YAHP-36K
Cooling Capacity	W	3,100	5,200	6,300	3,500	7,000	8,000	5,000	9,600	10,500
Heating Capacity	W	3,200	5,800	6,800	3,600	7,500	8,400	5,200	10,200	11,200
Power Input (Cooling)	W	1,600			2,320			3,150
Power Input (Heating)	W	1,680			2,200			2,950
Voltage		230/1/50			230/1/50			230/1/50
EER	W/W	3.25			3.02			3.05
Energy Class (Cooling)		A			B			B
COP	W/W	3.45			3.41			3.46
Energy Class (Heating)		A			B			B
Indoor Unit
Static Pressure	Pa	40			50			60
Airflow	m3/h	810/750/680/630			1100/1020/930/840			1690/1580/1450/1330
Sound Level	dB(A)	39/37/35/33			40/38/36/34			43/41/39/36
Dimensions (WxHxD)	mm	780x240x560			780x240x560			932x285x662
Net Weight	Kgs	31			34			41
Outdoor Unit
Dimensions (WxHxD)	mm	850x580x290			840x680x310			875x850x310
Sound Level	dB(A)	51			52			56
Compressor Type		Rotativo/Rotary
Net Weight	Kgs	43			55			70
ø Liquid Pipe	Inch	1/4			3/8			3/8
ø Gas Pipe	Inch	1/2			5/8			5/8
Max. Piping Lenght	m	25			50			50
Max. Height Diff.	m	15			30			30

Refrigerant charge is valid for 7m (model 18K), and 10m for the rest.
Capacity and electrical data are given under the following conditions:
Cooling: 27ºC(db) y 19ºC(wb) indoor and 35ºC(db) outdoor.
Heating: 20º(db) indoor and 7ºC(db) y 6ºC(wb)
