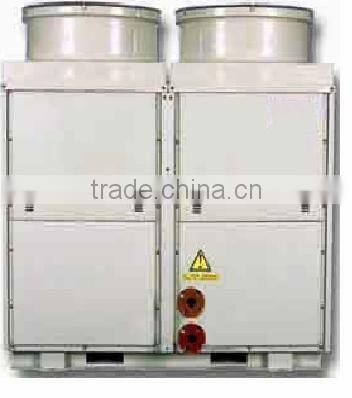

Commercial Air Source Water Heater ,water Heater,air Source Water Heater
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Air Source Heat Pump
Storage / Tankless:
Storage
Place of Origin:
Shanghai, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Commercial Usage Air Source HP Water Heater,instant Water Heater,electric Hot Water HeaterUS$ 1,200 - 13,000MOQ: 1 Set -
Air Source Heat Pump Water HeaterUS$ 350 - 450MOQ: 10 Sets
-
Air Source Heat Pump Water HeaterUS$ 350 - 450MOQ: 10 Sets
-
Water HeaterUS$ 350 - 450MOQ: 10 Sets
-
Heat Pump Water HeaterUS$ 800 - 2,000MOQ: 50 Sets
Type
Air Source Heat Pump
Storage / Tankless
Storage
Place of Origin
Shanghai, China
Brand Name
YUAO
Commercial Air Source Water heater ,water heater,air source water heater
| Commercial Usage Air Source HP Water heater | |||||||||||
| Direct Heat SERIES | |||||||||||
| Main Machine | Model Number | KRS018/SZ | KRS035/SZ | ||||||||
| Heating Capacity (Kw) | 18 | 35 | |||||||||
| PowerV/PH/HZ | 380V/3ph/50HZ | 380V/3ph/50HZ | |||||||||
| Rated input power (Kw) | 4.5 | 8 | |||||||||
| Max input power(Kw) | 7.2 | 13.5 | |||||||||
| Net Weight (Kg) | 130 | 250 | |||||||||
| Noise | 59 | 66 | |||||||||
| Output water pipe (mm) | DN32 | DN32 | |||||||||
| Input Water pipe (mm) | DN32 | DN32 | |||||||||
| Product Dimensions | 640×690×1540 | 1280×690×1540 | |||||||||
| Package dimension | 810×860×1670 | 1400x860x1670 | |||||||||
| COP | 4.0 | 4.0 | |||||||||
| Anbient Tmp.range() | -10 50 | ||||||||||
| Water output capacity(L/h) | 400 | 800 | |||||||||
| Water Flow Rate(L/H) | 400 | 800 | |||||||||
| Compressor | Type | Sanyo/Scroll | Sanyo/Scroll | ||||||||
| Refrigerant | R22/R417a/ 3.03 | R22/R417a/3.7x2 | |||||||||
| Input power | 4.1 | 4.1x2 | |||||||||
| Additional | Rated running condition: Ambient temperature DB 20, Water input at 15, water temperature rising rate at 40 | ||||||||||
| Water output capacity meas the water supply can make water temperature go up from 20 to 55 within 1 hour | |||||||||||
| U Series units are DX expansion type, which there are 20 meters copper capillary in side of water tank as Heat Exchanger | |||||||||||
| V Series Unit are Unitary type,With Coaxial Coil Heat Exchangers in side of the main machine, the hot water comes from main machine directly. | |||||||||||
| Heat Exchanger for KRS012, KRS018/S(Z),is Plate-type type Exchanger, Exhanger of KRS072/S, KRS144/S is Shell-and-tube type | |||||||||||
| KRS018/S(Z) availabe with Coaxial Coil Heat Exchangers, KRS035/S(Z) is used Coaxial Coil Heat Exchangers( Or Pot heat exchanger). | |||||||||||
| V Series unit, additional PTC electric heater is available | |||||||||||
| Temperature adjusted range of U Series, V Series, and KRS012 is from 40 to 60, for other commercial usage unit is from 20 to 60 | |||||||||||
| Direct Heat Series mean that we can get hot water at setted temperature level directly, once water temperature comes down, it would stop supply water | |||||||||||
| All the FOB prices are for units with R22 refrigerant, please plus Kg (refrigerant charge rate)*USD12 to obtain price for R417a Unit | |||||||||||
...
