Product Details
Size: | Small | Type: | Single-Span Agricultural Greenhouses | Cover Material: | Other, metal |
Model Number: | YASR-D008w | Place of Origin: | Shanghai, China | Brand Name: | YUAO |
Product Description

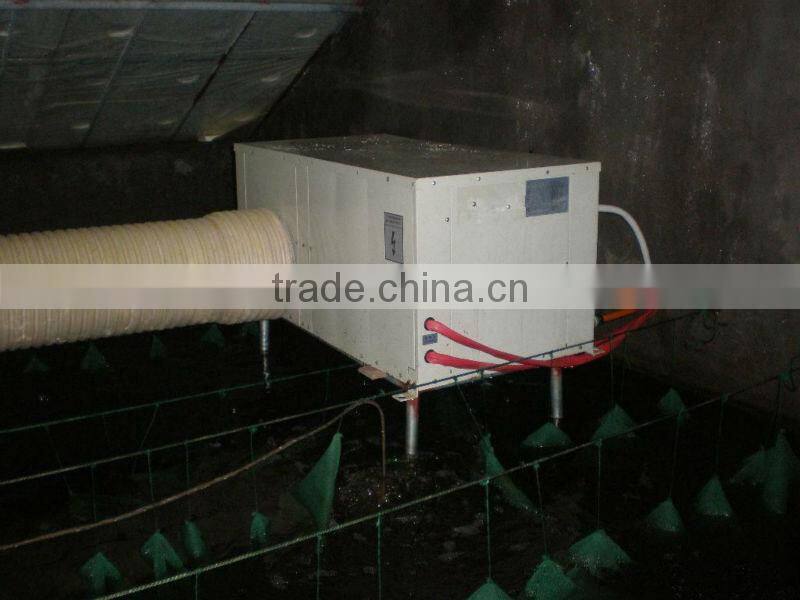

greenhouses air cooler
Greenhouses special air conditioning unit is specialized in livestock and poultry breeding with air conditioning and adapt to all kinds of industry scale cultivation.The equipment is one of the biggest advantages is the winter insulation can also be ventilated take a breath, completely solve the conflict between livestock and poultry in winter insulation and ventilation.Same conditions than conventional heating and hot blast stove save 40% - 40% of the cost,Is a concentration of cooling, heating, ventilation and store wet and professional farming equipment,Significantly increase the rate of the factory director of livestock and poultry products, achieve high benefit.
Greenhouses special air conditioning unit is directly instead of furnace, heating, hot blast stove traditional heating method such as the professionalism of the unit.Solved the furnace combustion oxygen consumption, carbon monoxide poisoning, the air is not fresh, large labor intensity, energy consumption, etc. The disadvantage of traditional heating.
The working principle of greenhouse dedicated water source heat pump air conditioning unit
water sources (ground source) heat pump greenhouse special air conditioning unit from the unit by concentric tube heat exchanger in the water absorption of heat, again by water sources (ground source) heat pump units driven compressor and heat exchanger focus your energy,And at a higher temperature released into the indoor, make the air temperature inside the greenhouse
The groundwater and soil in winter shallow temperature is 16 ~ 18 degree Celsius ,Large capacity of surface water temperature is 6 ~ 14 degree Celsius .compare the ambient air temperature is high, so the heat pump heating cycle evaporation temperature increase, improve compression ratio of the small and moderate coefficient, unit operation stability.
model NO | YASR-D008w | YASR-D010w | YASR-D016w | YASR-D017w | YASR-D019w | YASR-D021w | ||
ratedcooling capacity | kW | 2.1 | 2.7 | 3.6 | 4.3 | 5.7 | 6.4 | |
rated heating capacity | kW | 2.5 | 3.2 | 4.6 | 5.5 | 6.8 | 7.3 | |
power supply | 220v/1ph/50Hz | |||||||
cooling inputpower | kW | 0.49 | 0.74 | 0.93 | 1.1 | 1.4 | 1.7 | |
heating inputpower | kW | 0.5 | 0.8 | 1.1 | 1.2 | 1.6 | 1.8 | |
cooling rated current | A | 2.3 | 3.3 | 4.3 | 5.1 | 6.6 | 7.9 | |
heating rated current | A | 2.5 | 3.7 | 5.1 | 5.5 | 7.4 | 8.3 | |
refrigerant | R22 | |||||||
compressor type /qty | rotor/1 | |||||||
charge volume | kg | 0.43 | 0.4 | 0.57 | 0.7 | 0.7 | 0.8 | |
dimension | mm | 815*573*380 | 922*597*432 | |||||
weight | kg | 58 | 59 | 60 | 61 | 70 | 72 | |
nosie level | dB(A) | 41 | 43 | 44 | 45 | 46 | 46 | |
circle air volume | m3/h | 450 | 510 | 650 | 730 | 1020 | 1200 | |
static pressure | pa | 12 | 15 | 30 | 30 | 30 | 30 | |
water flow | m3/h | 0.38 | 0.58 | 0.76 | 0.95 | 1.06 | 1.14 | |
water pressure drop | kPa | 10 | 10 | 19 | 19 | 31 | 43.3 | |
water inlet/outlet pipe size | in | R3/4" | ||||||
condensate water pipe (outside dia) | in | 1/2" | ||||||
air outlet size | hight | mm | 180 | 210 | ||||
width | mm | 183 | 235 |
model NO | YASR-D028w | YASR-D033w | YASR-D040w | YASR-D047w | YASR-D061w | YASR-D021w | ||
ratedcooling capacity | kW | 8.4 | 9.2 | 10 | 12.2 | 15.2 | 17.7 | |
rated heating capacity | kW | 9.6 | 11.7 | 12.2 | 14.5 | 18 | 21.1 | |
power supply | 220v/1ph/50Hz | 380v/3ph/50Hz | ||||||
cooling inputpower | kW | 2.1 | 2.4 | 2.5 | 3.2 | 4.1 | 4.6 | |
heating inputpower | kW | 2.2 | 2.6 | 2.7 | 3.1 | 4 | 4.9 | |
cooling rated current | A | 9.8 | 11.3 | 11.7 | 5.8 | 7.1 | 7.6 | |
heating rated current | A | 10.3 | 11.9 | 12.3 | 5.7 | 7 | 8.1 | |
refrigerant | R22 | |||||||
compressor type /qty | rotor/1 | scroll/1 | ||||||
charge volume | kg | 1.05 | 1.25 | 1.3 | 1.85 | 1.7 | 2 | |
dimension | mm | 1096*640*504 | 1347*790*534 | |||||
weight | kg | 102 | 104 | 105 | 142 | 144 | 145 | |
nosie level | dB(A) | 47 | 47 | 47 | 49 | 50 | 50 | |
circle air volume | m3/h | 1600 | 1900 | 2000 | 2400 | 3200 | 3300 | |
static pressure | pa | 50 | 50 | 50 | 80 | 80 | 80 | |
water flow | m3/h | 1.82 | 1.91 | 2.11 | 2.6 | 3.4 | 3.92 | |
water pressure drop | kPa | 37 | 26 | 38 | 50 | 32 | 41 | |
water inlet/outlet pipe size | in | R3/4" | R1" | |||||
condensate water pipe (outside dia) | In | 5/8" | R3/4" | |||||
air outlet size | hight | mm | 264 | 287 | 291 | |||
width | mm | 235 | 272 | 333 |
