Specifications
1. Carbon Content: >98.52. Bulk Density: 0.01-0.12
3. Thermal Conductivity:0.08-0.15
4. Tensile Strength:0.13Mpa

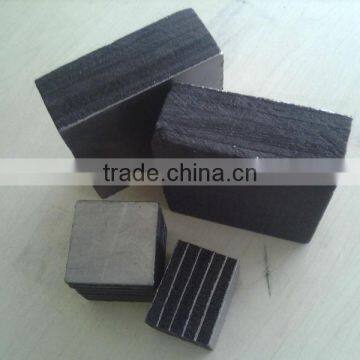

Rayon-based carbon felt and graphite felt is light in weigh, soft in texture, high in carbon content and has the characteristics of high temperature resistance, ablation resistance, mainly used as the ablative resisting material in aerospace industry, as the heat insulation material in ultra-high-temperature vacuum metallurgy equipments, and also can be used as the high performance far-infrared heat element.
Property |
JX-RCF |
JX-RGF |
||
Carbon Content |
% |
≥98.5 |
≥99 |
|
Bulk Density |
g/m3 |
0.10-0.12 |
0.08-0.10 |
|
Thermal Conductivity |
1150ºC W/(m.k) |
0.08-0.15 |
0.06-0.14 |
|
Tensile Strength |
Mpa |
0.13 |
0.1 |
|
Crushing Stress at 10% Compression |
N/cm2 |
6-10 |
5-8 |
|
Ash |
% |
≤0.05 |
≤0.005 |
|
Processing Temperature |
ºC |
1200 |
2500 |
|
|
Operating Temperature ºC |
In the air |
≤ 400 |
≤400 |
|
Vacuum |
≥1500 |
≥2200 |
||
In the Inert atmosphere |
1800 |
≥2500 |
||
Dimension |
Thick mm |
3,5,8,10 |
||
Width mm |
1000-1300 |
|||
Length m |
16-18 |
|||
Package |
|
Plastic, carton, woven bag. |
||
