Help Center10mm Carbon Felt Operating Temperature:in the Air<400 Vacuum:>1500 In the Inert:>1800
Related Products
-
PAN Based High Temperature Resistance Vacuum Furnace Carbon FeltUS$ 50 - 100MOQ: 1 Roll -
Heat Insulation FeltUS$ 0.5 - 5MOQ: 100 Meters
-
Rigidized Graphite Felt (Graphite Foil Based)NegotiableMOQ: 1 Piece
-
PAN-based Carbon Felt Thickness:3,5,8,10mm J&X-PCFNegotiableMOQ: 1 Roll
-
PAN-based Graphite Felt Thickness:3,5,8,10mmNegotiableMOQ: 1 Roll
Specifications
1.Processing Temperature:12002.Tensile strength:0.15
3.Carbon content:98.5%
4.Crushing stress at 10% compression:8-12N/cm2

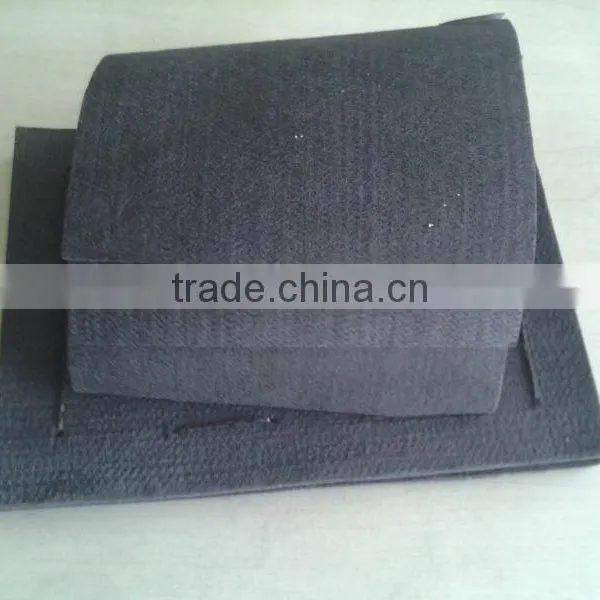

PAN-based Carbon Felt ( JX-PCF)
PAN(Polyacrylonitrile)-based carbon felt is light in weight, small in specific heat, soft in texture, easy in operation, excellent in heat insulation, and 90% in the carbon felt is interstice, so it’s extremely superior used in the vacuum and inert atmosphere, especially in intermittent vacuum furnace as the excellent heat insulation material to save great energy.
PAN-based Graphite Felt (JX-PGF)
PAN(Polyacrylonitrile)-based graphite felt is made of the high quality PAN-based carbon felt by the process of high temperature graphitization treatment. It has the characteristics of light weight, good flexibility, high carbon content, low thermal conductivity, high temperature resistance, corrosion resistant and the stable shape. It is the superior heat insulation material in polysilicon and monocrystal silicon furnace, and it can also be used as the corrosion resisting filtering material.
Property |
JX-PCF |
JX-PGF |
||
Carbon content |
% |
≥98.5 |
≥99 |
|
Bulk density |
g/m3 |
0.14-0.17 |
0.12-0.14 |
|
Thermal conductivity |
1150ºC W/(m.k) |
0.12-0.18 |
0.08-0.14 |
|
Tensile strength |
Mpa |
0.15 |
0.14 |
|
Crushing stress at 10% compression |
N/cm2 |
8-12 |
8-10 |
|
Ash |
% |
≤0.05 |
≤0.005 |
|
Processing temperature |
ºC |
1200 |
2500 |
|
|
Operating temperature ºC |
In the air |
≤400 |
≤400 |
|
Vacuum |
≥1500 |
≥2200 |
||
In the Inert atmosphere |
≥1800 |
≥2500 |
||
Dimension |
Thick mm |
3,5,8,10 |
||
Width mm |
1000-1300 (commonly 1200mm) |
|||
Length m |
9-12 (commonly 10meters/roll) |
|||
Package |
|
Plastic, carton, woven bag. |
||
