Carbon Fiber Fabric

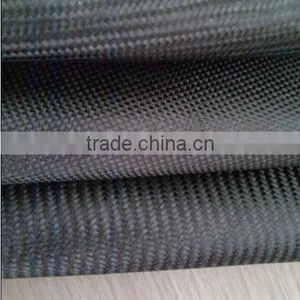

Carbon Fiber Fabric thumbnail-1
Carbon Fiber Fabric thumbnail-2
Carbon Fiber Fabric thumbnail-3
Carbon Fiber Fabric thumbnail-4

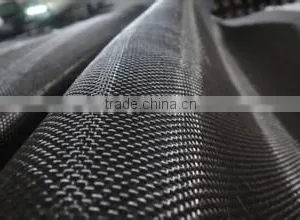

Carbon Fiber Fabric thumbnail-5

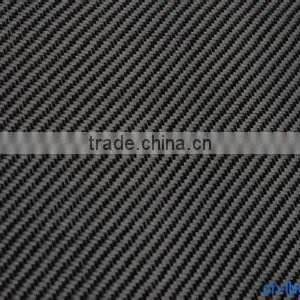

Carbon Fiber Fabric thumbnail-6
Carbon Fiber Fabric photo-1
Carbon Fiber Fabric photo-2

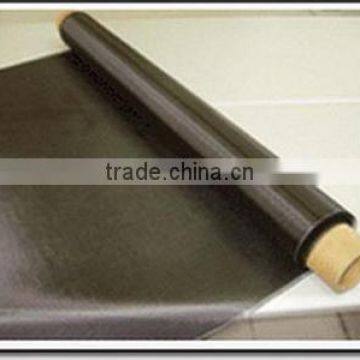

Carbon Fiber Fabric photo-3
Carbon Fiber Fabric photo-4

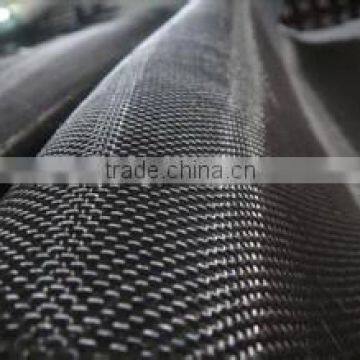

Carbon Fiber Fabric photo-5
Carbon Fiber Fabric photo-6
US$ 0.1 - 30 MOQ: 100 Square Meters
Key Specifications
Get Latest Price
Supply Type:
Make-to-Order
Material:
100% Carbon Fiber
Style:
Plain
Contact Supplier Request Quote Chat Now
Heilongjiang J & X Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Supply Type Make-to-Order
Material 100% Carbon Fiber
Style Plain
Feature Abrasion-Resistant
Use Bag, Industry, Shoes, Other, Bag, Industry, Shoes, decoration
Weight 200g 300g
Thickness according requirement
Place of Origin Heilongjiang, China
Brand Name J&X

Product name: 3k carbon fiber cloth



 Specification for the JX-CFWC



JX Product No.

Weaving Method

Carbon fiber

Warp & Weft yarn count

Size





Weight (g/m2)

Warp

Weft

Width

Thickness

JX-T300-1K-P95

plain

1K

1K

7*7

100

0.15

95

JX-T300-1K-P120

plain

1K

1K

9*9

100-127

0.16

120

JX-T300-1K-T120

twill

1K

1K

9*9

100-127

0.16

120

JX-T300-1K-T140

twill

1K

1K

10.3*10.3

100-150

0.17

140

JX-T300-1K-T150

twill

1K

1K

11*11

100-150

0.18

150

JX-T300-3K-P160

Single track

3K

Ec511

8*4

100-150

0.125

160

JX-T300-3K-P160

plain

3K

3K

4*4

100-150

0.20

160

JX-T300-3K-T160

twill

3K

3K

4*4

100-150

0.20

160

JX-T300-3K-4H185

4H satin weave

3K

3K

4.7*4.7

100-150

0.22

185

JX-T300-3K-4H193

4H satin weave

3K

3K

4.8*4.8

100-150

0.23

193

JX-T300-3K-T196

twill

3K

3K

4.9*4.9

100-150

0.25

196

JX-T300-3K-P196

plain

3K

3K

4.9*4.9

100-150

0.25

196

JX-T300-3K-P200

plain

3K

3K

5*5

100-150

0.25

200

JX-T300-3K-T200

twill

3K

3K

5*5

100-150

0.25

200

JX-T300-3K-P210

plain

3K

3K

5.2*5.2

100-150

0.25

210

JX-T300-3K-P220

plain

3K

3K

5.5*5.5

100-150

0.26

220

JX-T300-3K-T220

twill

3K

3K

5.5*5.5

100-150

0.25

220

JX-T300-3K-4H220

4H satin weave

3K

3K

5.5*5.5

100-150

0.26

220

JX-T300-3K-P240

plain

3K

3K

6*6

100-150

0.33

240

JX-T300-3K-T240

twill

3K

3K

6*6

100-150

0.33

240

JX-T300-3K-P280

plain

3K

3K

7*7

100-150

0.34

280

JX-T300-3K-2T280

2*2 twill

3K

3K

7*7

100-150

0.34

280

JX-T300-3K-4T280

4*4 twill

3K

3K

7*7

100-150

0.34

280

JX-T300-3K-5H280

5H satin weave

3K

3K

7*7

100-150

0.35

280

JX-T300-3K-8H320

8H satin weave

3K

3K

8*8

100-150

0.36

320

JX-T300-3K-8H370

8H satin weave

3K

3K

9.3*9.1

100-150

0.38

370

JX-T300-3K-6K-P280

plain

6K

6K

3.5*3.5

100-150

0.35

280

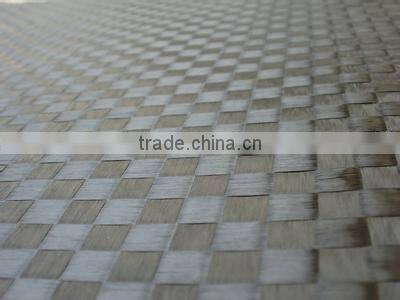

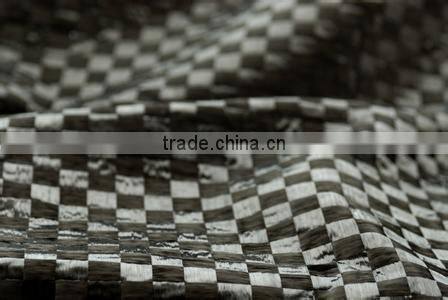

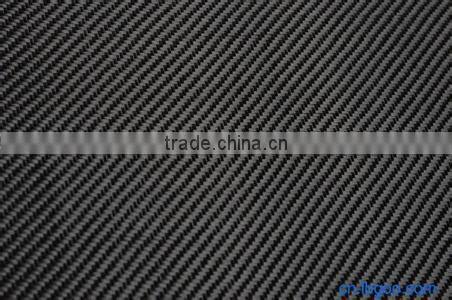

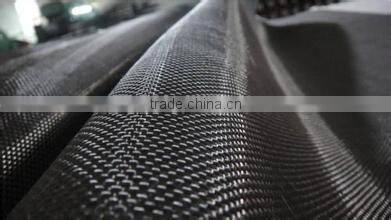

Carbon fiber fabricCarbon fiber fabricCarbon fiber fabricCarbon fiber fabricCarbon fiber fabricCarbon fiber fabric

Export market all over the world

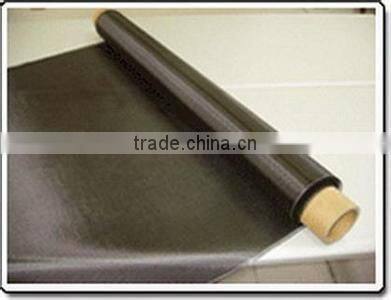

Carbon fiber fabric   Carbon fiber fabric










PAYMENT TERMS:L/C,T/T,WESTERN UNION

MOQ: 100SQUARE METERS

PACKING: CORRUGATED CARTON FOR EXPORT
