Help CenterUp To88% Light Transmission Polycarbonate Roof Skylight
Related Products
-
2.1x 6m 3 mm Thick Transparent Polycarbonate Solid Sheet for SaleNegotiableMOQ: 1 Twenty-Foot Container -
PC Opal Panel, Roof Material,Polycarbonate Flat Solid SheetNegotiableMOQ: 1 Twenty-Foot Container
-
PC Flat Sheet ,new Building Materials 2013,Polycarbonate Solid SheetNegotiableMOQ: 1 Twenty-Foot Container
-
Cheap Polycarbonate Colored Plastic Sheets EmbossedNegotiableMOQ: 500 Square Meters
-
Lightweight Roofing Materials Polycarbonate SheetNegotiableMOQ: 1 Twenty-Foot Container
Specifications
1. Impact resistance2. High Light transmission
3. Weather ability & UV Protection
4. Wide service temperature
PC solid sheet
carries an outstanding transparency nearly same as the glass while the weight is just less than half if it and has high impact strength.
Whats more,It can be processed,cold-bending & hot-molding.THus ,this products has become very popular in both of the constructions & decorations feilds.
Specifications
Article |
Specification |
Color |
Remark |
PC multi-wall sheet |
standard size: 2100*6000mm standard thickiness: 4mm,6mm,8mm,10mm, 12mm,16mm |
Normal color: clear, green,light blue,bule,bronze, milk white
|
1.specil colors acceptable 2.custom-made size acceptable 3.besst zsize for container loading: 2100*6000mm 4.anti-surface available
|
|
PC solic sheet, PC embossed sheet
|
standard width: 1220mm,1560mm
range of thickiness: 1~12mm |
Technical data
No. |
characteristics |
unit |
PC multi-wall sheet |
PC solid sheet |
1 |
(1m,1kg) Falling dart impact |
|
No cracks on surface |
No cracks on surface |
2 |
Tensile yield strength |
Mpa |
> |
> |
3 |
Shore hardness |
|
80.4(A) |
81.2(A) |
4 |
Bending elastic modulus |
Gpa |
2.4 |
2.12 |
5 |
Elongation at break |
% |
65 |
130 |
6 |
Light transmissivity(clear) |
% |
80.2(6mm) |
88(3mm) |
7 |
Service temperature |
°C |
-40°C- +120°C |
- 40°C- +120°C |
8 |
Head deformation temperature (1.8Mpa) |
°C |
134 |
139 |
9 |
Coefficient of linear expansion ( - 30°C) - +30°C |
°C-1 |
6.4*10-5 |
7.23*10-5 |
Project:

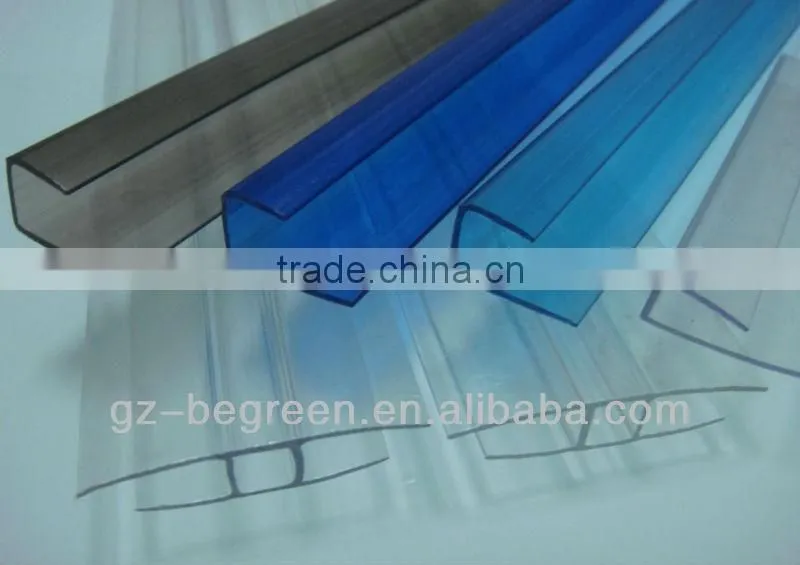

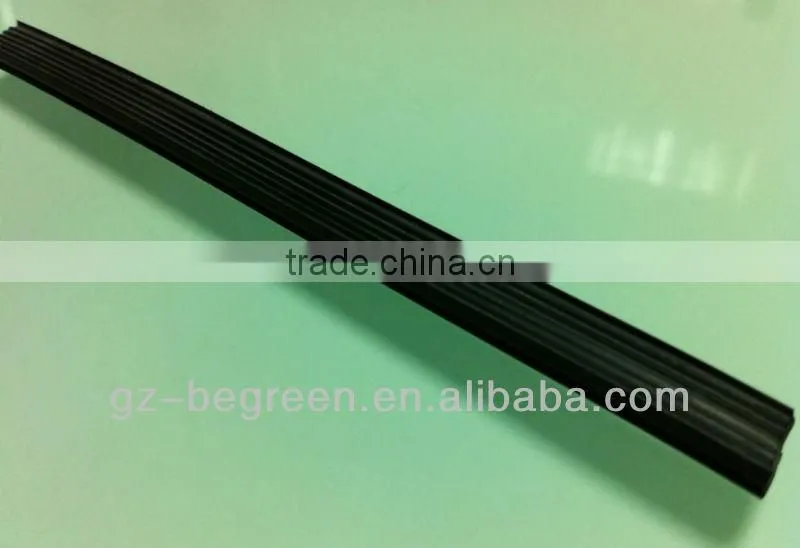

Accessories:
...
