Specifications
1. sheetImpact resistance2. High Light transmission
3. Weather ability & UV Protection
4. Wide service temperature

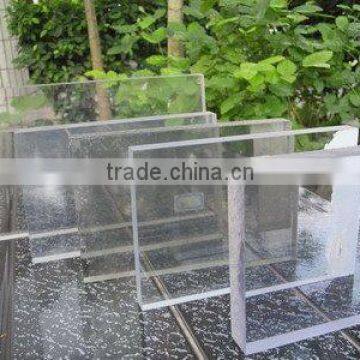

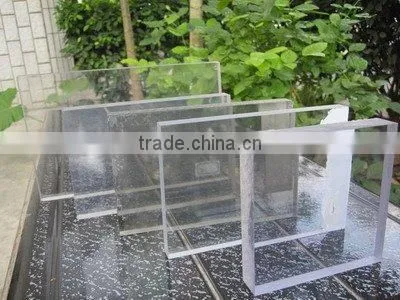

PC solidsheet/ PC sheet
carries an outstanding transparency nearly same as the glass while the weight is just less than half if it and has high impact strength.
Whats more,It can be processed,cold-bending & hot-molding.THus ,this products has become very popular in both of the constructions & decorations feilds.
Specifications
Article | Specification | Color | Remark |
PC multi-wall sheet | standard size: 2100*6000mm standard thickiness: 4mm,6mm,8mm,10mm, 12mm,16mm | Normal color: clear, green,light blue,bule,bronze, milk white
| 1.specil colors acceptable 2.custom-made size acceptable 3.besst zsize for container loading: 2100*6000mm 4.anti-surface available
|
PC solic sheet, PC embossed sheet
| standard width: 1220mm,1560mm
range of thickiness: 1~12mm |
Technical data
No. | characteristics | unit | PC multi-wall sheet | PC solid sheet |
1 | (1m,1kg) Falling dart impact |
| No cracks on surface | No cracks on surface |
2 | Tensile yield strength | Mpa | > | > |
3 | Shore hardness |
| 80.4(A) | 81.2(A) |
4 | Bending elastic modulus | Gpa | 2.4 | 2.12 |
5 | Elongation at break | % | 65 | 130 |
6 | Light transmissivity(clear) | % | 80.2(6mm) | 88(3mm) |
7 | Service temperature |
°C |
-40°C- +120°C |
- 40°C- +120°C |
8 | Head deformation temperature (1.8Mpa) |
°C |
134 |
139 |
9 | Coefficient of linear expansion ( - 30°C) - +30°C |
°C-1 |
6.4*10-5 |
7.23*10-5 |
Applications:
1. Lighting
2. Indoor windows & doors
3. Riot windows & doors,shop show windows
4. Musuem show box
5. Obeserve windows
6. Awning ,Carport
7. Indoor partition
8. Advertising panel
9. Soundbarrier

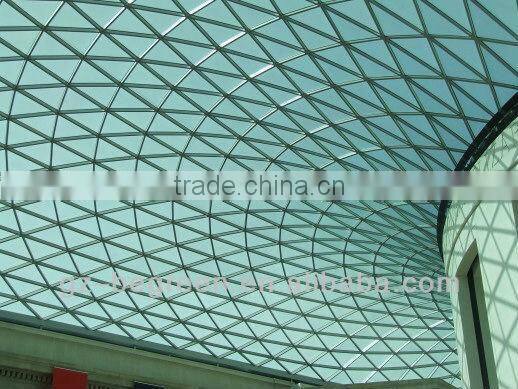

Project:

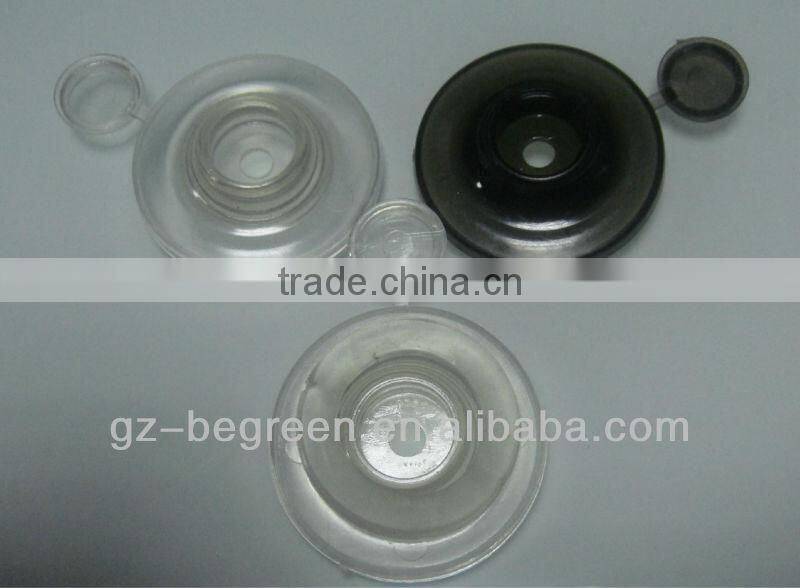

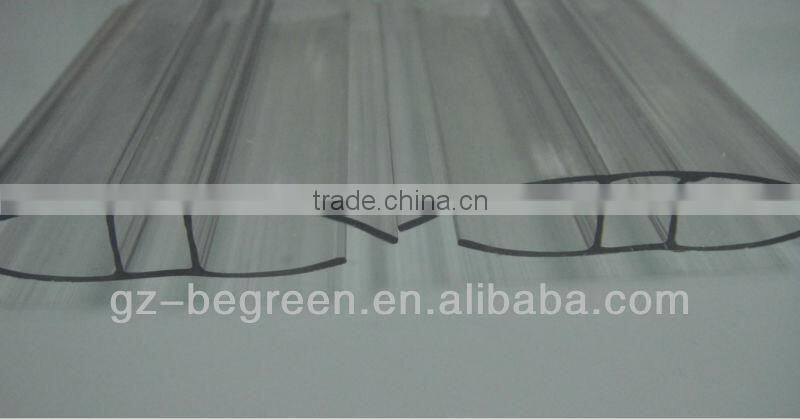

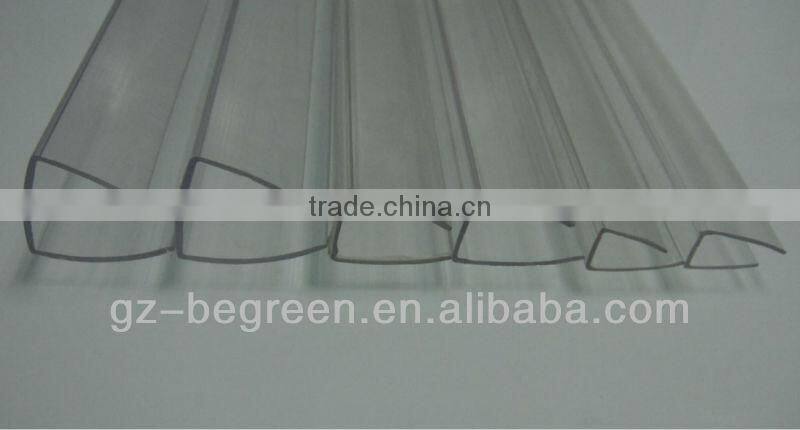

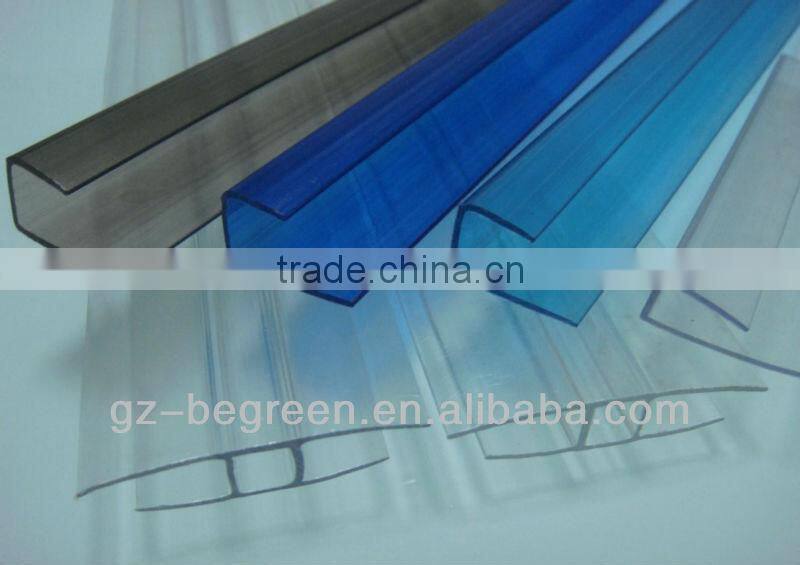

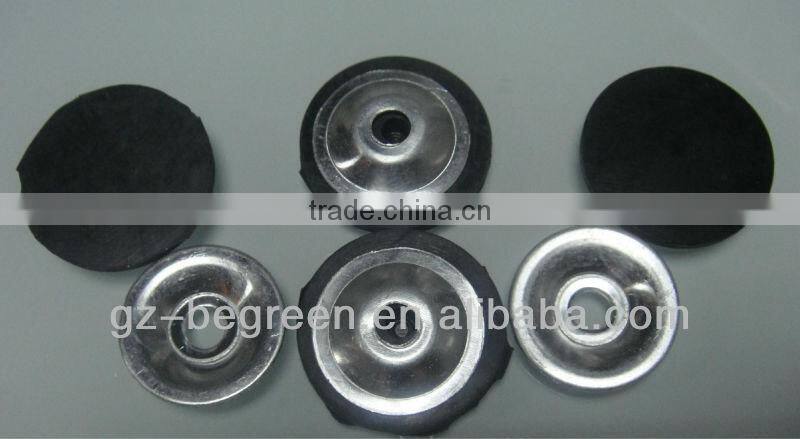

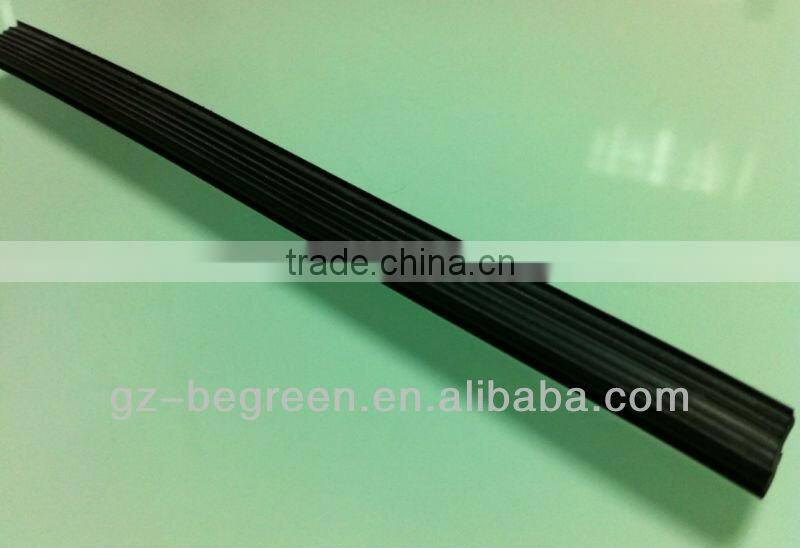

Accessories:
Test:
...
