Specifications
PC solic sheet,a higt strength,high weather resistance raw material,to make solic flat pannel with light weight &high stength.Introction
PC solic sheet a high strength and high weather resistance raw material,to make solid flat panel with light weight &high stength .Therefore, it 's called "unbreakable glass" "blueproof plastic".
The high light transmission of Polycarbonate(PC) solid sheet is similar with glass. It 's not only safer than glassmbut also with widely and freely design.The reason that polycarbonate become more and more popular is based on its light weight,strong anf durable . Pycarbonate ,which can meet the modern aesthetic and funcinonal requirements,is widely used in new architural light project ,road noise barrier,interior decoration,LED energy-saving materials.
Specifications
Article | Specification | Color | Remark | |
PC multi-wall sheet | standard size: 2100*6000mm standard thickiness: 4mm,6mm,8mm,10mm, 12mm,16mm | Normal color: clear, green,light blue,bule,bronze, milk white
| 1.specil colors acceptable
2.custom-made size acceptable
3.besst zsize for container loading: 2100*5800mm
4.anti-surface available
| |
PC solic sheet, PC embossed sheet
| standard width: 1220mm,1560mm
range of thickiness: 1~12mm | |||
Technical data
No. | characteristics | unit | PC multi-wall sheet | PC solid sheet |
1 | (1m,1kg) Falling dart impact |
| No cracks on surface | No cracks on surface |
2 | Tensile yield strength | Mpa | > | > |
3 | Shore hardness |
| 80.4(A) | 81.2(A) |
4 | Bending elastic modulus | Gpa | 2.4 | 2.12 |
5 | Elongation at break | % | 65 | 130 |
6 | Light transmissivity(clear) | % | 80.2(6mm) | 88(3mm) |
7 | Service temperature |
°C |
-40°C- +120°C |
- 40°C- +120°C |
8 | Head deformation temperature (1.8Mpa) |
°C |
134 |
139 |
9 | Coefficient of linear expansion ( - 30°C) - +30°C |
°C-1 |
6.4*10-5 |
7.23*10-5 |

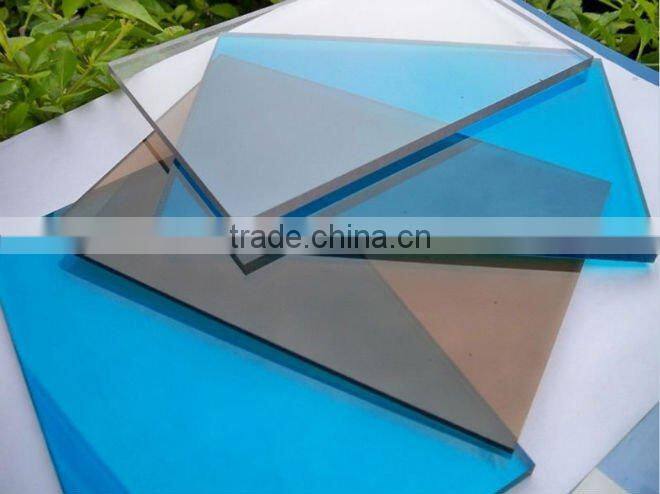

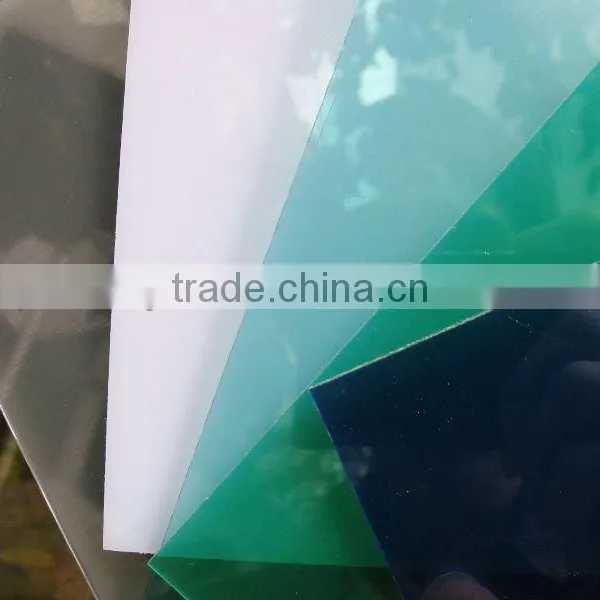

Picture show
