Lean Tube for Logistics Handling,logistics Porterage, Storage and Warehouse

Lean Tube for Logistics Handling,logistics Porterage, Storage and Warehouse photo-1
Lean Tube for Logistics Handling,logistics Porterage, Storage and Warehouse photo-2
Lean Tube for Logistics Handling,logistics Porterage, Storage and Warehouse photo-3

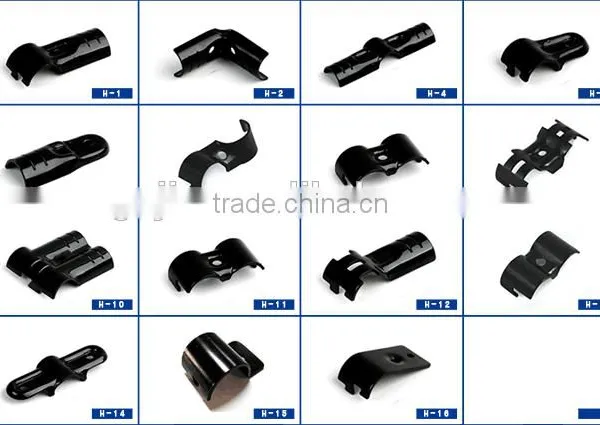

Lean Tube for Logistics Handling,logistics Porterage, Storage and Warehouse photo-4

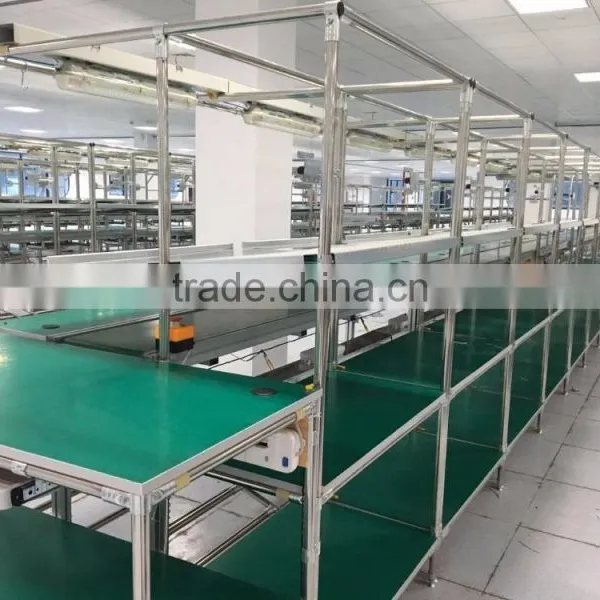

Lean Tube for Logistics Handling,logistics Porterage, Storage and Warehouse photo-5

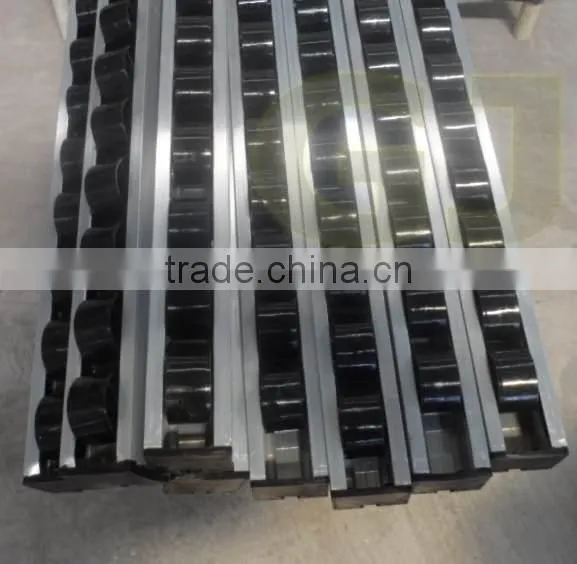

Lean Tube for Logistics Handling,logistics Porterage, Storage and Warehouse photo-6
US$ 0.5 - 0.8 MOQ: 100 Meters
Key Specifications
Get Latest Price
Thickness:
0.8, 2.0
Section Shape:
Round
Outer Diameter:
27.5 - 28 mm, 27.5 - 28 mm
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Thickness 0.8, 2.0
Section Shape Round
Outer Diameter 27.5 - 28 mm, 27.5 - 28 mm
Place of Origin Jiangsu, China
Secondary Or Not Non-secondary
Application Other, Structure Pipe, Structure pipe
Certification API
Surface Treatment Other, Galvanized, Galvanized
Special Pipe Thick Wall Pipe
Alloy Or Not Non-alloy

Product Description





ABS/PE coated pipe used in assembly line





1
Processing:
Cold rolled steel sheet→Clean&Cut→Make it Round→Seamless Welded→Spraying antirust inside→Making the pipe rounder and straighter→Plastic Coated→Cooling→Cooling Again→Cutting into the length→Packaging

2
Material: ABS|PE|ESD plastic coating + iron pipes + anti-rust painting ;

3
Outer diameter: 27.8±0.2mm;
4
Inner diameter: 19.5mm-24mm ;
5
Thickness: 0.7mm/0.8mm/1.0mm/1.2mm/1.5mm/2.0mm ;
6
Colors:
Beige,Ivory,Black,Gray,Green,Red,Blue and so on
(Note:Beige,Ivory and Black are produced in large quantity every day ,for these colors there is no MOQ ;
For other special colors ,there will be a MOQ of 5000m-10000m) ;








 Lean Pipes are steel pipes with plastic resin coating. Adhesives are used to bond the plastic resin to the steel pipe. The inner surface of the pipe is treated with anti-corrosion coating.


Features:

1. Durable and flexible systems

2. Anti-Rust paint is applied to inner surface of the plastic/ABS coated pipe for extended service life

3. In normal temperature condition, the PE/ABS outside cannot be dissolved in any kind of solution. Concentrated sulfuric acid and concentrated nitric acid just can relieve.



4. Variety of colors is available. Customers can select the color freely.



Application
lean tube for logistics handling,logistics porterage, storage and warehouselean tube for logistics handling,logistics porterage, storage and warehouse
lean tube for logistics handling,logistics porterage, storage and warehouse
In what fields lean pipe application?

1.various types of tables or combined into different units of production systems, such as lean production.

dium and light multilayered FIFO fluent shelves, storage shelves, the radical multi-shelf, shipping chute system, special applications shelves.

3.non-GM material distribution, staging vehicles, working, materials vehicles, GM multilayer material loading vehicles, specially designed mobile equipment.

4.station equipment, production line assembly station or input materials distribution frame systems.

5.personalized display, business applications, merchandise display stand, creative showcase.

6. planters frame, other applications, whiteboard frame, items placed frame, and creative applications.

7.materials planes, fixed-mounted non-GM material placed in storage rack.
