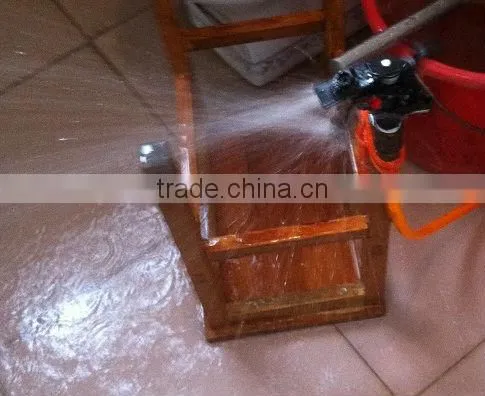

WOBBLER SPRINKER

Specifications

1, the wobbler sprinker is made of AL4020 BK8-115, which enhanced with 10% Teflon, have excellent lubricity and abrasion performance.

2, the ABS material has excellent acid resistance property, meet the harsh requirements of the gold or copper mine dump leaching.

3, the nozzle internal structure is reasonable, plus the appropriate strength of the spray is more conducive to the leaching .

4, the white wobbler suitable to areas of weak sun light and the black wobblers, with ageing resistance agent, more suitable for using in the strong sunlight and high temperature environment.

5, swing wobbler can rotate flexibly which ensure a uniform scattering of the leaching solution.

6, technical parameters: spray radius :4-6M; spray fluid volume :5-7 L / min; working pressure :0.08-0 .12 MPa, sprinkling uniformity: 90%, the connecting thread: 3/4 ".

7, the Swing wobbler with excellent acid proof, wear, aging, uniform spray performance, can be widely used in dump leaching.
