WELDED Wire Mesh/Welded wire Mesh:
Welded wire mesh specification:
Mesh size:1/4",3/8",5/8",1/2",3/4",1" to 6"
Wire Gauge:#12--#24
Width:2' to 6', length specification can be at buyer's option.
Length:30m/roll
Material: High quality low carbon steel wire,stainless steel wire,iron wire,Galvanized wire,pvc wire
ect.
weaving and characteristics:
weaving with hot dipped galvanized iron wire
Electric galvanized after weaving
weaving with electric galvanized iron wire
PVC Coated welded wire mesh
Stainless steel welded mesh is the most popular products in the industrial world.

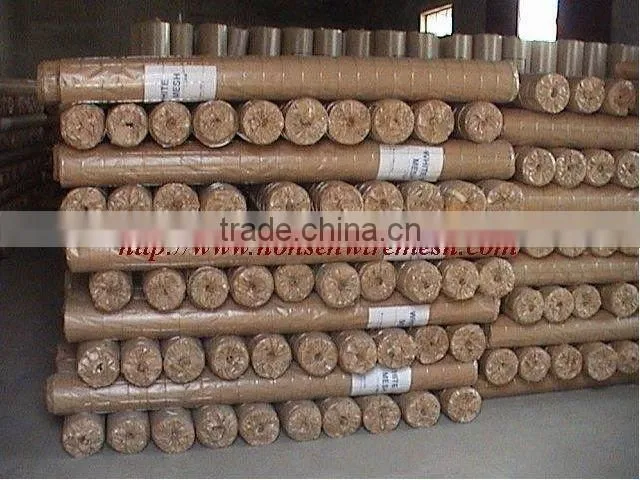

Packing in rolls, with waterproof paper:
PVC coated welded wire mesh is made of quality welded low carbon steel wire mesh galvanized before, then coated with PVC powder or PE powder. The coated layer is even, strong adhere siveness and bright luster with long live good anti-corrosive property. All kinds of colors can be coated according to customers' special requirements.

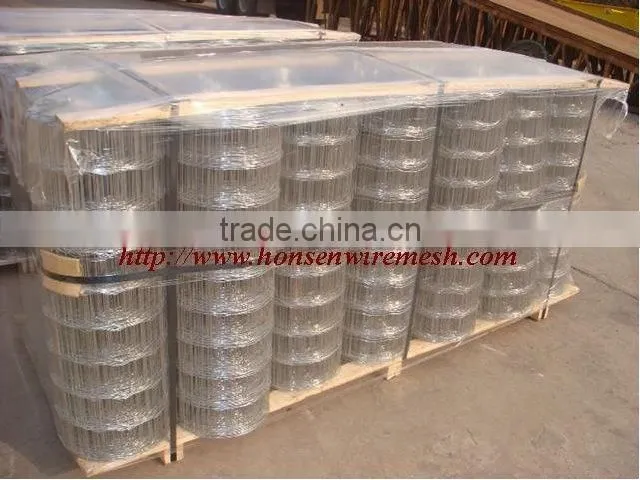

Welded wire mesh packing:
welded wire mesh packing usually with pallet,special packing may be arranged upon request

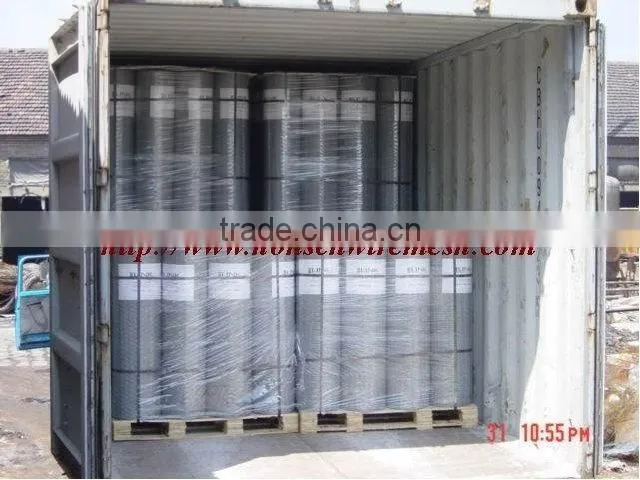

Loading in container:
Varieties available: Electric galvanized hot-dipped PVC coated.
| Specification List of Welded Wire Mesh | ||
| Opening | Wire Diameter | |
| In inch | In metric unit(mm) | |
| 1/4" x 1/4" | 6.4mm x 6.4mm | 22, 23, 24 |
| 3/8" x 3/8" | 10.6mm x 10.6mm | 19, 20, 21, 22 |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16, 17, 18, 19, 20, 21, 22, 23 |
| 5/8" x 5/8" | 16mm x 16mm | 18, 19, 20, 21 |
| 3/4" x 3/4" | 19.1mm x 19.1mm | 16, 17, 18, 19, 20, 21 |
| 1" x 1/2" | 25.4mm x 12.7mm | 16, 17, 18, 19, 20, 21 |
| 1-1/2" x 1-1/2" | 38mm x 38mm | 14, 15, 16, 17, 18, 19 |
| 1" x 2" | 25.4mm x 50.8mm | 14, 15, 16 |
| 2" x 2" | 50.8mm x 50.8mm | 12, 13, 14, 15, 16 |
| Technical Note: 1, Standard roll length: 30m; width: 0.5m to 1.8m. 2, Special sizes available at request. 3, Packing: in waterproof paper in rolls. Custom packing available at request. | ||
| Galvanized Fencing Mesh | ||
| Opening | Wire Diameter | |
| In inch | In metric unit(mm) | |
| 2" x 3" | 50mm x 75mm | 2.0mm, 2.5mm, 1.65mm |
| 3" x 3" | 75mm x 756mm | 2.67mm, 2.41mm, 2.11mm, 1.83mm, 1.65mm |
| 2" x 4" | 50mm x 100mm | 2.11mm, 2.5mm |
| 4" x 4" | 100mm x 100mm | 2.0mm, 2.5mm |
| Technical Note: 1, Standard roll length: 30m; width: 0.5m to 1.8m. 2, Special sizes available at request. 3, Packing: in waterproof paper in rolls. Custom packing available at request. | ||
| PVC Coated Welded Mesh | ||
| Opening | Wire Diameter | |
| In inch | In metric unit(mm) | |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16, 17, 18, 19, 20, 21 |
| 3/4" x 3/4" | 19mm x 19mm | 16, 17, 18, 19, 20, 21 |
| 1" x 1" | 25.4mm x 25.4mm | 15, 16, 17, 18, 19, 20 |
| Technical Note: 1, Standard roll length: 30m; width: 0.5m to 1.2m. 2, Special sizes available at request. 3, Packing: in waterproof paper in rolls. Custom packing available at request. | ||
