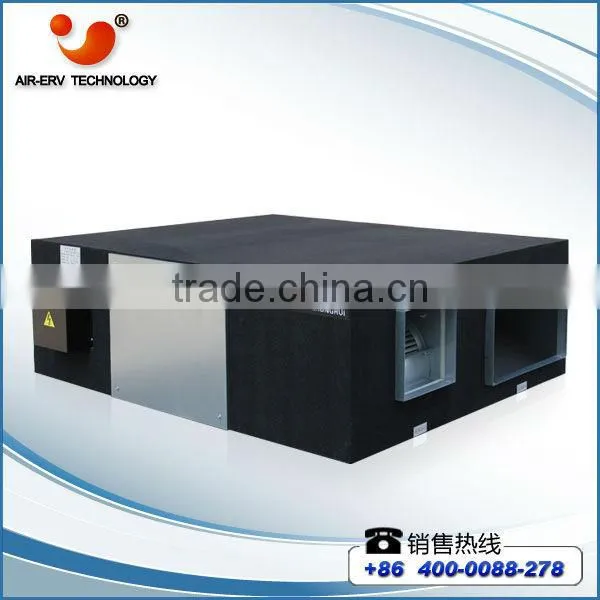

Bypass Air Exchanger Ventilators

Name: Bypass Air Exchanger Ventilators
Brand: AIR-ERV
SKU: 141947474
Availability: InStock

Xiamen AIR-ERV Technology Co., Ltd.

Bypass Air Exchanger Ventilators thumbnail-1

Bypass Air Exchanger Ventilators photo-1

US$ 900 - 1,100 MOQ: 1 Set

Key Specifications

Get Latest Price

Type:

Other, Air Conditioner Parts, Air Conditioning Fitting

Application:

Other, Commercial, HVAC Systems

Certification:

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Xiamen port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Type Other, Air Conditioner Parts, Air Conditioning Fitting

Application Other, Commercial, HVAC Systems

Certification CE

Place of Origin Fujian, China

Brand Name AIR-ERV

Model Number KRV-13D

Specifications

1.Bypass exchanger ventilators
2.Wind volume:1300m3/h
3.Residual pressure:150 Pa
4.Heat recovery efficiency:73%

Bypass air exchanger ventilators/home ceil design

Product description:

KRV series stand for by pass energy recovery ventilator, the heat exchanger core is cross flow paper core, the major function is remove the exhaust air(stable indoor air) and replace it with fresh outdoor air, improve the air quality.

Features:

1.Indoor and outdoor two-ways ventilation, equivalent exchanger of fresh air;

2.Low noise, corrosion and high tempreture resistant;

3.Paper core:high moisture-permeating rate, good air-tightness, tearing-resistance and aging-resistance

4.High heat recovery efficiency;

5.Sealed process stucture,easy to contral and maintain

Detail of ERC Paper ventilator core:

Main parameter:

Model	Air Volume (m3/h)		Static Pressure (Pa)		Rated Voltage	Input Power (W)		Summer				Winter				Noise [dB(A)]		Dimension (mm)	Re. weight (kg)
								Temperature Efficiency (%)		Enthalpy Efficiency (%)		Temperature Efficiency (%)		Enthalpy Efficiency (%)
	High	Low	High	Low		High	Low	High	Low	High	Low	High	Low	High	Low	High	Low
KRV-13DT	1300	1100	150	120	220V/50Hz	655	630	73	75	55	58	73	75	63	66	45	41	1350×1220×437	95
KRV-13 D	1300		150		380V/50Hz	550		73		55		73		63		46		1350×1220×437	98
KRV-16 DT	1600	1400	150	130	220V/50Hz	815	750	75	77	57	59	75	77	65	68	50	44	1450×1220×500	110
KRV-16 D	1600		150		380V/50Hz	810		75		57		75		65		51		1450×1200×500	125
KRV-20 DT	2000	1800	150	130	220V/50Hz	980	945	76	78	59	61	76	78	66	68	53	47	1500×1330×500	133
KRV-20D	2000		200		380V/50Hz	980		76		59		76		68		54		1500×1330×500	146

Work principle:

The two air streams are kept separate within the KRV. Fresh outdoor air is filtered before it enter the KRV core, then the fan distributes the air throughout the house via ductwork. A separate ductwork draw the stale indoor air back to the KRV, and filter by the fans through the heat exchanger core. At the same time, the stale indoor air release the energy and provide it for incoming outdoor air, and being drawn into the house.
