600--800M3/H Air To Air all heat exchanger for energy recovery in plate ventilation for air recuperator

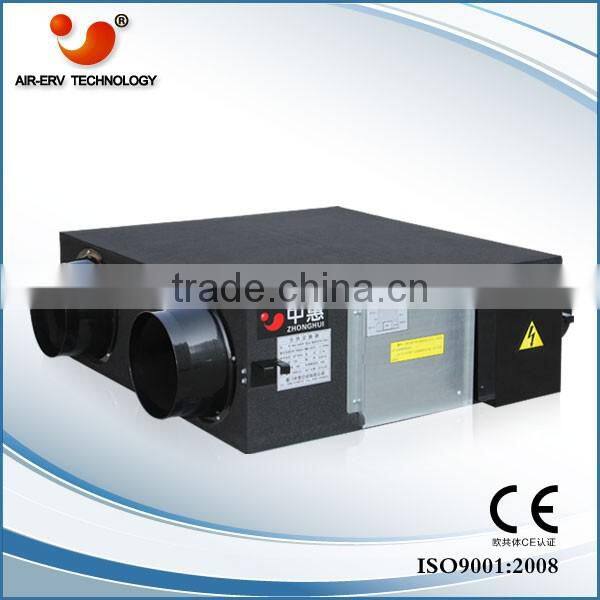

Energy Recovery Ventilator

Item No:K-08DT

Specification

Model type: Heat & Humidity

Airflow: Cross flow

Static pressure: 120Pa

Adjust: By pass

Air volume: 600--800m3/h

Noise: 35--37dB(A)

Exchanger core material: fiber paper

Function: Outdoor & indoor air exchanger

Place: Home/office/meeting room/factory room/ farm

Surface stick: Silencers cotton

Size:1110x880x388 (mm)

Power:390--410 (w)

Rated voltage:220V

Temperature efficiency:73%--75%(summer)73%--75%(winter)

Enthalpy efficiency:50%--55%(summer)63%--64%(winter)

Weight:73kg

Features

• Built-in high-performance heat exchanger unit, rectangular channel structure, the discharge to the indoor air and send them to achieve indoor air exchange heat and humidity during the flow of the plate, and recovering energy in the provision of air at the same time a suitable temperature, Energy saving
• Wind range 150--1000m3 / h, suitable for houses, villas, offices, schools, factories, workshops, farms and other places
• Units installed in the ceiling, do not take up interior space efficient, it does not affect the interior decoration effect
• The core and the device using a molding rail connection and equipped with soft sealing materials, ensure to prevent contamination of fresh air ventilation to ensure the quality of fresh air, and the core can be disassembled without tools, just open any access door can be repaired, convenient simple
• Optimized structure design, according to the hydrodynamic optimization design of internal air flow path and the high efficiency of the overall housing sound-absorbing materials, non-metallic impellers, precise mold production, to ensure perfect acoustics
• In addition to have two-way ventilation, air purification, energy recovery and other basic functions, the unit also set a bypass function, two-speed adjustment function, and you can choose to configure Intelligent Control System

Product description:

KRV series stand for energy recovery ventilator, the heat exchanger core is cross flow paper core, the major function is remove the exhaust air(stable indoor air) and replace it with fresh outdoor air, improve the air quality.  It is suitable for installation in Home, office, meeting room. Not only exchanger fresh air, but also save energy.

Features:

1.Indoor and outdoor two-ways ventilation, equivalent exchanger of fresh air;

2.Low noise, corrosion and high tempreture resistant;

3.Paper core:high moisture-permeating rate, good air-tightness, tearing-resistance and aging-resistance

4.High heat recovery efficiency;

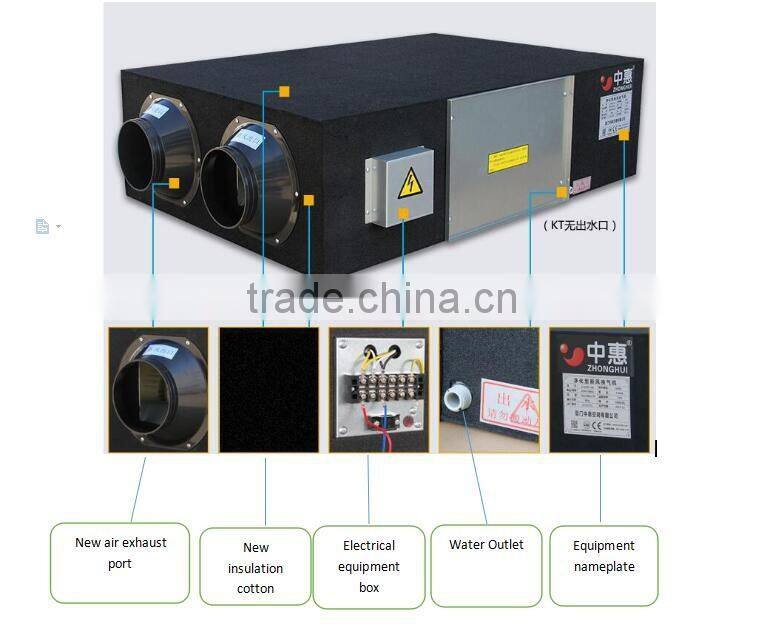

5.Sealed process stucture,easy to contral and maintain

Main parameter:

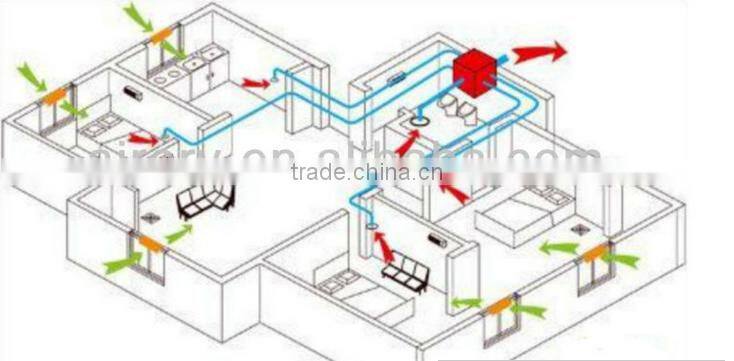

KRV energy recovery ventilator Work principle:

Ceil Installation, save space:
