Low Price Wall Mounted Heat Recovery Ventilator

Name: Low Price Wall Mounted Heat Recovery Ventilator
Brand: Air-ERV
SKU: 141947306
Availability: InStock

Xiamen AIR-ERV Technology Co., Ltd.

Low Price Wall Mounted Heat Recovery Ventilator thumbnail-1

Low Price Wall Mounted Heat Recovery Ventilator photo-1

US$ 694 - 694 MOQ: 1 Piece

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Fujian, China

Brand Name:

Air-ERV

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Xiamen China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Fujian, China

Brand Name Air-ERV

Model Number H-04DT

Structure Plate Heat Exchanger

Voltage 220V

Weight 35

Dimension(L*W*H) 745X800X293

Warranty 1 year

After-sales Service Provided Overseas service center available

Certification CE

Detail of exchanger core: low price wall mounted heat recovery ventilator

Descriptions:

Name: low price wall mounted heat recovery ventilator

- Airflow various from 150-3500m3/h

- Sensible and latent heat recovery

- Quiet operation

- Suspended installation

- Bypass-function

- Optional standard controller and intelligent controller

odel	Air Volume (m3/h)		Static Pressure (Pa)		Rated Voltage	Input Power (W)		Summer				Winter				Noise [dB(A)]		Dimension(mm)	Re. weight (kg)
	Air Volume (m3/h)		Static Pressure (Pa)			Input Power (W)		Temperature Efficiency (%)		Enthalpy Efficiency (%)		Temperature Efficiency (%)		Enthalpy Efficiency (%)		Noise [dB(A)]
	High	Low	High	Low		High	Low	High	Low	High	Low	High	Low	High	Low	High	Low
K-02DT	200	100	75	80	220V/50Hz-60Hz	65	70	76	75	59	58	76	75	69	69	30	28	665×580×268	26
K-03DT	300	250	85	75	220V/50Hz-60Hz	107	78	76	77	56	60	76	77	67	70	30	25	745×600×268	32
K-04DT	400	350	90	80	220V/50Hz-60Hz	142	121	76	77	54	58	76	77	66	68	32	26	745×800×268	38
K-06DT	600	500	100	90	220V/50Hz-60Hz	190	162	70	72	50	53	70	72	61	64	33	31	820900268	48
K-08DT	800	700	120	100	220V/50Hz-60Hz	320	302	73	75	50	55	73	75	64	69	34	30	1110×880×388	73
K-10DT	1000	900	100	80	220V/50Hz-60Hz	410	360	74	77	54	58	74	77	66	70	36	32	1110×1135×388	92
K-16DT	1600	1400	150	130	220V/50Hz	815	750	75	77	57	59	75	77	65	68	42	38	13501220437	95
K-20DT	2000	1800	200	170	220V/50Hz	980	945	76	78	59	61	76	78	66	68	44	40	14501220500	110
K-22DT	2200	1600	100	210		1580	1260	74	77	56	59	74	77	62	67	56	50	1500X1330X500	133
K-16D	1600		150		380V/50Hz	650		75		57		75		65		43		13501220437	98
K-20D	2000		150		380V/50Hz	1013		76		59		76		68		45		14501220500	125
K-25D	2500		110		380V/50Hz	1875		72		54		72		65		50		1550×1330×548	146
K-30D	3000		60		380V/50Hz	1525		75		58		75		68		55		15501330548	165
K-35D	3500		100		380V/50Hz	2245		76		58		76		68		55		16301600548	210

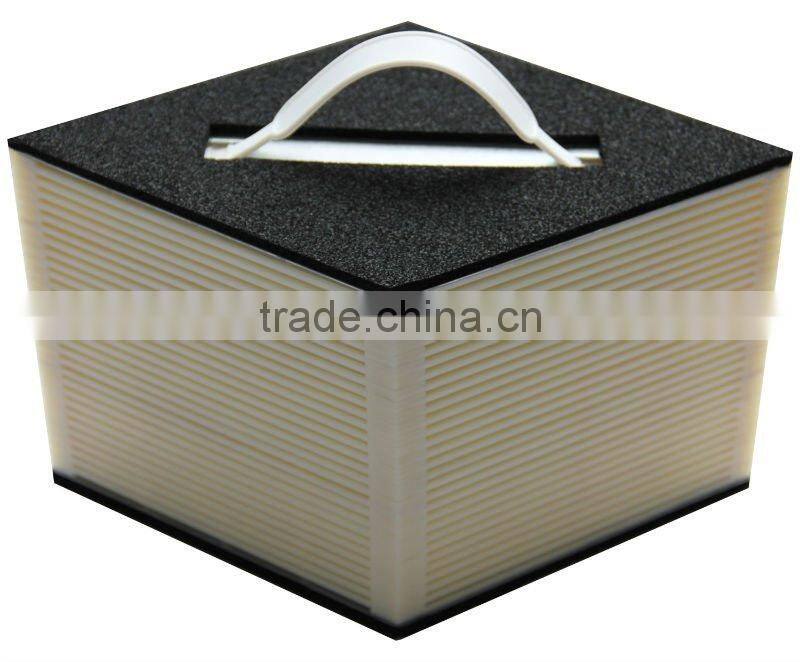

low price wall mounted heat recovery ventilator75% above efficiency corssflow heat recovery ventilator is made of Fabrious paper which is featured by high moisture permeability, good air tightness, excellent tear resistance, and aging resistance. The clearance between the fibers is very small, so only the moisture molecules of small diameter can go through, the odor molecules of larger diameter are unable to pass through it. By this means, the temperature and humidity can be recovered smoothly, and prevent the pollutants infiltrating to the fresh air.

Model

Ventilation core

Function

Heat

KRV

Be made of antiseptic,antimicrobial fibrous Paper and ABS Framework

Recovery both heat energy and Moisture

Total Heat

Workping principle:

AIR-ERV low price wall mounted heat recovery ventilator can expel the stale air indoor out of room, meanwhile supplying the fresh air outside into the room, by using the advanced heat/energy recovering technology, the energy can exchange taking advantage of the difference of the temperature and humidity between indoor and outdoor air. By this means, it can not only smooth away the problem of indoor pollution, but also saving energy.

Features:

1.Energy Saving Crossflow energy recovery unit, rectangular air channel, improved the energy recovery efficiency, reduced the air flow resistance.
2.Application Range Air flow 150-2000 m3/h, suitable for residence, villa, meeting room, office and so on.
3.Convenient Installation Machine installed in ceiling,do not occupy in-room space, do not affect interior decoration, easy to design and installation.
4.Low Noise Optimized structure design, used sound-absorbing material and nonmetallic impeller, guaranteed the good static sound effect.
5.Complete-function Except the two-way air exchange, air purification, energy recovery, machine also have bypass, two speed regulatory function and selectable intelligence control system.

Packaging & Shipping

We care about all the details in the product process.

As low price wall mounted heat recovery ventilator has the soft character to cause the easy deformation, we focus on the safe packing in different transportation way.

Full container	PVC bag + strong carton (pallet for option)
LCL	PVC bag + special strong carton + pallet
By air / courier	PVC bag + carboard inserted in carton + special strong carton

Introduce of AIR-ERV

AIR-ERV in China is the professional manufacturer of Total energy exchanger manufacturersand heat products.

Founded in 1996,we have 20 years of experience.

Introduce of AIR-ERV

1. AIR-ERV can supply OEM service for customers.
2. Produce ERV/HRV, heat exchanger according to customer's special demands.
3. Supply spare parts according to order quantity.
4. General testing and operational test carried out for every units before delivery.
5. Long warranty period.

Welcome to visit our low price wall mounted heat recovery ventilator
