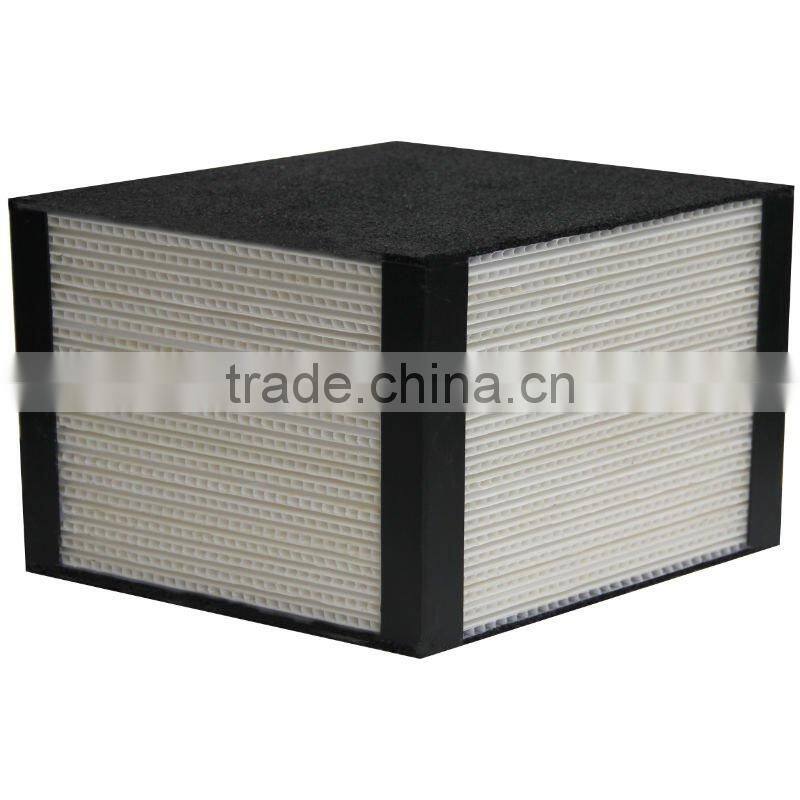

We supply high efficiency paper core heat exchanger core.
Paper heat exchanger Core is made of special fibrous paper, which have high moisture permeability, anti-rends, anti-mildew features;with ABS framework, which is not easy to break, long service time, pro-environment;with galvanized sheet cover plate and plastic handle.
Working principle:
Two air streams are forced cross enter into the heat exchanger, temperature and humidity exchange from the paper, so as to recover energy and achieve the energy saving
Features:
1.Made of special fibrous paper, with high moisture permeability, good air-tightness, anti-rends, aging resistance, anti-mildew
2.ABS framework, beautiful, not easy to break, long service time, pro-environment, good impermeability,ensure the intensity and tightness of structure, reduce back flow
3.Rectangular channel, reasonable plate distance,less interior brace,small on-way resistance, less air loss, ensured the maximum heat exchanger area, achieved to maximum efficiency
4.No moving parts, and low maintenance cost
5.Compact structure, small volume, suitable for various occasions
6.Can use the vacuum cleaner purify the dust and foreign bodies on the devices, easy to use andmaintenance.
************************************************************************************************************
If you are insteresting in our sensible enthalpy recovery exchanger for energy save,click here to contact with Jenny Yang.
************************************************************************************************************
Detail of paper core:

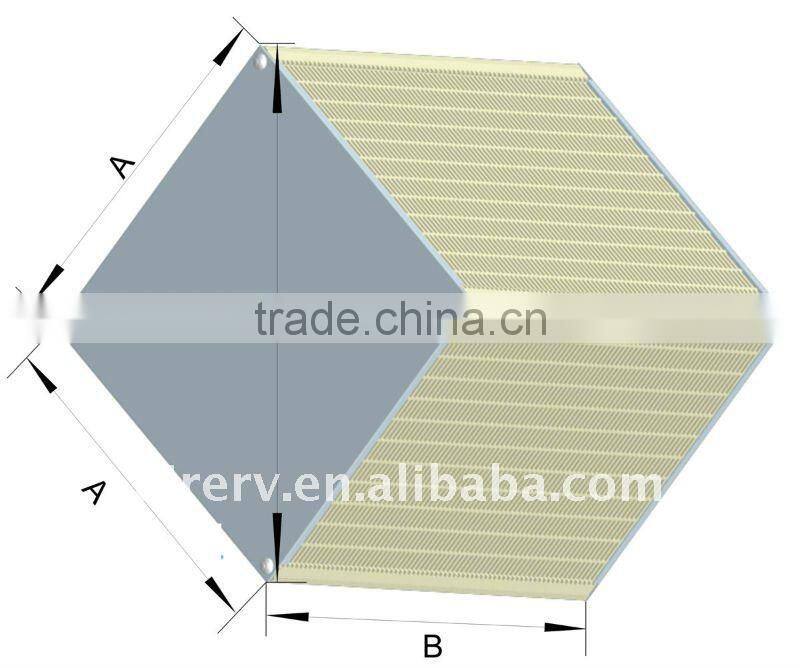

Model range:
Dimension (mm) | Plate Distance (mm) | ||||
A | Paper Thickness | Paper Weight | B | C | |
163*163 | 0.06-0.062 mm | 1.062 g/pcs | ≤1000 | 230 | 2.2-2.5 |
250*250 | 2.500 g/pcs | 354 | |||
269*269 | 2.894 g/pcs |
≤ 800
| 382 | ||
315*315 | 3.969 g/pcs | 446 | |||
345*345 | 4.761 g/pcs | 488 | |||
Remark:Except the above fixed specifications,we also can provide combined models,aimed to satisfy different demand
************************************************************************************************************
If you are insteresting in our sensible enthalpy recovery exchanger for energy save,click here to contact with Jenny Yang.
************************************************************************************************************
Applied range:
Heat ventilation core is the major part of energy recovery ventilator(KRV), for air volumes up to 30,000 m3/h, include the household and commercial ventilations. The heat exchanger controlled the ventilation, recover the heat energy and moisture in winter, the cold energy and moisture in summer, not only save the energy but also give room for fresh air.
Packaging
In order to prevent our product from damaging during the transport,we use+paper spacer+wooden case to offer the best protection.
Shipping
By sea,By air,By express
1. AIR-ERV can supply OEM service for customers.
2. Produce ERV/HRV, heat exchanger according to customer's special demands.
3. Supply spare parts according to order quantity.
4. General testing and operational test carried out for every units before delivery.
5. Long warranty period.
AIR-ERV Factory
AIR-ERV is one of the best manufacturer in ERV/HRV core, heat exchanger,air ventilator,ventilation system and Air handling unit(AHU) area in China, founded in 1996, areas covered more than 30,000 square meters, we have enthalpy testing lab. for products test. As a leader in energy/heat recovery equipments, we cooperate with more than 30 famous companies who located in Europe, the Middle east, Korea, Southeast Asia, Taiwan, etc. supplied equipment to Shanghai finance trade building and Guangzhou Pazhou Exhibition Center
AIR-ERV partner
AIR-ERV cooperate with world famous brand or offer OEM service including Media,Shenling,Daikin, etc.
AIR-ERV certificate
AIR-ERV products stand for TOP quality in heat recovery ventilation filed in China, certificated by CE, ISO and other different approved tests like anti-flaming test, anti-mold test, energy saving product test. Etc.
What's the difference between sensible heat exchanger and total heat exchanger?
1.Sensible heat exchanger is made of Aluminium foil,total heat exchanger is made of paper.
2.Sensible heat exchanger only exchange heat,total heat exchanger can exchange both heat and humidity.
3.Sensible heat exchanger has longer life and higher pressure-resistance than total total exchanger.
Because the paper heat exchanger are easy to be corroded by the water and dust in the air.The vent of
total heat exchanger is easy to be blocked and hard to be cleaned.This will lead to bad ventilated effect.
