Specifications
cooling the base stationDetailed Product Description
1.Base station heat exchanger
2.Cooling capacity:200W/k
3.Air volume:1000m3/h
4.CE certification

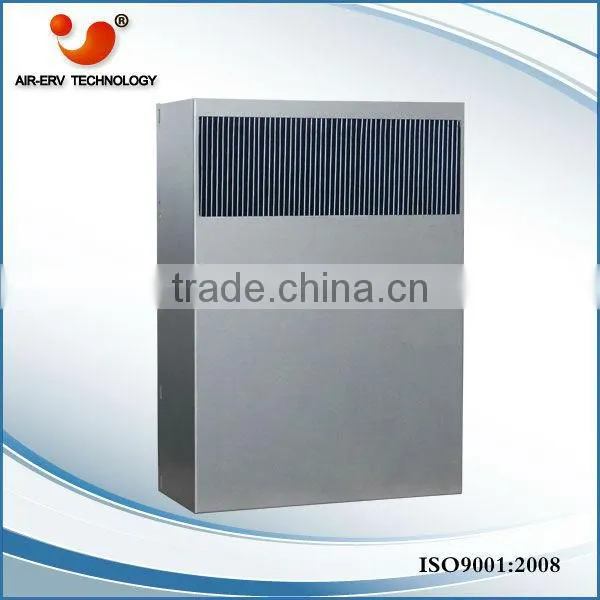

Base station heat exchanger

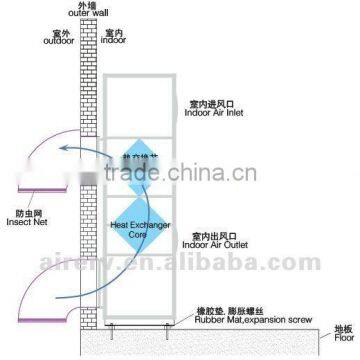

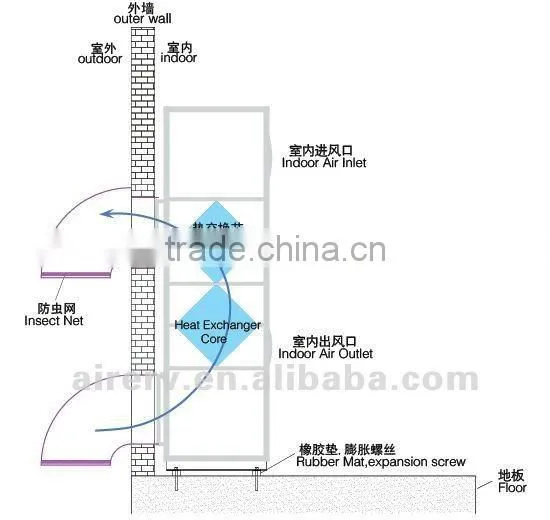

Base Station Ventilator is designed for telecom stations or computer room, etc.
It can help cooling the inside electron component with air flow, But the outside air and moisture never enter inside .
Base station heatexchange Feature:
1.Energy Saving
It real-time control monitoring the inside and outside temperature ,when the outside temperature is lower to a certain extent, the equipment will begin to work, remove the inside heat to outside, so as to reduce the air-conditioner working time and save the energy.
2.Water And Dust Proof
Enclosed air circuit cooling system , completely isolate the inside and outside air, effectively avoid air contamination from outside.
Several Working Models and Standard RS485/RS232 Intelligent Control
3.DDGK function:
Setting the parameter for automatic protection, when the unit power outage, computer can record the parameter and outage information, after the power on, it will work again follow the status before the power outage ,it have the time delay function, to avoid power flash affect the unit or automatic trip .
4.Air-conditioner Troubleshooting
When base station air conditioner goes wrong,the equipment remove the inner heat to outside in time, make sure the electron devices working well.
5.Protection Warning Function and Stable performance
High quality accessories and less moving parts, so as to reduce the machine fault and easy to maintenance.

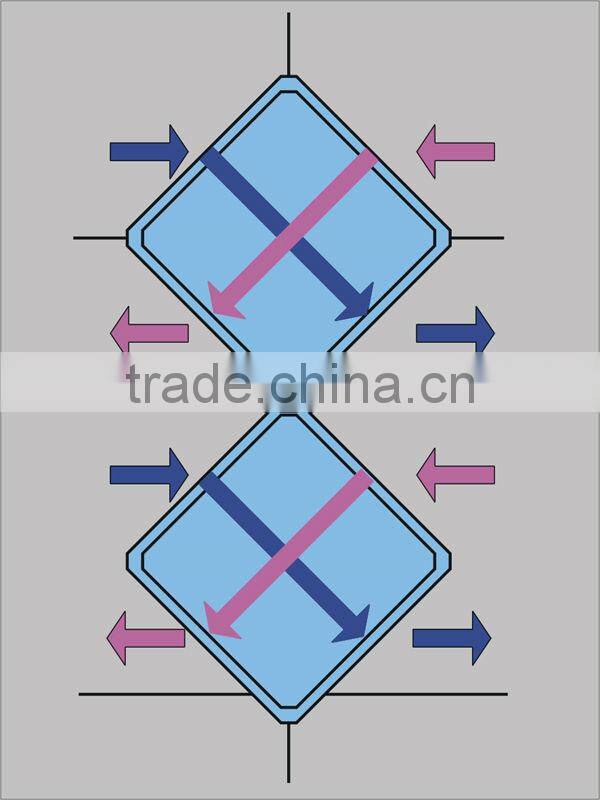

Main inside structure
The hydrophlic aluminum foil as the material ,can have good efficiency .

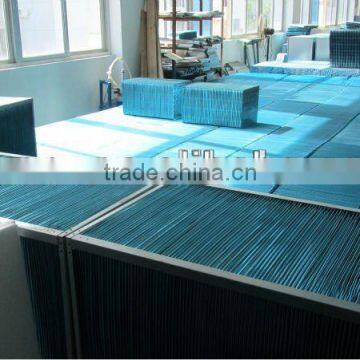

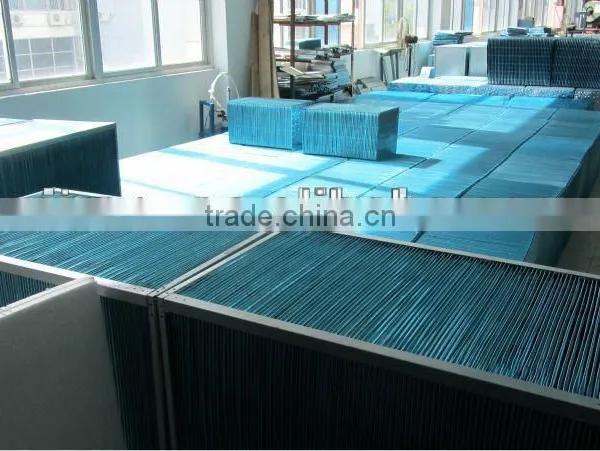

Conner of Workshop
Performance Parameter
Product Model(Middle-size) S20-S60 | |||||
Parameter | Unit | HEU-S200 | HEU-S300 | HEU-S400 | HEU-S500 |
Cooling capacity | W/K | 200 | 300 | 400 | 500 |
Air Volume | M3/h | 1000 | 1500 | 2000 | 2500 |
Static pressure | Pa | >50 | |||
Power | W | 270 | 374 | 627 | 700 |
Voltage | V | AC:220V | AC:380V | ||
Temp. Range | °C | -40 to 70°C 0-100%RH | |||
Noise | dB(A) | 50 | 52 | 54 | 55 |
Dimension | mm | 1940x960x425 | 1650x980x485 | 1800x1250x505 | 1800x1250x605 |
Weight | Kg | 86 | 102 | 132 | 168 |

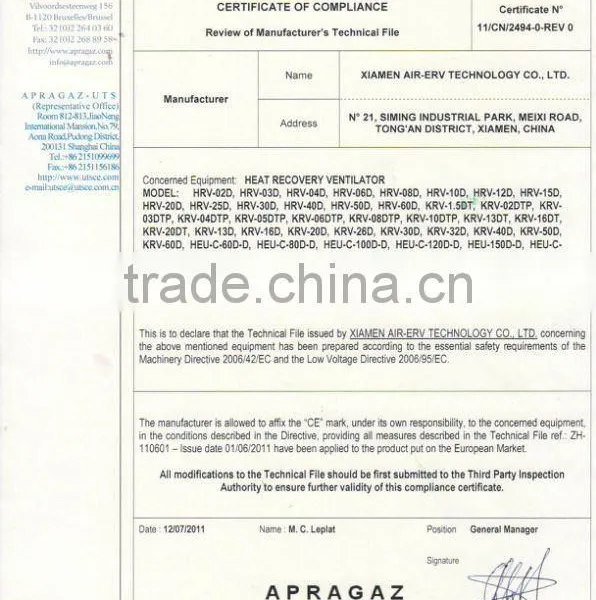

CE certification
