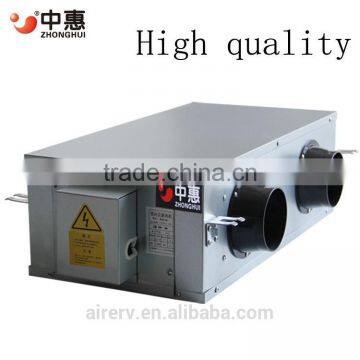

Help CenterLow Price Ventilator for Air Ventilating /roof Mute Two-way Air Ventilator
Related Products
-
Low Price Ventilator for Air Ventilating /mute One-way Air VentilatorUS$ 350.8 - 427.9MOQ: 1 Piece -
Hoem Ventilation System Air Ventilation FanUS$ 50 - 500MOQ: 10 Sets
-
Roof Air Ventilation SystemUS$ 50 - 500MOQ: 10 Sets
-
Cabinet VentilationUS$ 1 - 5,000MOQ: 10 Sets
-
Family Tubular Heat ExchangerUS$ 50 - 500MOQ: 10 Sets
This air ventilator contains:
1. choosable high quality DC or AC motor
2.two gear speed regulation
Ventilator Description:
1.High quality DC or AC motor make the life of this air ventilator long and save energy.
2. the bracket is perfect joint without gap ,to make the appreance of this air ventilator nice.
3.two-way air exchange(air to air exchange),
who need this air ventilator ?
Every home,public area(new and old) needs ventilation to bring in fresh air, to remove exhaust air, and provide moisture control.
How Ventilator?
1.Outdoor fresh air will come into indoor via two-way ventilator.
2.Indoor exhaust air is ventilated to outdoor via two-way ventilator
Ventilator Main Feature
1.material metal,long life.
2.exquisite technical
3.two gears regulation
4.Low resistance and long life
Ventilator Parameter
Model | SXL18 | SXL37 | SXL50 | SXL80 | SXL100 | SXL120 |
voltage | 220V 50Hz | |||||
Electricity(A) | 0.08*2 | 0.16*2 | 0.27*2 | 0.41*2 | 0.54*2 | 0.74*2 |
rated power(W) | 18*2 | 36*2 | 60*2 | 90*2 | 120*2 | 160*2 |
air volumn(m³/h) | 180 | 370 | 500 | 800 | 1000 | 1200 |
static pressure(Pa) | 90 | 110 | 130 | 150 | 180 | 200 |
noise dB(A) | 21 | 27 | 29 | 31 | 32 | 41 |
weight(Kg) | 10.5 | 11.5 | 16.5 | 19.5 | 28.5 | 30 |
Model | SXL150 | SXL200 | SXL250 | SXL300 | SXL400 | SXL500 |
voltage | 220V 50Hz 380V 60Hz | |||||
electricity(A) | 0.91*2 | 1.36*2 | 2.05*2 | 2.5*2 | 3.63*2 | 4.55*2 |
rated power(W) | 200*2 | 300*2 | 450*2 | 550*2 | 800*2 | 1000*2 |
air volumn(m³/h) | 1500 | 2000 | 2500 | 3000 | 4000 | 5000 |
static pressure(Pa) | 200 | 220 | 250 | 250 | 300 | 300 |
noise dB(A) | 55 | 57 | 57 | 58 | 60 | 62 |
weight(Kg) | 34 | 52 | 62 | 68 | 92 | 150 |

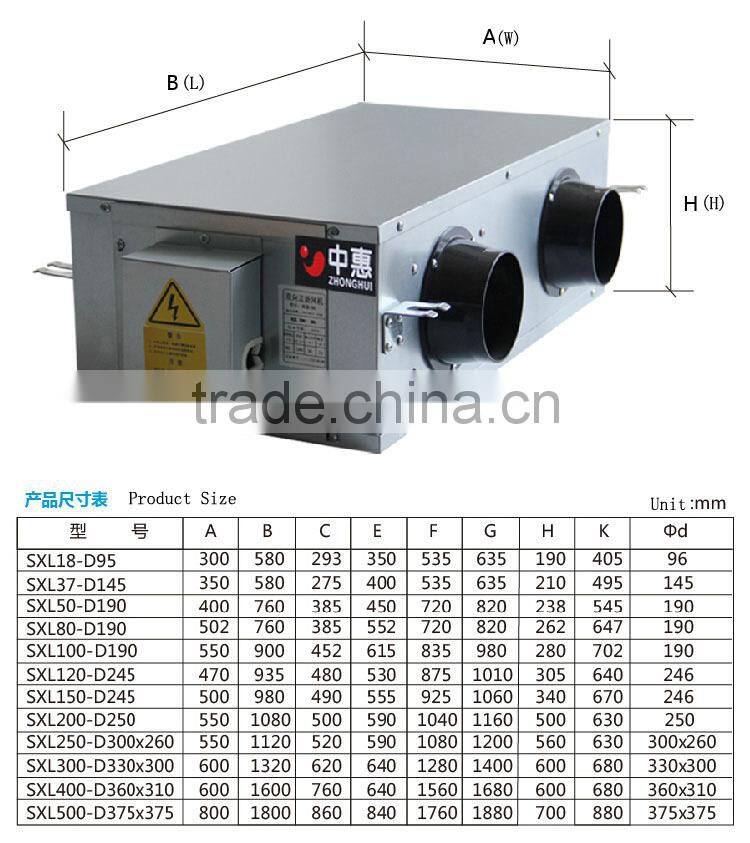

Ventilator Size
Ventilator installation caution
1.Pls try to avoid below phenomenon while install the pipe
(too much bending) (several times of bending) (reduce the diameter of connect pipe)
According to different district,some area may not allow to use the flexible pipe,pls pay attention to it.
Use the public pipe to ventilate air,you have the duty to use the fire-proof material that is in accordance with the buliding benchmarking.2m upright steel pipe should be install.
The height of within ceiling should be smaller than below table
2.Height within the ceiling(mm)
Consider of installing the air pipe noise deadener could reduce the indoor noise.

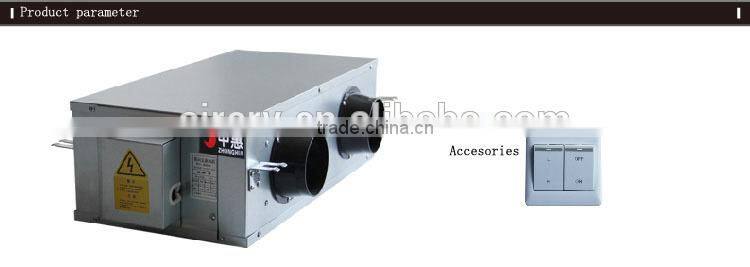

Switch panel is attached with the device,it will be kept in the outside of wall.Users should keep the control line by theirself.

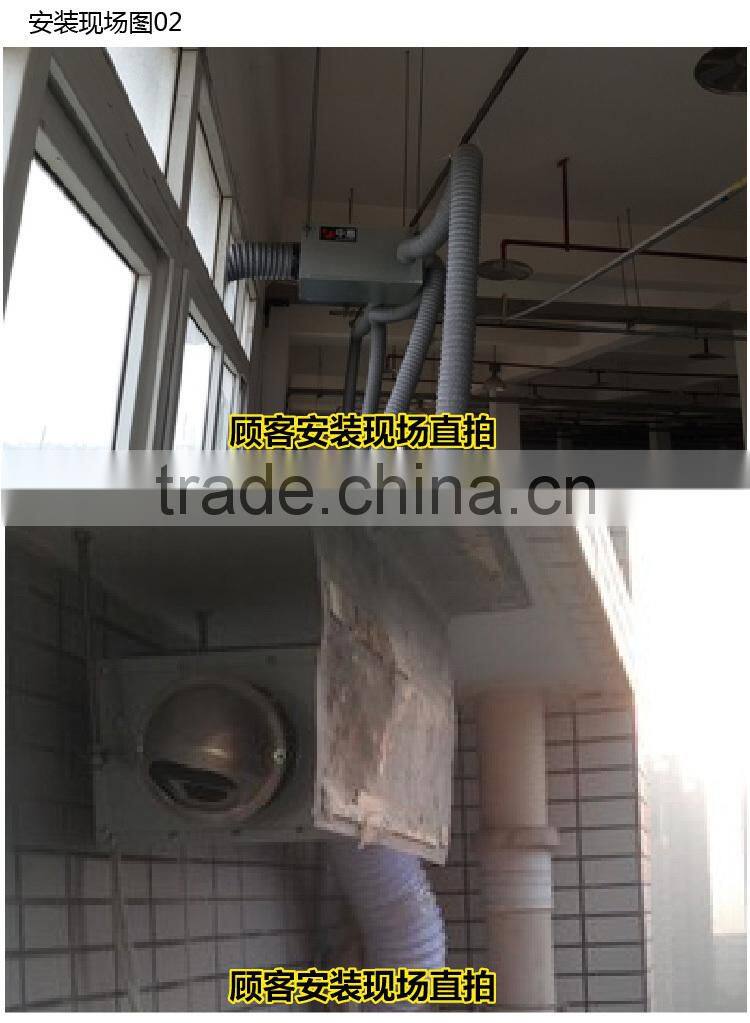

Ventilator install at site show
Ventilator maintance
1.Long time running will cause lots of exhaust things stick to the filter,increase the wind resistence and reduce the
efficency of using.Timely clean or change is required.Unscrew the four pagging screw and open the maintain panel,do a CCW rotate can strike the filter box.Use brush or compress air to clean the filter.Then install back.Rotate the filter box CLW will tighten(show as right picture)
2.DC unbrush motor,self-lubricating maintenance-free shaft,
general don't need maintance.Only need check the fixed motor and the screws are loose or not.If loose then tighten them.
3.Shut off the power before maintaince.
We care about all the details in the product process.
As aluminum has the soft character to cause the easy deformation, we focus on the safe packing in different transportation way.
| Full container | PVC bag + strong carton (pallet for option) |
| LCL | PVC bag + special strong carton + pallet |
| By air / courier | PVC bag + carboard inserted in carton + special strong carton |
Introduce of ZhongHui
Zhonghui has been specialized in the air ventilator,heat recovery ventilator,ventilator core and air purifier since 1986.
It has been offer Ventilator and ventilator core OEM service for many famous internetional factory.
