Specifications
DTH Hammer Drilling Rig1.Lower energy consumption
2.Higher impact frequency
3.Easy and cheap maintenance
4.Long life
6" DTH Hammer Drilling Rig/Hydraulic DTH Hammer/DTH Hammers Manufacturer:
1. 10 years manufacturing experience;
2. Certificate: ISO9001:2008
3. Material: Carbide
It is a kind of high air pressure DTH Hammer without footvalve, our newest design. It is also one of the most advanced DTH Hammers in the world.
It has the following advantages:
1. Out of the trouble of foot valve fracture and expansion and contraction.
2. Lower energy consumption and higher impact frequency. The drilling speed is 15%-30% higher than the one with foot valve.
3. Simple structure, reliable parts, long life, easy and cheap maintenance.
4. Lower air and oil consumption. The oil consumption is about 10% lower than the one with foot valve.
ND65A DTH Hammer Technical Data
Length (Without Bit) | Weight (Without Bit) | External diameter | Bit Shank | Hole Range | Connection Thread | ||
1238mm | 98.00kg | 142mm | Cop64 DHD360 | 155-203 | API3 1/2Reg | ||
Working Pressure | Impact rate at 1.7Mpa | Recommended rotation speed | Air consumption | ||||
1.0Mpa | 1.8Mpa | 2.4Mpa | |||||
1.0-2.5Mpa | 25HZ | 20-30r/min | 9m³/min | 18m³/min | 26m³/min | ||
|
|
|
|
|
|
|
|

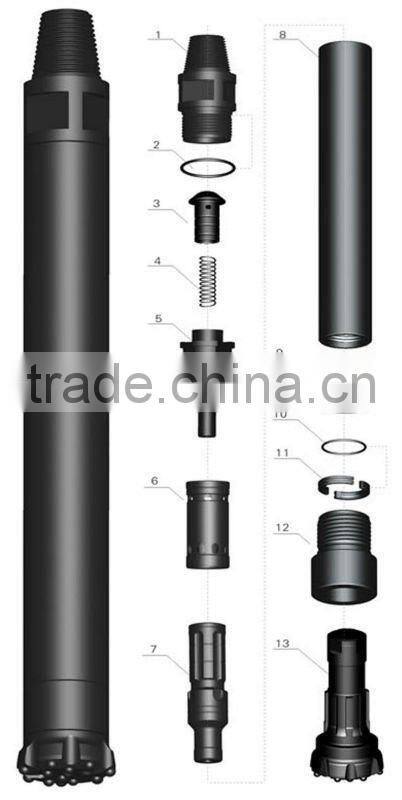

Item Description | Weight (kg) | Part Number |
1. Top Sub 2. O Ring of Top Sub 3. Check Valve 4. Spring 5. Air Distributor 6. Internal Cylinder 7. Piston 8. External Cylinder 9. Guided Sleeve 10. o Ring of Stop Ring 11. Stop Ring 12. Drive Chuck 13. Drill Bit | 20.00 0.02 0.70 0.10 3.50 4.20 23.00 31.50 6.50 0.01 0.60 6.00 26.00 | ND65A01 ND65A02 ND65A03 ND65A04 ND65A05 ND65A06 ND65A07 ND65A08 ND65A09 ND65A10 ND65A11 ND65A12 ND65A13 |
Our advantages:
We have advanced production equipments & talented researchers & technicians & rich experiences in R & D and production.
We use the best quality raw materials.
We adopt advanced production technology & strict testing procedure.
We passed ISO9001 quality management system certification.
We accept OEM manufacturing and produce on your design.
