Home > Products > WIKA items > Bourdon Tube Pressure Gaugefor Tyre Pressure Apparatus
Bourdon Tube Pressure Gaugefor Tyre Pressure Apparatus
- xi'an
- Money Gram Credit Card
You May Like
Product Details
| Place of Origin | Germany | Brand Name | WIKA | |
| Model Number | 111.14 |
Product Description

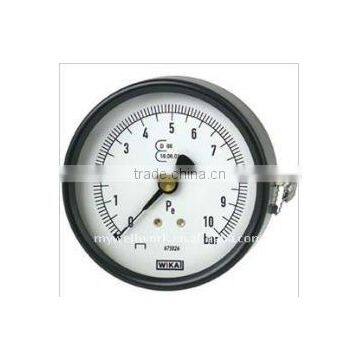

Miniature Bourdon tube pressure gaugeModel 111.12.27, back mount
Applications
1:For gaseous and liquid media that are not highly viscousor crystallising and will not attack copper alloy parts
2:Indication of cylinder charging pressure
3:Respiratory protective equipment, sports weapons,welding engineering (compact equipment)
4:Medical engineering
Description
Nominal size in mm
27
Accuracy class
4.0
Scale ranges
Low pressure: 0 ... 4 to 0 ... 25 bar
High pressure: 0 ... 100 to 0 ... 400 bar
or all other equivalent vacuum or combined pressure and
vacuum ranges
Pressure limitation
Steady: 3/4 x full scale value
Fluctuating: 2/3 x full scale value
Short time: Full scale value
Permissible temperature
Ambient: -40 … +60 °C
Medium: +60 °C maximum
Temperature effect
When the temperature of the measuring system deviates
from the reference temperature (+20 °C):
max. ±0.4 %/10 K of the span
