1.E+H Hygienic temperature sensor TR44 series2.Original E+H products with wholesales price
3.Fast delivery ,1 year warranty
Wholesales E+H Hygienic temperature sensor TR44
1.Product Overview
Typical processes in the food & pharmaceutical industry demand special functions such as fast response times and high accuracy of temperature measurement. The process temperatures in food processes are in the range of
-40...250°C (-40...482°F) and between -50...400°C (-58... 752°F) in pharmaceutical processes.
Process pressures can be anywhere between atmosphere and 100 bar (1450 psi).
Furthermore an important prerequisite is a hygienic design capable of cleaning in process (CIP) and sterilization in process (SIP).
2.Technical Parameter
| Measuring Principle | Resistance Temperature Detector | |
| Characteristic / Application | metric style | |
| modular temperature assembly | ||
| hygienic design | ||
| hygienic process connection | ||
| with neck | ||
| Terminal head | TA20A - aluminium - cover with screws | |
| TA20B - plastics - screw cover | ||
| TA20D - aluminium - hinged cover high | ||
| TA20J - SS - deep-drawn w. or w/o. display | ||
| TA20R - SS - machined w. screw cover | ||
| TA20W - aluminium - cover w. snap fit | ||
| TA21E - aluminium - screw cover w. chain | ||
| Thermowell / protection tube | without (not intended to use with thermowell) | |
| Insert / probe | mineral insulated (MI), flexible | |
| Outer diameter protection tube | 6,0 mm (0,24'') | |
| 8,0 mm (0,31'') | ||
| Max. immersion length on request | up to 1.000,00 mm (39,37'') | |
| Material protection tube/thermowell | 1.4435 (316L) | |
| Process connection | hygienic: | |
| conical sealing system G1/2" (metal) | ||
| conical sealing system M12x1,5 (metal) | ||
| clamp connections acc. to ISO 2852 / DIN 32676 | ||
| clamp connections TRI-Clamp / Micro-Clamp | ||
| screwed pipe joint acc. to DIN 11851 | ||
| screwed pipe joint acc. to DIN 11864-1 | ||
| Varivent | ||
| SMS 1147/8 | ||
| G1" Liquiphant type M | ||
| Ingold | ||
| welded (cylindircal) | ||
| welded (spherical) | ||
| Tip shape | straight | |
| reduced | ||
| Surface roughness Ra | 0,4 μm (15,7 μin.) | |
| 0,8 μm (31,5 μin.) | ||
| Operating temperature range | PT 100: | |
| -50 °C ...200 °C | ||
| (-58 °F ...392 °F) | ||
| Max. process pressure (static) | at 20 °C: 50 bar (725 psi) | |
| Accuracy | class A acc. to IEC 60751 | |
| 1/3 DIN class B acc. to IEC 60751 | ||
| Response time | depending on configuration | |
| t50 = 5 s | ||
| t90 = 13 s | ||
| Integration head transmitter | yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS) | |
| Ex - approvals | ATEX | |
| Certification | Gost Metrology | |
| FDA | ||
| EHEDG | ||
| 3A | ||
| SIL (transmitter only) | ||

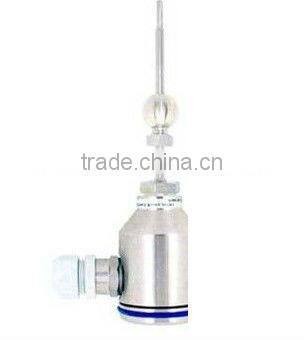

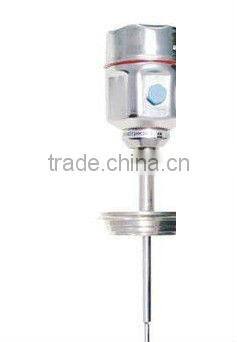

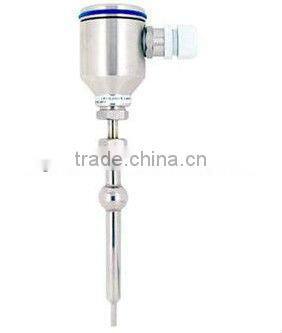

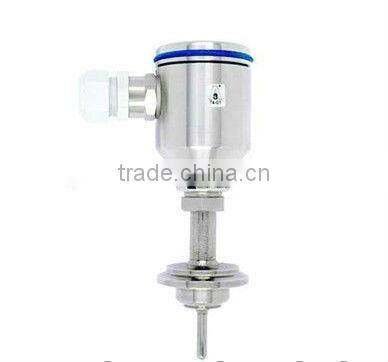

3.Product Pictures
4.About US
XI'AN WELLWORK INDUSTRIAL CO., LTD was invested by HK Emerson International Trade Company,which Specialized in the supply of presssure gauge,flowmeters,transmitters,actuator.Brand covers Rosemount,Yokogawa,Siemens,Phoenix,E+H,ABB,Fisher and so on.Fast delivery and competitive price can be assured as a authorised distributors.
