Best Price Magnetic Limit Switch

Specifications

Application
Soliphant M is a robust level limit switch for use in silos containing fine-grained or powdery solids even with a
low bulk density.
The various designs mean the device has a wide range of applications. Certificates are also available for use in dust or gas incendive hazard areas.

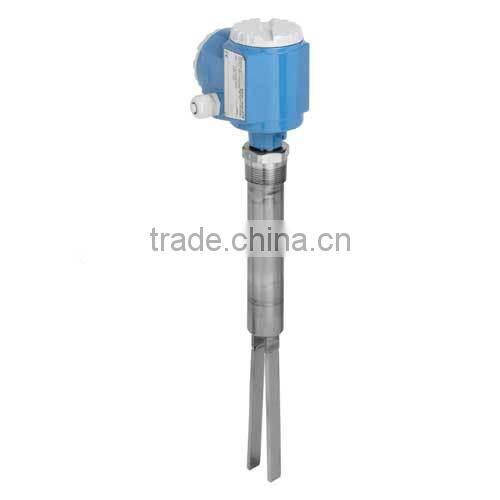

FTM50 compact design for installation in any direction.
A wide range of applications thanks to various variations;
e.g. short fork with stainless steel housing (F15);
       standard fork with polyester housing (F16)

FTM51 with extension pipe up to 4 m for installation in any direction;

e.g. aluminium housing (T13) with separate connection compartment EEx de

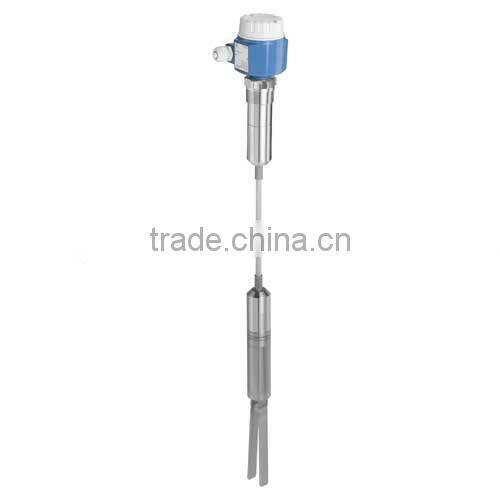

FTM52 with rope up to 20 m for installation from above;
e.g. with aluminium housing (F17)

Typical applications: cereals, flour, powdered milk, cocoa, sugar, animal feed, detergents, dye powder, chalk, gypsum, cement, sand, plastic granules

Your benefits
- Market leader in the area of level detection of bulk solids with practical experience since 1967
- No calibration: easy commissioning (plug and play)
- No mechanically moving parts: no wear, long operating life
- Insensitive to external vibrations and build-up: maintenance-free operation, independent of bulk solids
- Switching status display through cover with sight glass: easy monitoring
- Various electronic inserts: e.g. NAMUR, relay, thyristor and PFM-signal outputs for optimum alignment with the plant control system
- New: also with short fork (100 mm fork length)
- New: build-up and abrasion display selectable
- New: density setting and switching delay selectable

FTM52FTM50
