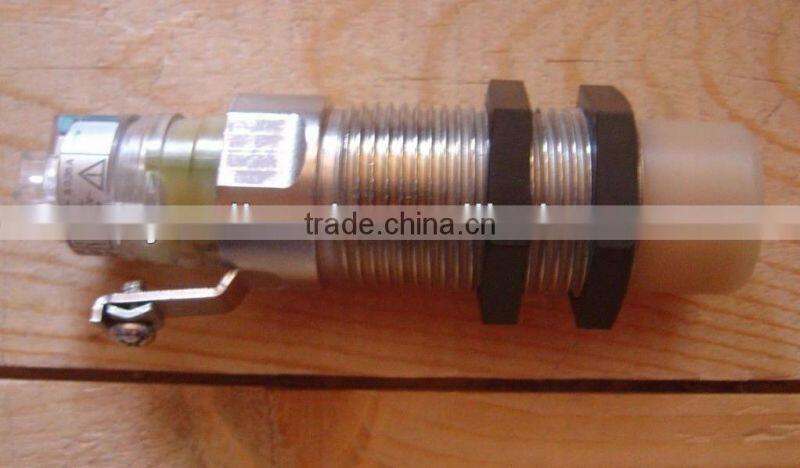

Capacitance Level Limit Switch Nivector FTC968

E+H Capacitance Level Limit Switch Nivector FTC968

Supply / Communication 2-wire AC: 24V ... 253V
3-wire DC: 10V ... 55V

Ambient temperature -20 °C ... 60 °C
(-4 °F ... 140 °F)

Process temperature -40 °C ... 80 °C
(-40 °F ... 176 °F)

Process pressure absolute / max. overpressure limit Vacuum ... 6 bar
(Vacuum ... 87 psi)

Main wetted parts PC, PA
"Protector":
FDA listed material PBT-GF
(according to 21 CFR 177.1660)

Process connection G1, G1 1/2

Output 2-wire AC
3-wire DC

Options Protector

Specialities Active build-up compensation

Application limits DK min 1,6
Observe pressure and temperature derating
