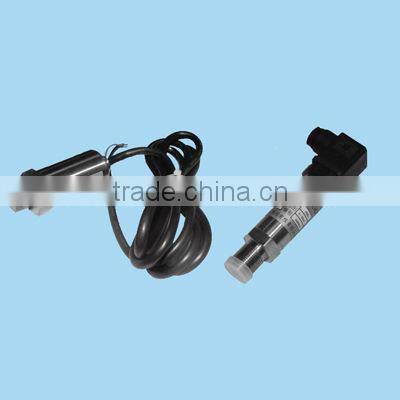

Economic Pressure Transmitter

Specifications

l Feature

The core element of transmitter, which adopts high performance silicon dies as well as offering to OEM customers. Compact structure, easy installation, low cost, product has high safety performance since it has the reversed circuit protection.

LG-PT100E can be specially used in some flammable environment.

l Technology Data

Measurement Range: 0 to 200 kpa …… 0 to 35Mpa

Accuracy: 0.5% F.S( including linearity, repeatability and hysteresis)

Output: 4~20mA(two-wire type)

Power supply:24VDC±10%

Pressure Connection: M20X1.5(others on request)

Response Time: 10ms

Allowed over pressure: 2.5 times full scale

Pressure form: Gauge pressure

Long Term Stability: ±0.2% F.S per year

Compensated Temperature: from -10°C to +60 °C

Working Temperature:-40°C to +80 °C
