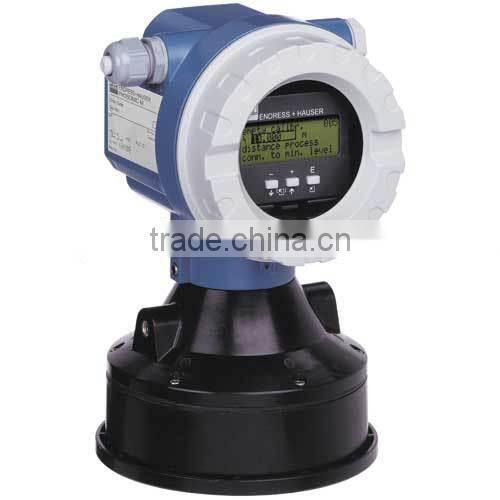

Ultrasonic Level Transmitter Prosonic M FMU43/FMU44

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Germany

Model Number:

FMU43/FMU44

Xian Wellwork Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Xi'an

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Germany

Model Number FMU43/FMU44

E+H Ultrasonic Level Transmitter Prosonic M FMU43/FMU44

Compact transmitters for non-contact level measurement of fluids, pastes and coarse bulk materials

Your Benefits

Quick and simple commissioning via menu-guided onsite operation with four-line plain text display; 7 languages selectable
Envelope curves on the on-site display for simple diagnosis
Easy remote operation, diagnosis and measuring point documentation with the supplied FieldCare operating program
Suitable for explosion hazardous areas (Gas-Ex, Dust-Ex)
Linearisation function (up to 32 points) for conversion of the measured value into any unit of length, volume or flow rate
Non-contact measurement method minimizes service requirements
optional remote display and operation (up to 20 m (66 ft) from transmitter)

Integrated temperature sensor for automatic correction of the temperature dependent sound velocity

Measuring Principle	Ultrasonic
Characteristic / Application	Compact ultrasonic transmitter
Supply / Communication	4-wire (HART), PROFIBUS PA, FOUNDATION Fieldbus
Accuracy	+/- 4 mm or +/- 0.2 %of set measuring range 1)
Ambient temperature	-40 °C ... 80 °C (-40 °F ... 176 °F)
Process temperature	-40 °C ... 80 °C (-40 °F ... 176 °F)
Process pressure absolute / max. overpressure limit	0.7 bar ... 2.5 bar abs (10 psi ... 36 psi)
Main wetted parts	unsaturated polyester, 316 Ti
Process connection	DN 100, ANSI 4"
Blocking distance	0.6 m (2 ft)
Max. measurement distance	7 m (23 ft)
Output	4 ... 20 mA HART PROFIBUS PA FOUNDATION Fieldbus
Certificates / Approvals	ATEX FM CSA
Application limits	Take notice of range diagram
