Product Overview:

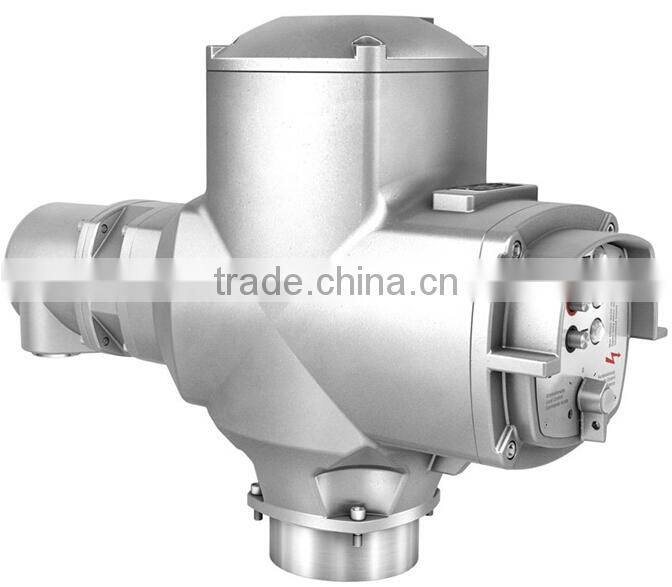

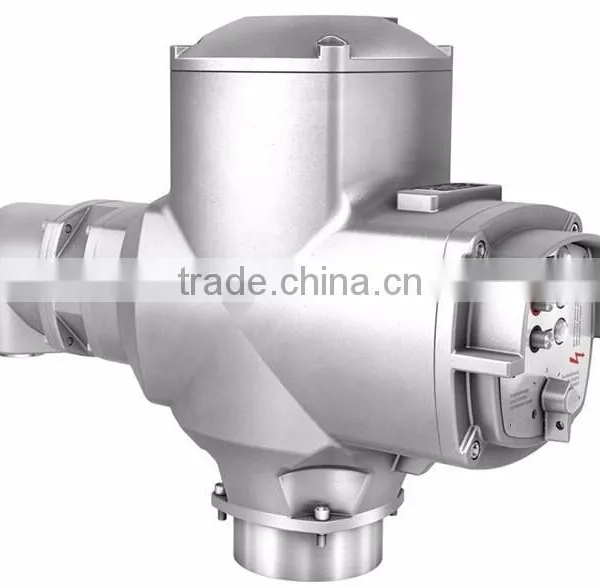

Explosion-proof versions AM
Explosion-proof devices must be used in plants where potentially explosive atmospheres are likely to occur. These devices are designed so that they will not act as ignition source. Their constructive measures prevent the occurrence of ignition sparks or hot surfaces.
Certification is performed in close collaboration with national and international certification bodies.
With the AMExC a control with integral local controls is available for the multi-turn actuators SAEx/SAREx 07.2 - 16.2 and the part-turn actuators SQEx/SQREx 05.2 - 14.2.
Details:
Design features
Modular interface concept for remote control
Local controls with lockable selector switch, push-buttons and indication lights
Programmable control logic ("push-to-run" or "self-retaining")
Programmable type of seating (torque or limit seating)
Separate mounting on wall bracket possible
Motor control via reversing contactors or thyristors (option)
Automatic phase correction
External 24 VDC supply (Option)
Ambient conditions
High enclosure protection
High quality corrosion protection
Wide ambient temperature ranges
Interfaces and features
Control inputs with different voltages (DC/AC)
Potential-free signal relays for status indication
Fieldbus Interface
Functional safety: Up to SIL 2 in selected configurations
Interfaces
Electrical connection via AUMA plug/ socket connector (optionally terminals)
Cable entries in different versions
FO connection for fieldbus Interfaces
Approvals
ATEX (Europe)
Ex de IIC/IIB T4 or T3
Ex d IIC/IIB T4 or T3
IEC (international level)
Ex de IIC/IIB T4 or T3
Ex d IIC/IIB T4 or T3
FM (USA)
FM CLASS I DIV 1 GROUPS (B), C, D T4 (T3C)
FM CLASS II DIV 1 GROUPS E, F, G T4 (T3C)
FM CLASS III DIV 1 T4 (T3)
Russia - ROSTECHNADSOR/EAC (TR-CU)
1ExdeIICT4/T3
1ExdIICT4/T3
