Product Overview:

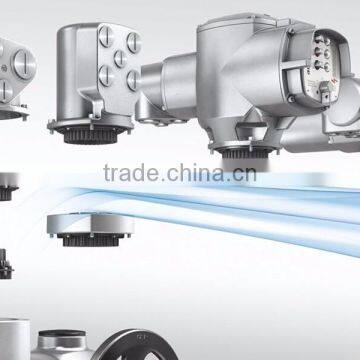

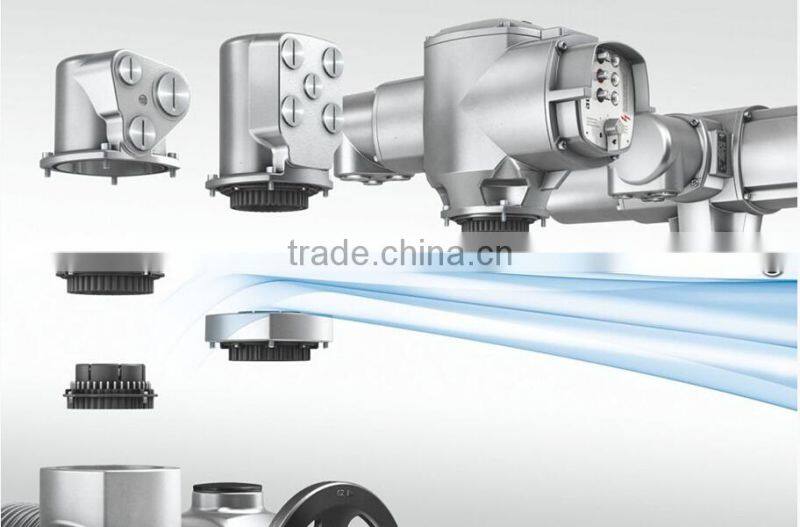

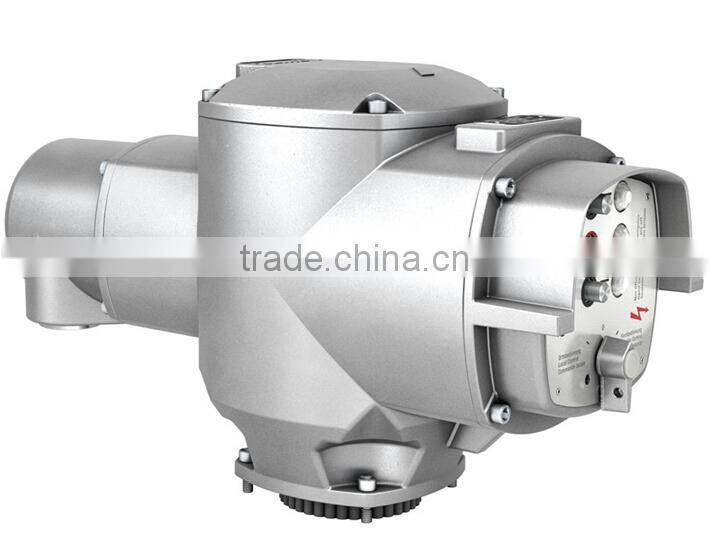

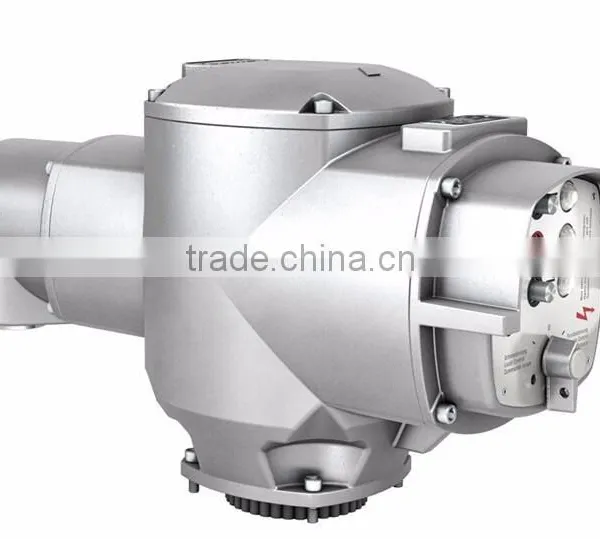

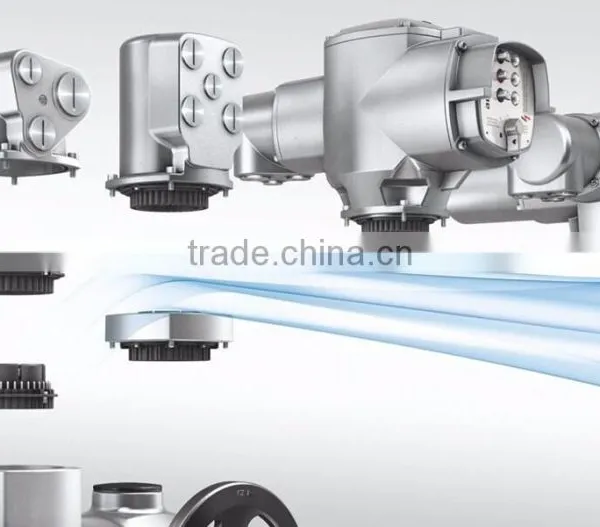

AM controls
AM controls with simple design and defined features is the perfect choice when using parallel signal transmission and if a relatively low number of feedback signals is required.
Few parameters need to be defi ned via sliding switches during commissioning, e.g. type of seating in end positions.
Actuator control is made via operation commands OPEN, STOP, CLOSE.
Reaching an end position and collective fault signals are reported back to the DCS as feedback signals. These signals are visually displayed at the local controls via the indication lights. As an option, the valve position can be transmitted as 0/4 – 20 mA signal to the DCS.
Details:
o Design features
Modular interface concept for remote control
Local controls with lockable selector switch, push-buttons and indication lights
Programmable control logic ("push-to-run" or "self-retaining")
Programmable type of seating (torque or limit seating)
Separate mounting on wall bracket possible
Motor control via reversing contactors or thyristors (option)
Automatic phase correction
External 24 VDC supply (Option)
o Ambient conditions
High enclosure protection
High quality corrosion protection
Wide ambient temperature ranges
o Interfaces and features
Control inputs with different voltages (DC/AC)
Potential-free signal relays for status indication
Fieldbus Interface
Functional safety: Up to SIL 2 in selected configurations
o Interfaces
Electrical connection via AUMA plug/ socket connector (optionally terminals)
Cable entries in different versions
FO connection for fieldbus Interfaces
