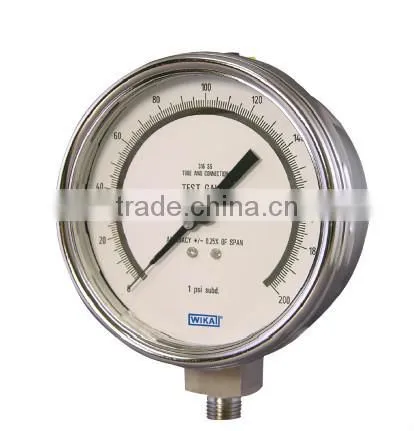

Bourdon Tube Pressure Gauge Stainless Steel Construction Type 332.54 LBM
Applications
- Inspector's test gauge
- Testing and calibration of other pressure measuring instruments
- Suitable for fluid medium which does not clog port or corrode 316 stainless steel
Special Features
- 0.25% full scale accuracy
- Mirror band dial for improved readability
- Knife edge pointer
Standard version
Design
ASME B40.100
Size
4" (100mm)
Accuracy class
• + 0.25% of span (ASME B40.100 Grade 3A) for pressure
range -30" Hg to 600 psi
• + 0.5% of span (ASME B40.100 Grade 2A) for pressure
range > 600 psi and < 2,000 psi
• + 0.25% of span (ASME B40.100 Grade 3A) for pressure
range > 2,000 psi to 20,000 psi
Ranges (All ranges not stocked)
Vacuum 30" Hg
Pressure from 15 psi to 20,000 psi (all ranges not available
in 0.25% accuracy) or other equivalent units of pressure or
vacuum
Bourdon Tube
Material: 316 SS
30"Hg (Vac) to 1,000 psi C-type
1,500 psi to 20,000 psi helical type
Movement
Stainless steel
Dial
White aluminum with black lettering and mirrored band
Pointer
Black aluminum, micrometer adjustable, with knife edge
Case
304 SS with vent plug and polished stainless steel bayonet
ring. Welded case to socket connection
Standard Scale
PSI
Window
Laminated safety glass
Working Range
Steady: Full scale value
Fluctuating: 0.9 x full scale value
Short time: 1.3 x full scale value
Operating Temperature
Ambient: -40°F to 140°F (-40°C to 60°C)
Media: max. 212°F (+100°C)
