8800 MultiVariable Vortex Flowmeter

Xian Wellwork Industrial Co., Ltd.

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Singapore

Model Number:

8800

Payment & Shipping

Payment Methods:

Port of Shipment:

Xi'an

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Singapore

Model Number 8800

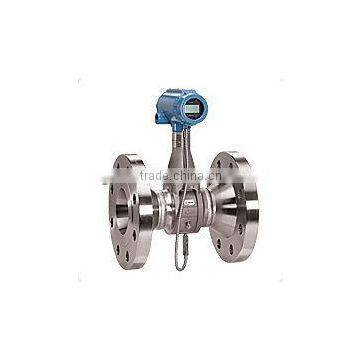

Rosemount 8800 MultiVariable Vortex Flowmeter

1. Product Overview

Rosemount Reliability - Designed with same electronics, sensor, and meter body as the 8800.
Reduced Cost - Eliminates field assembly and welding of separate reducers and piping reducing installed cost by as much as 50%.
Extended Measurable Flow - Low-end flow range is doubled with the Rosemount 8800 Reducer Vortex.
Reduced Project Risk - Reducer Vortex and the Traditional Flanged Vortex have the same face-to-face dimension. As a result either meter can be used without affecting pipe layout.
Available as flanged meter for 1 through 12 inch stainless steel and nickel alloy C materials of construction.
Available with HART® & FOUNDATION™ fieldbus protocols

2. Technical Parameter

Key Specifications
Flowmeter Accuracy	± 0.65 % of rate for liquids ± 1% of rate for gas and steam
Turndown	38:1
Output	4-20 mA with HART® 4-20 mA with HART® and Scalable Pulse Output FOUNDATION™ fieldbus with 2 Analog Input blocks, 1 Backup Link Active Scheduler function block, and 1 Integrator function block (1 PID function block optional)
Wetted Material	Stainless Steel - 316 ⁄ 316L and CF3M Nickel Alloy- C-22 and CW2M Consult factory for other wetted material options
Flange Options	ANSI Class 150 to 1500 DIN PN 10 to PN 160 JIS 10K to 40K Flanges are available in a variety of facings
Operating Temperatures	-330°F to 800°F (-200°C to 427°C)
Line Size	Flanged - ½-in to 12-in (15 to 300 mm) Dual - ½-in to 12-in (15 to 300 mm
Complete Specifications (PDF @ 220Kb)
