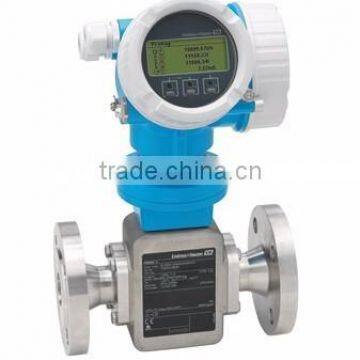

Proline Promag H 200 Electromagnetic flowmeter
The flowmeter for smallest flow rates with genuine loop-powered technology
Product Overview
Promag H is the preferred sensor for applications with highest requirements in the food and beverage and life science industries. Promag H 200 offers in addition genuine, industry-compliant two-wire technology. This enables the device to be seamlessly integrated into existing infrastructures and control systems. Additional advantages are high operational safety in hazardous areas thanks to an intrinsically safe design (Ex ia), and a familiar installation procedure.
Benefits
Flexible installation concept – numerous hygienic process connections
Energy-saving flow measurement – no pressure loss due to cross-section constriction
Convenient device wiring – separate connection compartment
Safe operation – no need to open the device due to display with touch control, background lighting
Automatic recovery of data for servicing
Field of application
The measuring principle is virtually independent of pressure, density, temperature and viscosity
For demanding hygienic applications.
Device properties
Liner made of PFA
Sensor housing made of stainless steel (3A, EHEDG)
Wetted materials CIP, SIP cleanable
Loop-powered technology
Robust two-chamber housing
Plant safety: worldwide approvals (SIL, Haz. area)
Technical information
| Measuring Principle | Electromagnetic | |
| Product headline | The flowmeter for smallest flow rates with genuine loop-powered technology. For demanding hygienic applications. | |
| Sensor features | Flexible installation concept – numerous hygienic process connections. Energy-saving flow measurement – no pressure loss due to crosssection constriction. Maintenance-free – no moving parts. Liner made of PFA. Sensor housing made of stainless steel (3A, EHEDG). | |
| Transmitter features | Convenient device wiring – separate connection compartment. Safe operation – no need to open the device due to display with touch control, background lighting. Integrated verification – Heartbeat Technology™. Loop-powered technology. Robust two-chamber housing. | |
| Nominal diameter range | DN 2 to 25 (1/12 to 1") | |
| Max. measured error | Volume flow: ±0.5 % o.r. ± 2 mm/s (0.08 in/s) | |
| Measuring range | 0.06 dm³/min to 300 m³/h (0.015 to 80 gal/min) | |
| Max. process pressure | PN 40, Class 150, 20K | |
| Medium temperature range | –20 to +150 °C (–4 to +302 °F) | |
| Degree of protection | IP66/67, type 4X enclosure | |
| Display/Operation | 4-line backlit display with touch control (operation from outside) Configuration via local display and operating tools possible Remote display available | |
| Outputs | 4-20 mA HART (passive) Pulse/frequency/switch output (passive) | |
| Digital communication | HART | |
| Hazardous area approvals | ATEX, IECEx, cCSAus | |
