C20 Left Angle to C19 Power Cable - Server Power Cord

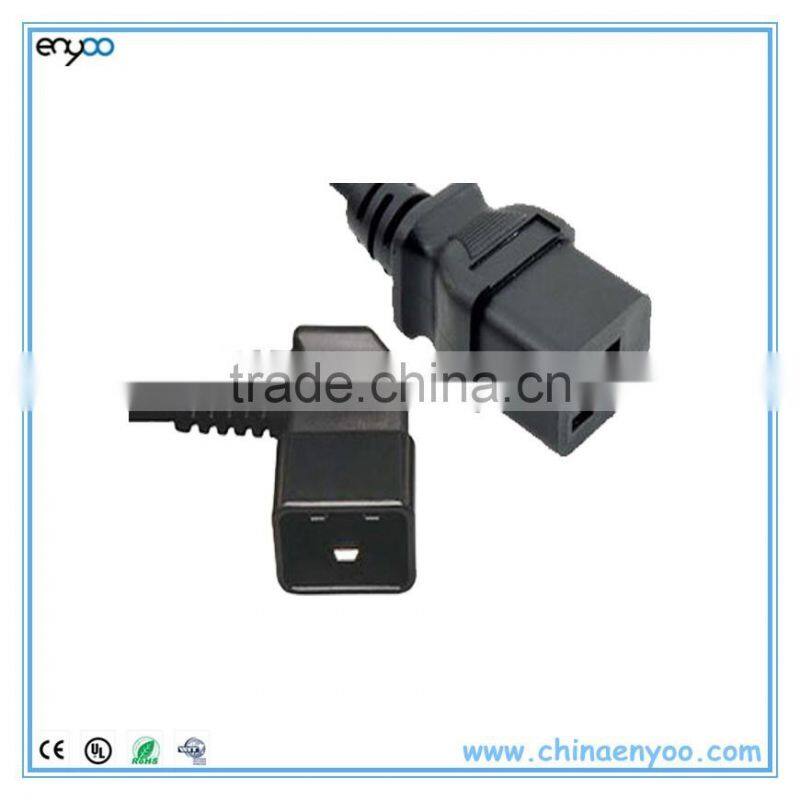

1. Photos of product
2.Products Description:
C20 Left Angle to C19 Power Cable - Server Power Cord
This cable is used to connect Servers to power distribution units (PDUs). It has a left angled C20 connector and a straight C19 connector. It is essential to have the right length power cord in your data center. It maximizes organization and efficiency while preventing interference.
Features
- Length - Any length
- Connector 1 - IEC C20 Left Angle Inlet
- Connector 2 - IEC C19 Straight Outlet
- 20 Amp 250 Volt Rating
- SJT Jacket
- 12 AWG
- Certification: UL listed
| Connector 1 | C20 Left Angle Male | |
| Connector 2 | C19 Female | |
| Gauge | 12 AWG | |
| Amperage | 20 Amps | |
| Voltage | 250 Volts | |
| OD | 11.4mm | |
| Jacket | SJT | |
| Material | PVC |
IEC connectors are the standard connectors as recognized by the International Electrotechical Commission. They are non-locking connectors rated up to 250 volts. The IEC standard uses a numerical approach to distinguish which is the outlet and which is the inlet. All odd numbers (C5, C13, etc.) are the outlets which plug into the even number inlet. The odd number connectors mate with the even number directly after them. For example a C13 plugs into a C14, but will not plug into a C12.
3. Certifications of Product
More product to choose
4. Packing of Product
Packing specification:
1.package:1pcs/poly bag
2.Economic packing:50psper carton
3.N.W:21KGs G.W.:22KGs
4.MEAS:52*39*38CM
