C20 Left Angle to C19 Power Cable - Server Power Cord
1. Photos of product
2.Products Description:

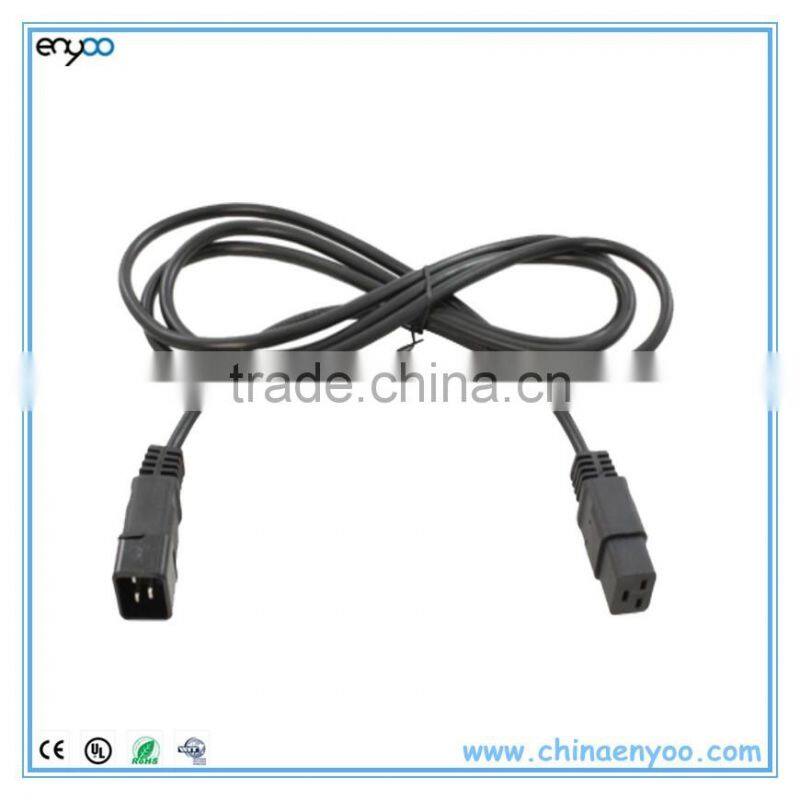

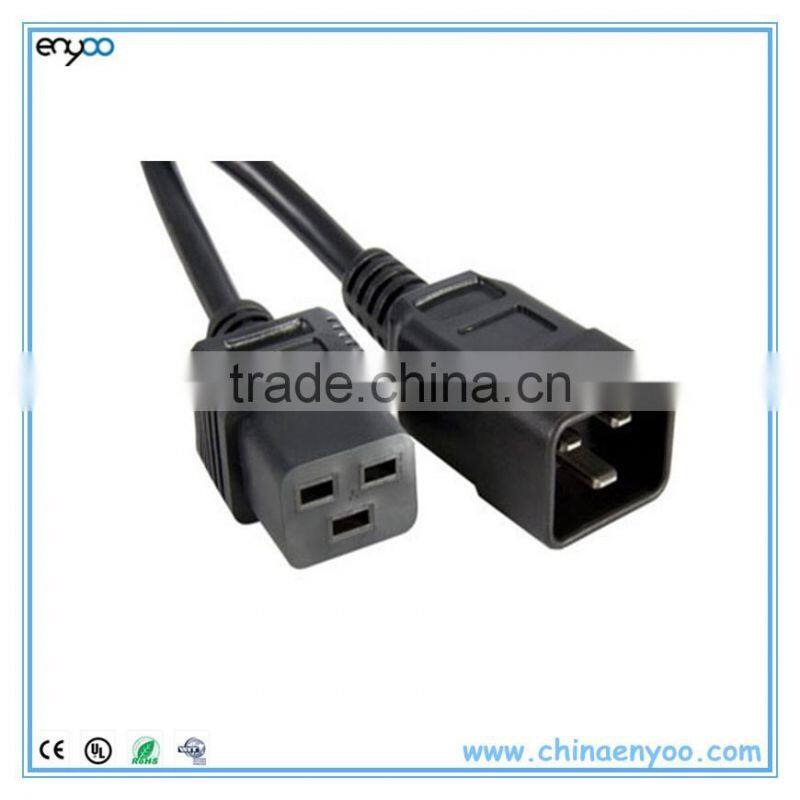

C20 to C19 Power Cord - Black Server Cable
This power cord is typically used to connect servers to power distribution units (PDUs) in data centers. Having the right length power cord is essential to having an organized and optimized data center.
Features:
- Length - Any length

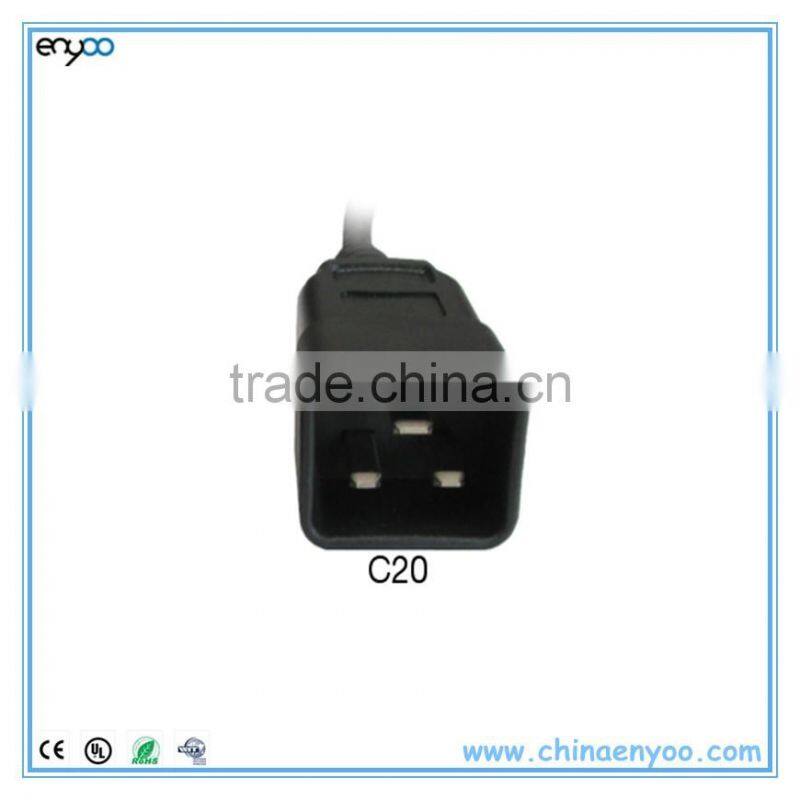

- Connector 1 - IEC C20 (inlet)

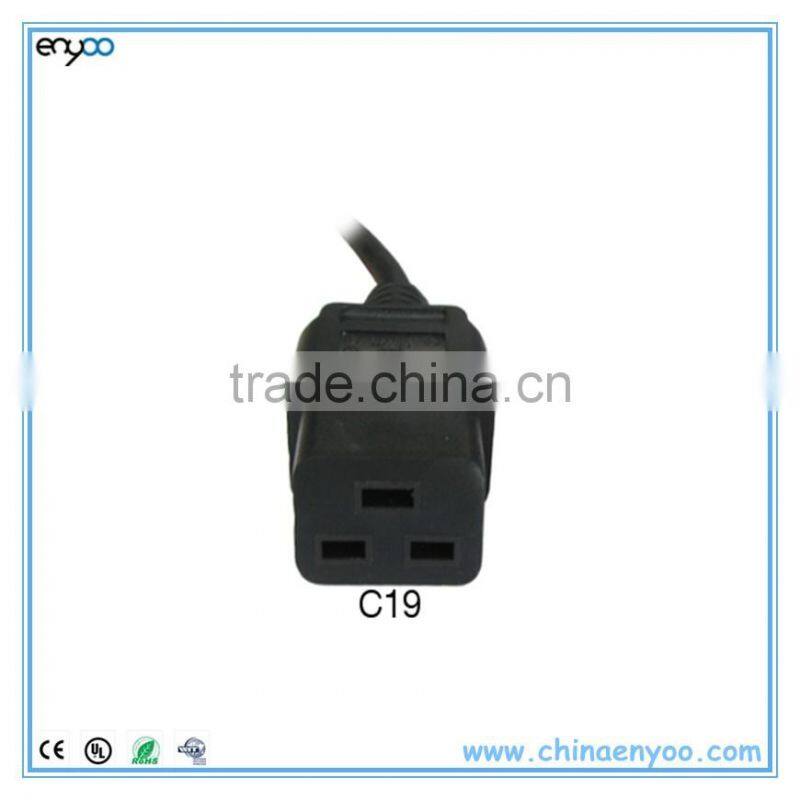

- Connector 2 - IEC C19 (outlet)
- 20 Amps 250 Volt rating
- SJT Jacket
- 12 AWG
- Certiciation: UL Listed, RoHS Compliant
| Connector 1 | C20 | |
| Connector 2 | C19 | |
| Gauge | 12 AWG | |
| Amperage | 20 Amps | |
| Voltage | 250 Volts | |
| OD | 11.4mm | |
| Jacket | SJT | |
| Material | PVC |
IEC connectors are the standard connectors as recognized by the International Electrotechical Commission. They are non-locking connectors rated up to 250 volts. The IEC standard uses a numerical approach to distinguish which is the outlet and which is the inlet. All odd numbers (C5, C13, etc.) are the outlets which plug into the even number inlet. The odd number connectors mate with the even number directly after them. For example a C13 plugs into a C14, but will not plug into a C12.
3. Certifications of Product
More product to choose
4. Packing of Product
Packing specification:
1.package:1pcs/poly bag
2.Economic packing:50psper carton
3.N.W:21KGs G.W.:22KGs
4.MEAS:52*39*38CM
