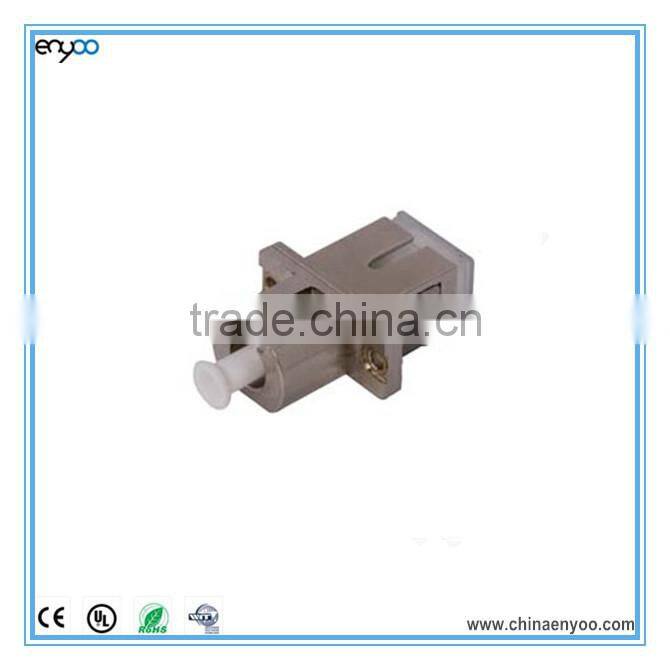

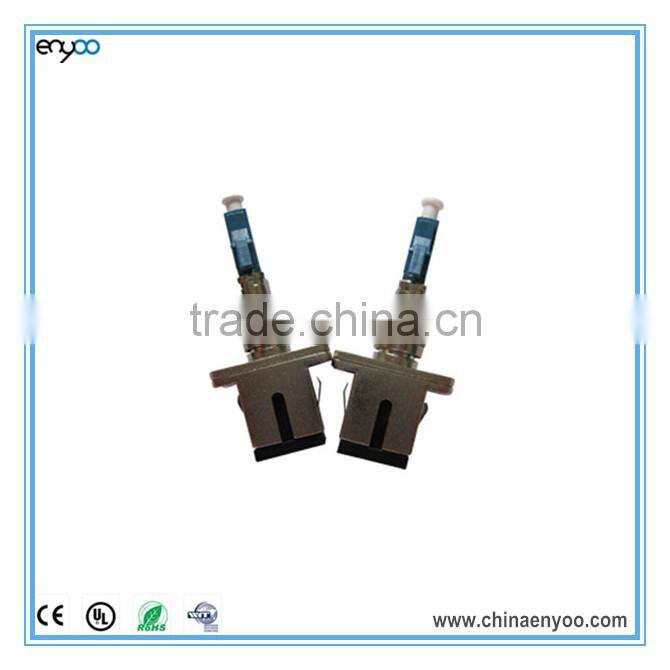

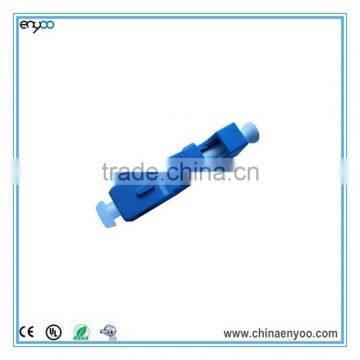

LC-SC Fiber Optic Hybrid Mating Adapters
Enyoo hybrid adapters are used for mating 2 different style connectors. conform to international standards, are quality tested, and are available in singlemode, multimode and many different connector-type configurations.
LC-SC Fiber Optic Hybrid Mating Adapters
Features
Complies with IEC, TIA/EIA, Telcordia standards
High precision alignment sleeve
Low insertion loss and high reconnectability
RoHS, REACH SvHC
Available in plastic or metal body
LC-SC Fiber Optic Hybrid Mating Adapters
Applications
Telecommunications networks
Local area networks
Data processing networks
Cable television Premises distribution
Test and laboratory equipment
Industrial and military applications
Technical Specification
| CERAMIC | PHOSPHOR BRONZE | CONFORMANCE | |
| Insertion Loss (Typ) | 0.1dB | 0.15dB | IEC 61300-3-4 |
| Mating Durability | 500 | IEC 61300-2-2 | |
| Receptacle Retention Force | 2N – 5.9N | IEC 61754-13 | |
| Operating temperature | -25 to +70oC, 12 cycles | IEC 61300-2-22 | |
All Male to Female Adaptors , Female to Female Adaptors available
