Ribbon Cable PLC Splitter

Ribbon Cable PLC Splitter thumbnail-1
Ribbon Cable PLC Splitter photo-1
US$ 5 - 100 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Enyoo or OEM
Model Number:
Ribbon Cable PLC Splitter
Contact Supplier Request Quote Chat Now
Cixi Enyoo Optronics & Appliance Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Enyoo or OEM
Model Number Ribbon Cable PLC Splitter

Specifications

Ribbon Cable PLC Splitter
1. Low IL and PDL
2. High reliability
3. High channel counts
4. Wide wavelength range

Ribbon Cable PLC Splitter Description:



PLC Splitter means planar lightwave circuit splitter, which is based on planar light wave technology, widely used in FTTX,EPOM,BPON,GPON .We launched 1xN,2XN PLC splitter with consistent performance, low optical Insertion loss, low polarization dependent Loss, high reliability and stability , superior environmental and mechanical characteristics, and fast installation. They also enable more effective monitoring and management of fiber optical networks.



All wavelength (1260-1620nm) is not sensitive. And our products meet Telcordia 1209,1221 standard ,ROHS.

The PLC (Planar Light wave Circuit) Splitters are developed based on silica glass wave-guide process with reliable precision aligned fiber pigtail in a miniature package. PLC fiber splitter has many advantages, one semiconductor could realize 1X32 splitting or more, which help make it a small size, and its loss is not sensitive to the working wavelength.



The PLC splitter we offer are:1x2,1x4,1x8,1x16,1x32,1x64,2x4,2x8,2x16,2x32,2x64



Package type:Bare,Fanout type,ABS box(Module),Mini Module,LGX Box,ODF rack type,19' rack type



Ribbon Cable PLC Splitter Features:

Small size and aesthetic appearance;

Installation quick,reliable performance,stability;

Satisfy with industry standards



Ribbon Cable PLC Splitter Applications:

Installed in 19"standard rack;

Equipment to be installed is a cable transfer box when the fiber branches in home;

Equipment to be installed is a customized box when the fiber branches in home.



Ribbon Cable PLC Splitter Advantages:

Simple structure and easily processed;

Good uniformity,in particular the application of PON.



Ribbon Cable PLC Splitter Performance Specifications:



Parameter
 PLC Specifications(Not include the loss of connector)
Operating Wavelength(nm) 1260-1650
Port Type 1x2 1x4 1x8 1x16 1x32 1x64 2x2 2x4 2x8 2x16 2x32 2x64
Insertion Loss(dB) Typical 3.6 6.8 10.0 13.0 16.0 19.5 4.0 7.0 10.5 13.5 16.5 20.5
(P/S)Max 3.8/4.0 7.1/7.3 10.2/10.5 13.5/13.7 16.5/16.8 20.5/21.0 4.1/4.3 7.4/7.6 10.8/11.0 14.3/14.5 17.3/17.5 20.7/21.5
Uniformity(dB) Typical 0.4 0.5 0.5 1.0 1.0 2.5 0.6 0.8 1.0 1.5 2.0 2.0
Max 0.6 0.6 0.8 1.2 1.5 2.5 0.8 0.8 1.5 2.0 2.5 2.5
PDL(dB)Max Typical 0.1 0.1 0.1 0.2 0.2 0.2 0.1 0.1 0.1 0.2 0.2 0.2
Max 0.15 0.15 0.25 0.3 0.3 0.3 0.2 0.2 0.3 0.4 0.4 0.4
Wavelength Department Loss(dB) Typical 0.1 0.1 0.1 0.1 0.2 0.2 0.1 0.1 0.1 0.1 0.2 0.2
Max 0.2 0.2 0.2 0.5 0.5 0.5 0.2 0.2 0.3 0.5 0.5 0.5
Temp. Department Loss(dB) Typical 0.3 0.3 0.3 0.4 0.4 0.4 0.3 0.3 0.3 0.4 0.4 0.4
Max 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5
Directivity(dB) Min 55
Return Loss(dB) Min 55(50)
Operating Temperature( °c ) -40-+85
Storage Temperature( °c ) -40-+85
Fiber Length 1m or Customized
Fiber Type G652, G655, G657(G657 A1), etc.
Connector type Customized



Parameter
 PLC Specifications(Include the loss of connector)
Operating Wavelength(nm) 1260-1650
Port Type 1x2 1x4 1x8 1x16 1x32 1x64 2x2 2x4 2x8 2x16 2x32 2x64
Insertion Loss(dB) Typical 3.9 7.1 10.3 13.3 16.3 19.8 4.3 7.3 10.8 13.8 16.8 20.8
(P/S)Max 4.1/4.3 7.4/7.6 10.5/10.8 13.8/14.0 16.8/17.1 20.8/21.3 4.4/4.7 7.7/7.9 11.1/11.3 14.6/14.8 17.6/17.8 21.0/21.8
Uniformity(dB) Typical 0.4 0.5 0.5 1.0 1.0 2.5 0.6 0.8 1.0 1.5 2.0 2.0
Max 0.6 0.6 0.8 1.2 1.5 2.5 0.8 0.8 1.5 2.0 2.5 2.5
PDL(dB)Max Typical 0.1 0.1 0.1 0.2 0.2 0.2 0.1 0.1 0.1 0.2 0.2 0.2
Max 0.15 0.15 0.25 0.3 0.3 0.3 0.2 0.2 0.3 0.4 0.4 0.4
Wavelength Department Loss(dB) Typical 0.1 0.1 0.1 0.1 0.2 0.2 0.1 0.1 0.1 0.1 0.2 0.2
Max 0.2 0.2 0.2 0.5 0.5 0.5 0.2 0.2 0.3 0.5 0.5 0.5
Temp. Department Loss(dB) Typical 0.3 0.3 0.3 0.4 0.4 0.4 0.3 0.3 0.3 0.4 0.4 0.4
Max 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5
Directivity(dB) Min 55
Return Loss(dB) Min 55(50)
Operating Temperature( °c ) -40-+85
Storage Temperature( °c ) -40-+85
Fiber Length 1m or Customized
Fiber Type G652, G655, G657(G657 A1), etc.
Connector type Customized

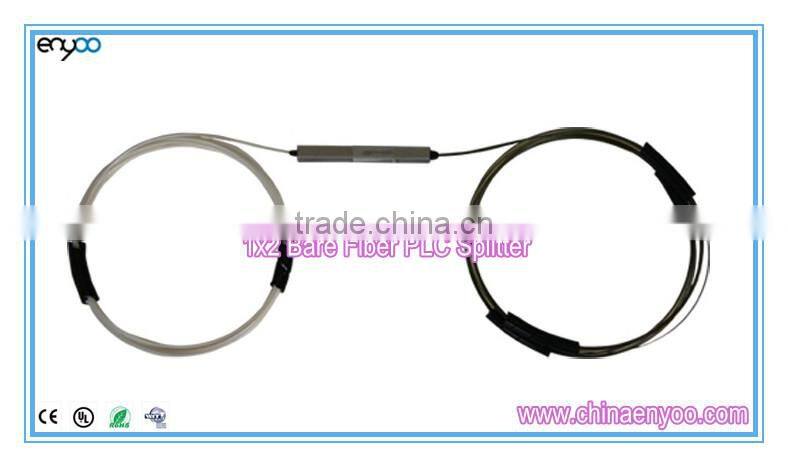

Ribbon Cable PLC Splitter IMage1



Ribbon Cable PLC Splitter

Ribbon Cable PLC Splitter Image2





Ribbon Cable PLC Splitter



WE supply PLC Splitter of  Bare,Fanout type,ABS box(Module),Mini Module,LGX Box,ODF rack type,19' rack type and Also FBT Type Splitter .





Ribbon Cable PLC Splitter



Ribbon Cable PLC SplitterRibbon Cable PLC Splitter

Ribbon Cable PLC Splitter
