Specifications
2x32 PLC Splitter1. Low IL and PDL
2. High reliability
3. High channel counts
4. Wide wavelength range
2x32 PLC Splitter Description:
PLC Splitter means planar lightwave circuit splitter, which is based on planar light wave technology, widely used in FTTX,EPOM,BPON,GPON .We launched 1xN,2XN PLC splitter with consistent performance, low optical Insertion loss, low polarization dependent Loss, high reliability and stability , superior environmental and mechanical characteristics, and fast installation. They also enable more effective monitoring and management of fiber optical networks.
The PLC (Planar Light wave Circuit) Splitters are developed based on silica glass wave-guide process with reliable precision aligned fiber pigtail in a miniature package. PLC fiber splitter has many advantages, one semiconductor could realize 1X32 splitting or more, which help make it a small size, and its loss is not sensitive to the working wavelength.
The PLC splitter we offer are:1x2,1x4,1x8,1x16,1x32,1x64,2x4,2x8,2x16,2x32,2x64
Package type:Bare,Fanout type,ABS box(Module),Mini Module,LGX Box,ODF rack type,19' rack type
2x32 PLC Splitter Features:
Small size and aesthetic appearance;
Installation quick,reliable performance,stability;
Satisfy with industry standards
2x32 PLC Splitter Applications:
Installed in 19"standard rack;
Equipment to be installed is a cable transfer box when the fiber branches in home;
Equipment to be installed is a customized box when the fiber branches in home.
2x32 PLC Splitter Advantages:
Simple structure and easily processed;
Good uniformity,in particular the application of PON.
2x32 PLC Splitter Performance Specifications:
Parameter |
PLC Specifications(Not include the loss of connector) | ||||||||||||
| Operating Wavelength(nm) | 1260-1650 | ||||||||||||
| Port Type | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 2x2 | 2x4 | 2x8 | 2x16 | 2x32 | 2x64 | |
| Insertion Loss(dB) | Typical | 3.6 | 6.8 | 10.0 | 13.0 | 16.0 | 19.5 | 4.0 | 7.0 | 10.5 | 13.5 | 16.5 | 20.5 |
| (P/S)Max | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.8 | 20.5/21.0 | 4.1/4.3 | 7.4/7.6 | 10.8/11.0 | 14.3/14.5 | 17.3/17.5 | 20.7/21.5 | |
| Uniformity(dB) | Typical | 0.4 | 0.5 | 0.5 | 1.0 | 1.0 | 2.5 | 0.6 | 0.8 | 1.0 | 1.5 | 2.0 | 2.0 |
| Max | 0.6 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 | 0.8 | 0.8 | 1.5 | 2.0 | 2.5 | 2.5 | |
| PDL(dB)Max | Typical | 0.1 | 0.1 | 0.1 | 0.2 | 0.2 | 0.2 | 0.1 | 0.1 | 0.1 | 0.2 | 0.2 | 0.2 |
| Max | 0.15 | 0.15 | 0.25 | 0.3 | 0.3 | 0.3 | 0.2 | 0.2 | 0.3 | 0.4 | 0.4 | 0.4 | |
| Wavelength Department Loss(dB) | Typical | 0.1 | 0.1 | 0.1 | 0.1 | 0.2 | 0.2 | 0.1 | 0.1 | 0.1 | 0.1 | 0.2 | 0.2 |
| Max | 0.2 | 0.2 | 0.2 | 0.5 | 0.5 | 0.5 | 0.2 | 0.2 | 0.3 | 0.5 | 0.5 | 0.5 | |
| Temp. Department Loss(dB) | Typical | 0.3 | 0.3 | 0.3 | 0.4 | 0.4 | 0.4 | 0.3 | 0.3 | 0.3 | 0.4 | 0.4 | 0.4 |
| Max | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | |
| Directivity(dB) Min | 55 | ||||||||||||
| Return Loss(dB) Min | 55(50) | ||||||||||||
| Operating Temperature( °c ) | -40-+85 | ||||||||||||
| Storage Temperature( °c ) | -40-+85 | ||||||||||||
| Fiber Length | 1m or Customized | ||||||||||||
| Fiber Type | G652, G655, G657(G657 A1), etc. | ||||||||||||
| Connector type | Customized | ||||||||||||
Parameter |
PLC Specifications(Include the loss of connector) | ||||||||||||
| Operating Wavelength(nm) | 1260-1650 | ||||||||||||
| Port Type | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 2x2 | 2x4 | 2x8 | 2x16 | 2x32 | 2x64 | |
| Insertion Loss(dB) | Typical | 3.9 | 7.1 | 10.3 | 13.3 | 16.3 | 19.8 | 4.3 | 7.3 | 10.8 | 13.8 | 16.8 | 20.8 |
| (P/S)Max | 4.1/4.3 | 7.4/7.6 | 10.5/10.8 | 13.8/14.0 | 16.8/17.1 | 20.8/21.3 | 4.4/4.7 | 7.7/7.9 | 11.1/11.3 | 14.6/14.8 | 17.6/17.8 | 21.0/21.8 | |
| Uniformity(dB) | Typical | 0.4 | 0.5 | 0.5 | 1.0 | 1.0 | 2.5 | 0.6 | 0.8 | 1.0 | 1.5 | 2.0 | 2.0 |
| Max | 0.6 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 | 0.8 | 0.8 | 1.5 | 2.0 | 2.5 | 2.5 | |
| PDL(dB)Max | Typical | 0.1 | 0.1 | 0.1 | 0.2 | 0.2 | 0.2 | 0.1 | 0.1 | 0.1 | 0.2 | 0.2 | 0.2 |
| Max | 0.15 | 0.15 | 0.25 | 0.3 | 0.3 | 0.3 | 0.2 | 0.2 | 0.3 | 0.4 | 0.4 | 0.4 | |
| Wavelength Department Loss(dB) | Typical | 0.1 | 0.1 | 0.1 | 0.1 | 0.2 | 0.2 | 0.1 | 0.1 | 0.1 | 0.1 | 0.2 | 0.2 |
| Max | 0.2 | 0.2 | 0.2 | 0.5 | 0.5 | 0.5 | 0.2 | 0.2 | 0.3 | 0.5 | 0.5 | 0.5 | |
| Temp. Department Loss(dB) | Typical | 0.3 | 0.3 | 0.3 | 0.4 | 0.4 | 0.4 | 0.3 | 0.3 | 0.3 | 0.4 | 0.4 | 0.4 |
| Max | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | |
| Directivity(dB) Min | 55 | ||||||||||||
| Return Loss(dB) Min | 55(50) | ||||||||||||
| Operating Temperature( °c ) | -40-+85 | ||||||||||||
| Storage Temperature( °c ) | -40-+85 | ||||||||||||
| Fiber Length | 1m or Customized | ||||||||||||
| Fiber Type | G652, G655, G657(G657 A1), etc. | ||||||||||||
| Connector type | Customized | ||||||||||||

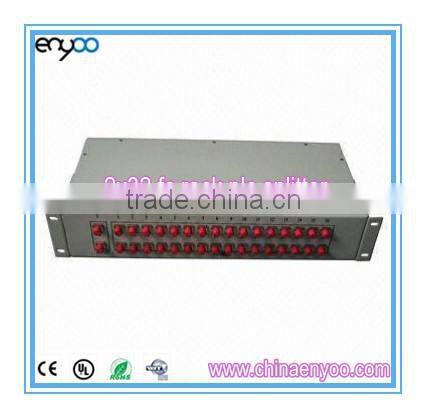

2x32 PLC Splitter IMage1
2x32 PLC Splitter Image2
WE supply PLC Splitter of Bare,Fanout type,ABS box(Module),Mini Module,LGX Box,ODF rack type,19' rack type and Also FBT Type Splitter .
