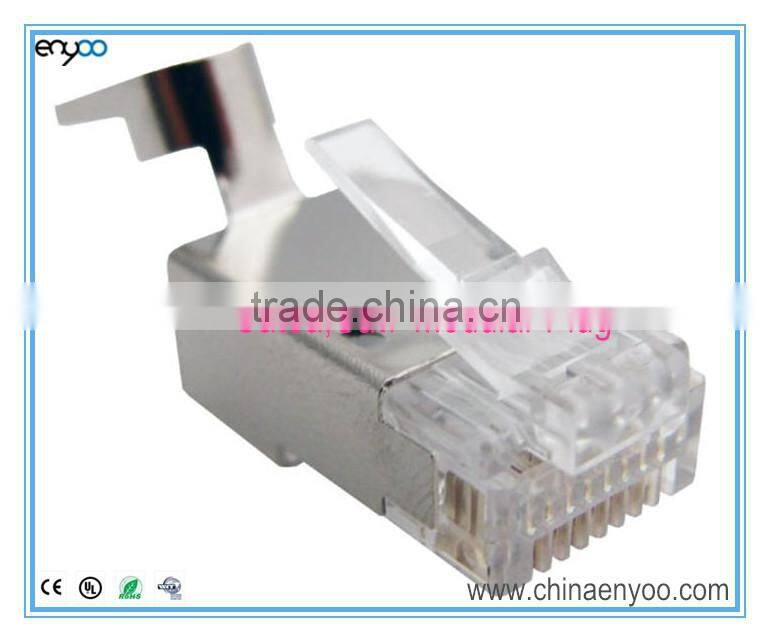

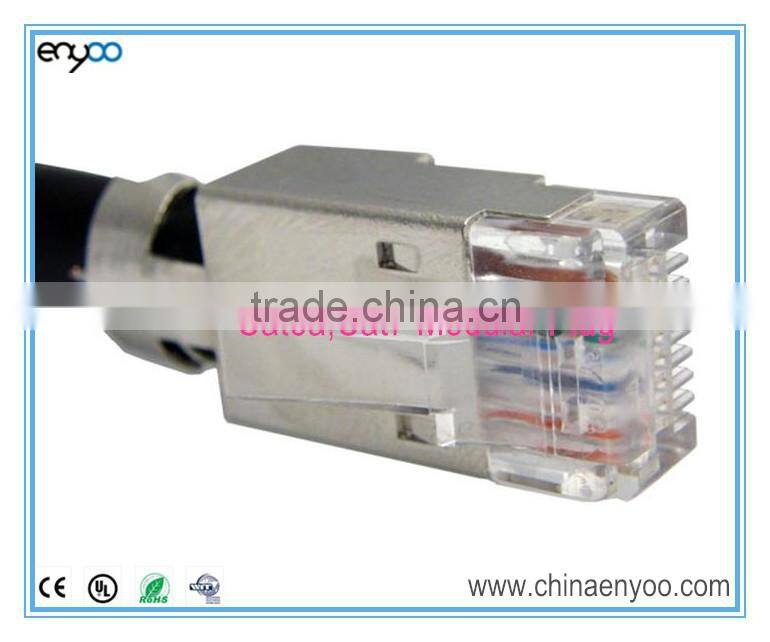

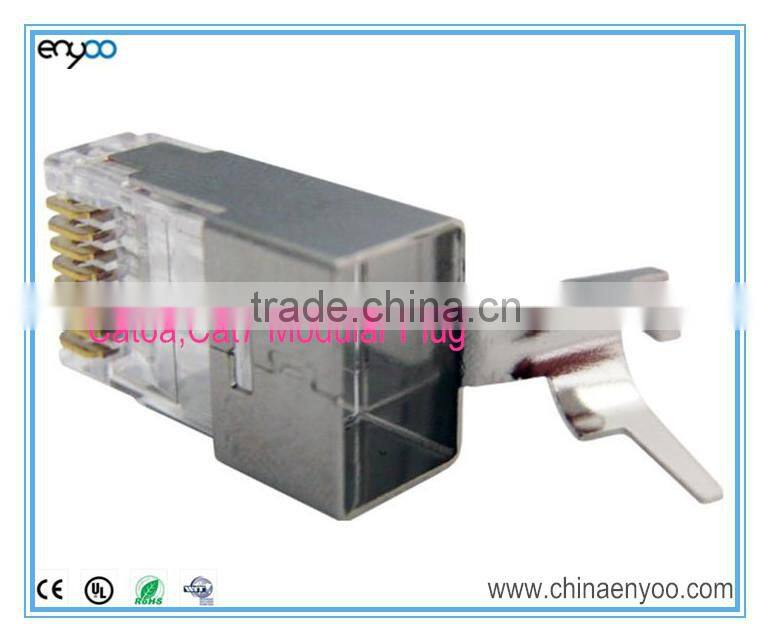

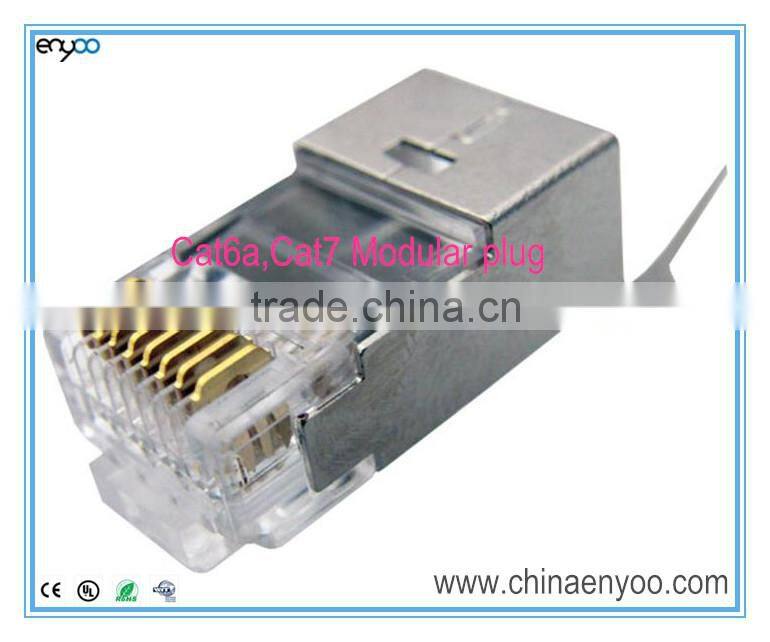

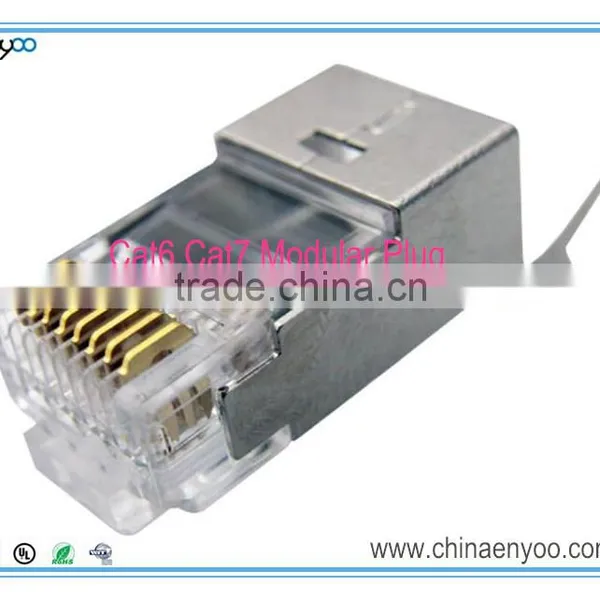

Help CenterRJ45 Connector, Shielded RJ45 Plug for CAT 6, CAT 6A, CAT 7 Solid and Stranded Cable
Related Products
-
Modular Plug, RJ11 Plug, 6 Position, 4 Conductor, For Round Solid and Stranded WiresUS$ 0.003 - 0.007MOQ: 10 Bags -
Modular Plugs, RJ12 Plug, 6 Position, 6 Conductor, For Round Solid or Stranded WireUS$ 0.003 - 0.007MOQ: 10 Bags
-
RJ45 Modular BootsUS$ 0.001 - 0.003MOQ: 10 Packs
-
Keystone Surface Mount Box, 1 Port With or Without Keystone JackUS$ 0.3 - 0.8MOQ: 500 Pieces
-
Surface Mount Outlet Box, 2 Port With or Without Keystone JackUS$ 0.3 - 0.8MOQ: 500 Pieces
Specifications
Cat7 RJ45 Modular Plug1.8 pin x 8 conductor
2.3-50U gold-plated contacts
3.For Solid and Stranded cable
Cat7 RJ45 Modular Plug for Solid and Stranded lan Cable
- Allows you to create custom lengths of Patch cable by buying in bulk and terminating on your own
- 50 micron gold contacts ensure consistent data transfer
- Made with high-impact polycarbonate to withstand wear and tear
- Accepts solid or stranded cable for use in a variety of applications
These RJ45 connectors are designed to work specifically with CAT 6, CAT 6A, and CAT 7 cable. These RJ45 connectors are gold plated and work with solid and stranded cable. They have 8 pins and 8 conductors (8p8c). The inserts are also included—they’re part of the design. The wire alignment insert provides an efficient cable assembly. Over time this will save time and money on any job.
Also featured on this RJ45 connector is a slim strain relief and shielding. The slim strain relief prevents snag tears and maintains the quality of the cable. Shielding your network prevents signal loss and electromagnetic interference.
When pre-terminated patch cords of certain lengths just don’t fit your application, manual termination may be your best bet. These RJ45 Plug accept solid or stranded wire and are sturdily built, ensuring a perfect fit for your next RJ45 cable termination project.
ELECTRICAL:
UL APPLICATIONS: 250 VOLTS AC MAX, AT 2 AMPS.
DIELECTRIC WITHSTANDING VOLTAGE : 500 VOLTS AC.
INSULATION RESISTANCE: 100 MΩ
TERMINATION: RESISTANCE 20mΩ MAX AFTER
ENVIRONMENTAL TESTING.
MECHANICAL:
CABLE-TO-PLUG TENSILE STRENGTH : 20kg MIN.
DURABILITY : 200 MATING CYCLES.
MATERIAL & FINISH:
HOUSING: POLYCARBONATE, UL94V-0 OR UL94V-2.
COLOR: TRANSPARENT OR OTHER COLOR ARE AVAILABLE.
CONTACT BLADE: PHOSPHOR BRONZE.
CONDUCTOR : STRANDED & SOLID WIRE , 24AWG, 26 AWG.
GOLD PLATING: 3u''~50u",ARE AVAILABLE.
| Packing details | MOQ(PCS) | Delivery(Days) |
| 1000pcs/bag,10bags/carton | 10,000 | 7 |
Cat7 RJ45 Modular Plug
1. Shipping Service Avaliable
2.Customer's new design Avaliable
3.OEM Service Avaliable
work products one-stop service Avaiable
Cat7 RJ45 Modular Plug :
Cat7 RJ45 Modular Plug :
Cat7 RJ45 Modular Plug :
