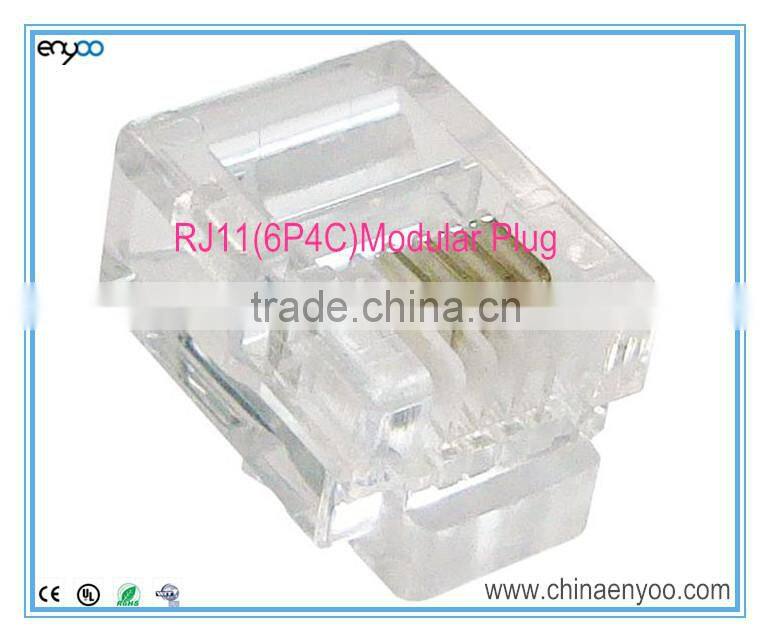

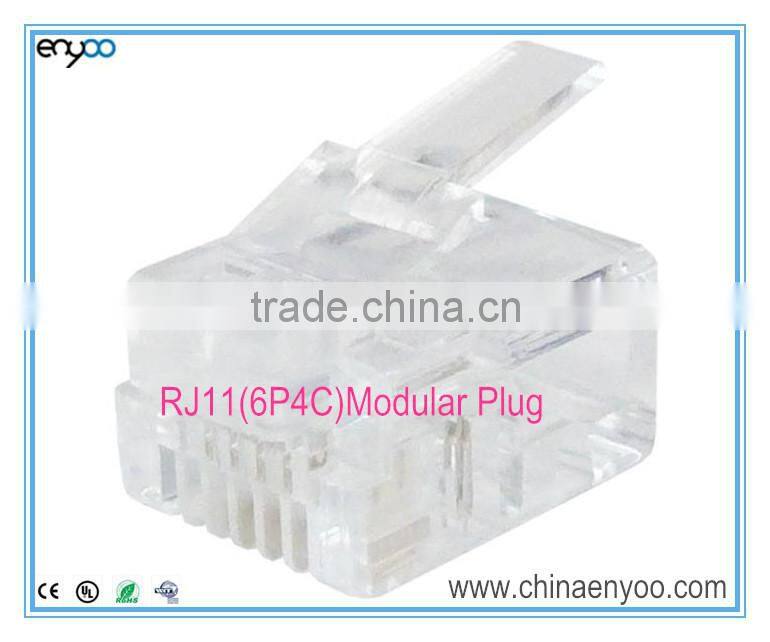

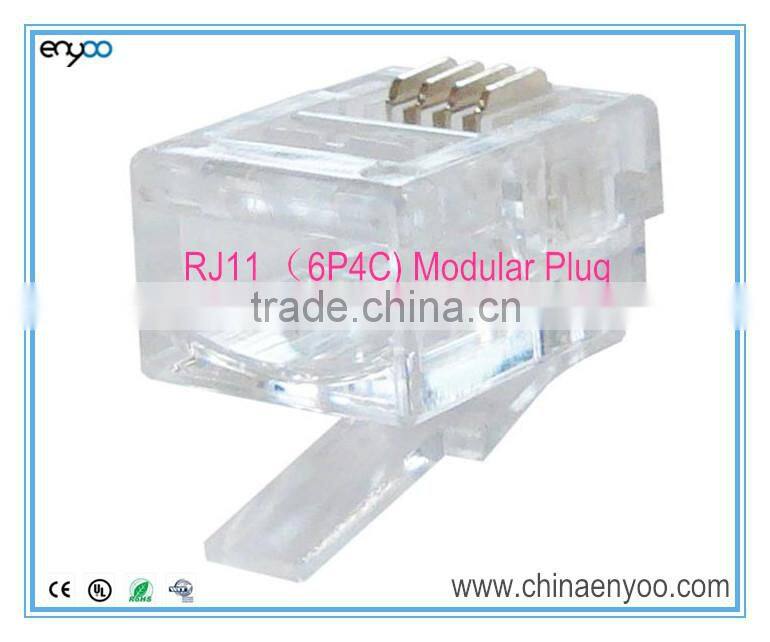

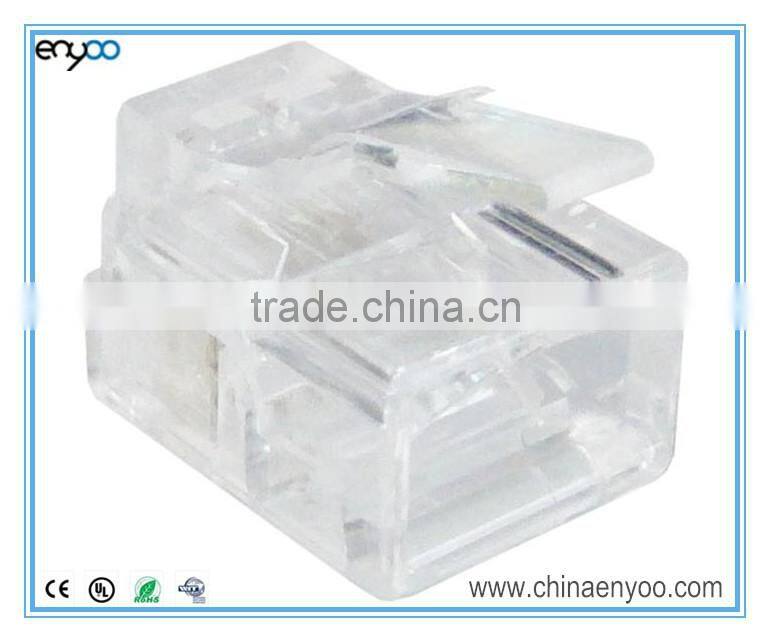

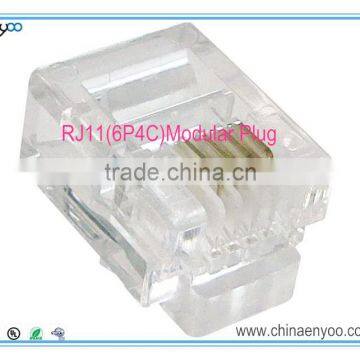

Help CenterModular Plug, RJ11 Plug, 6 Position, 4 Conductor, For Round Solid and Stranded Wires
Related Products
-
Modular Plugs, RJ12 Plug, 6 Position, 6 Conductor, For Round Solid or Stranded WireUS$ 0.003 - 0.007MOQ: 10 Bags -
RJ45 Modular BootsUS$ 0.001 - 0.003MOQ: 10 Packs
-
Keystone Surface Mount Box, 1 Port With or Without Keystone JackUS$ 0.3 - 0.8MOQ: 500 Pieces
-
Surface Mount Outlet Box, 2 Port With or Without Keystone JackUS$ 0.3 - 0.8MOQ: 500 Pieces
-
RJ11,RJ12,RJ45 Modular Surface Mount JackUS$ 0.1 - 0.2MOQ: 500 Pieces
Specifications
RJ11 plug1.6 pin x 4 conductor
2.gold-plated contacts
3.use for telephone cord
UTP RJ11 plug for Solid and Stranded lan Cable
- Allows you to create custom lengths of telephone cord by buying in bulk and terminating on your own
- 50 micron gold contacts ensure consistent data transfer
- Made with high-impact polycarbonate to withstand wear and tear
- Accepts solid or stranded cable for use in a variety of applications
When pre-terminated telephone cords of certain lengths just don’t fit your application, manual termination may be your best bet. These RJ11 plug accept solid or stranded wire and are sturdily built, ensuring a perfect fit for your next RJ11 cable termination project.
Enyoo Cables unshielded RJ11 telephone plugs are made with high standards, keeping our customer and their phone systems in mind.Even with something as small as an RJ11 plug, it must be made right and it must work right. These unshielded RJ11’s work with solid and stranded cable with 6pins (gold plated) and 4 conductors.
Features:
Gold Plated Contacts
Works On Round Solid Conductors
Transparent Housing For Easy Conductor Alignment
6 Pins x 4 Conductors
Fits 24 AWG - 28 AWG (0.96 - 1.02 mm OD) Wires
ELECTRICAL:
UL APPLICATIONS: 250 VOLTS AC MAX, AT 2 AMPS.
DIELECTRIC WITHSTANDING VOLTAGE : 500 VOLTS AC.
INSULATION RESISTANCE: 100 MΩ
TERMINATION: RESISTANCE 20mΩ MAX AFTER
ENVIRONMENTAL TESTING.
MECHANICAL:
CABLE-TO-PLUG TENSILE STRENGTH : 20kg MIN.
DURABILITY : 200 MATING CYCLES.
MATERIAL & FINISH:
HOUSING: POLYCARBONATE, UL94V-0 OR UL94V-2.
COLOR: TRANSPARENT OR OTHER COLOR ARE AVAILABLE.
CONTACT BLADE: PHOSPHOR BRONZE.
CONDUCTOR : STRANDED & SOLID WIRE , 24AWG, 26 AWG.
GOLD PLATING: 3u''~50u",ARE AVAILABLE.
| Packing details | MOQ(PCS) | Delivery(Days) |
| 1000pcs/bag,10bags/carton | 10,000 | 7 |
RJ11 plug
1. Shipping Service Avaliable
2.Customer's new design Avaliable
3.OEM Service Avaliable
work products one-stop service Avaiable
RJ11 plug:
RJ11 Plug:
RJ11 Connector :
RJ11 6p4c modular plug :
