BONA Auto Drain Solenoid Valves for Air Compressor, 1/4", 1/2"

BONA Auto Drain Solenoid Valves for Air Compressor, 1/4", 1/2" thumbnail-1
BONA Auto Drain Solenoid Valves for Air Compressor, 1/4", 1/2" photo-1
Negotiable MOQ: 20 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Other, Diaphragm, Direct Acting
Configuration:
Portable
Power Source:
Gasoline
Contact Supplier Request Quote Chat Now
Wenling Bona Valve Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other, Diaphragm, Direct Acting
Configuration Portable
Power Source Gasoline
Lubrication Style Oil-free
Mute Yes
Place of Origin Zhejiang, China
Brand Name BONA
Model Number ZCS-720; ZCS-721; ZCS-722
Voltage 220V AC
After-sales Service Provided No overseas service provided

Specifications

auto drain solenoid valves
1/4",1/2"
Preset close and open time
With hand test button
Normally Close

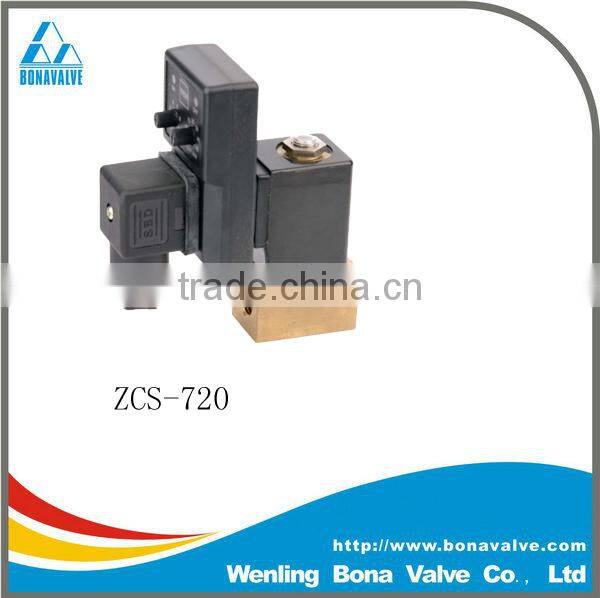

(1) Product Image:





BONA Auto Drain Solenoid Valves for Air Compressor, 1/4", 1/2"

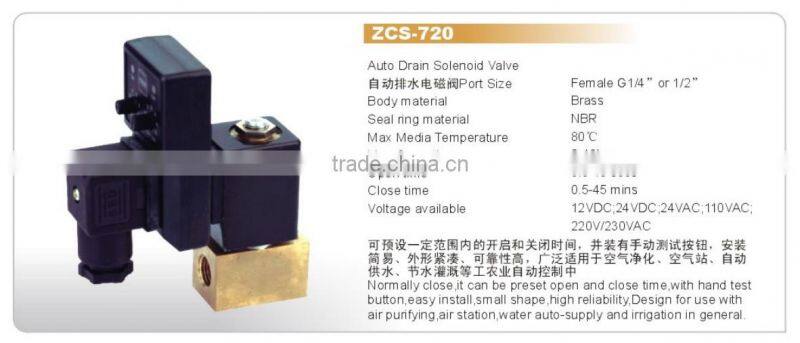

(2) Product Specification:

BONA Auto Drain Solenoid Valves for Air Compressor, 1/4", 1/2"

(3) Contact Information:

BONA Auto Drain Solenoid Valves for Air Compressor, 1/4", 1/2"

Application: air compressor, filer drier, oil/water segregator, refrigerant compressed , air drying machine, air compressor drip feet, and so on.

------------------------------------------------------------------------------

Feature: the valve is made up of electronic timer and solenoid valve, which can make the compressor condenstates water drain automatically.

------------------------------------------------------------------------------

Name: auto drain solenoid valve, timer valve and so on.

------------------------------------------------------------------------------



Specification:

Orifice:

4mm
Port size: Female G 1/4"; 1/2" (NPT upon request)
Port NO.: 2/2way
On-off state: Normally close
Media: Water in general
Max valve pressure: 16bar
Body material: Brass
Seal ring material: NBR
Max media temperature: 80oC
Voltage available: DC 12V;  DC 24V;  12V/50; 24V/50; 110V/50; 220V/230V/50
Protection class: IP 65



------------------------------------------------------------------------------

Remark: we accept your LOGO laser on coils.
