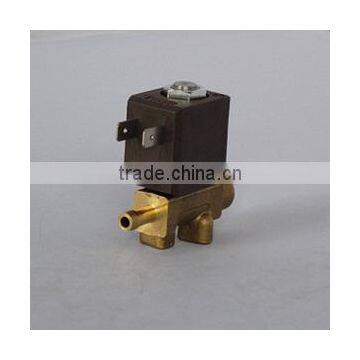

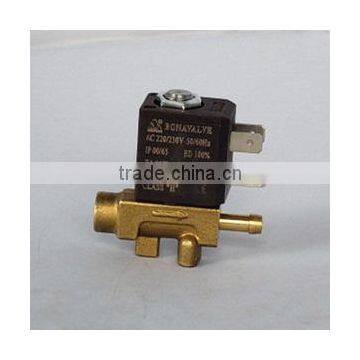

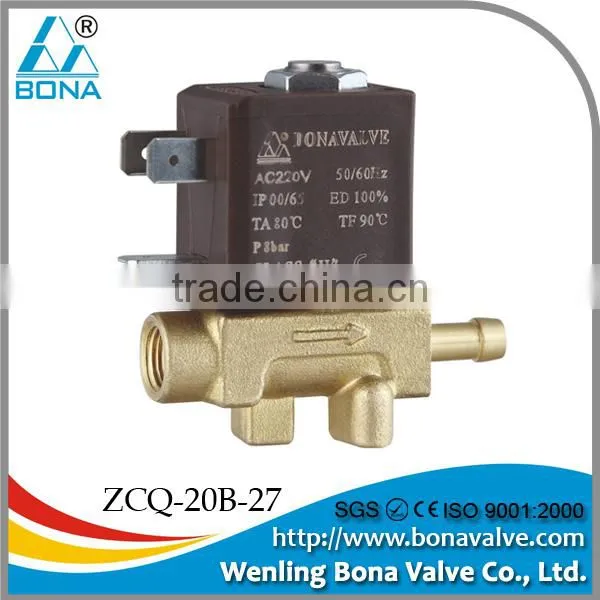

1/8X6.5mm Brass Welding Machine DC 24V 36V Air Solenoid Valve ZCQ-20B-27

1/8X6.5mm Brass Welding Machine DC 24V 36V Air Solenoid Valve ZCQ-20B-27 photo-1
1/8X6.5mm Brass Welding Machine DC 24V 36V Air Solenoid Valve ZCQ-20B-27 photo-2
1/8X6.5mm Brass Welding Machine DC 24V 36V Air Solenoid Valve ZCQ-20B-27 photo-3
1/8X6.5mm Brass Welding Machine DC 24V 36V Air Solenoid Valve ZCQ-20B-27 photo-4
1/8X6.5mm Brass Welding Machine DC 24V 36V Air Solenoid Valve ZCQ-20B-27 photo-5
US$ 6 - 15 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Diaphragm
Pressure:
Low Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Standard or Nonstandard Standard
Structure Diaphragm
Pressure Low Pressure
Power Solenoid
Material Plastic
Temperature of Media Medium Temperature
Media Water
Port Size 1/8X6.5mm
Place of Origin Zhejiang, China
Model Number ZCQ-20B-27
Brand Name BONAVALVE
Application General

1/8X6.5mm brass welding machine DC 24V 36V air solenoid valve ZCQ-20B-27



details

1. Description



Body material

Brass

Seal Material

NBR:0°C~90°C, EPDM:0°C~120°C,

Port size

1/8X6.5mm

Port thread

G,NPT,PT

Orifice

2.2mm

Temperature

0°C to 120 °C

Medium

Air, water,steam etc.

Pressure

0-8bar

Voltage

DC12V,24V,36V,42V,

AC12V,24V,36V,42V,110V,220V

others upon request

Tolerance

±10%

Coil

IP 65,100% ED



2. Picture

  1/8X6.5mm brass welding machine DC 24V 36V air solenoid valve ZCQ-20B-27     1/8X6.5mm brass welding machine DC 24V 36V air solenoid valve ZCQ-20B-27     1/8X6.5mm brass welding machine DC 24V 36V air solenoid valve ZCQ-20B-27



  1/8X6.5mm brass welding machine DC 24V 36V air solenoid valve ZCQ-20B-27       1/8X6.5mm brass welding machine DC 24V 36V air solenoid valve ZCQ-20B-27       1/8X6.5mm brass welding machine DC 24V 36V air solenoid valve ZCQ-20B-27



3. Production line

1/8X6.5mm brass welding machine DC 24V 36V air solenoid valve ZCQ-20B-27



4.Certificates



1/8X6.5mm brass welding machine DC 24V 36V air solenoid valve ZCQ-20B-27



5. Our service



We have more than 12 years experience in solenoid valves.

Excellent quality control is one of our main principles.

Our design, producing and testing are strictly complied with ISO9001 standard.

Now our products are being exported all over the world.

We provide OEM service, accept customer label, develop the product with your drawings or samples.

Any question, will be replyed within 24 hours.



 6. Other terms



1) About Samples

 We provide samples for your making test, you could choose UPS, DHL, EMS, FEDEX, TNT or other express company for the delivery. Tracking number will be informed you ASAP.



2) About Packing

Inner packing: white box, color boxes (upon request), Outer packing: cartons or pallets



3) Terms of payment:

We accept T/T, L/C, Western union, Papal



4)Terms of Shipment:

About 20-25days after receiving deposit.



5)Ports of shipment:

Ningboor shanghai Port, by sea or air.



6)Gurantee:

One year since delivery.



7)Inspection:

100% testing before delivery.



Welcome to choose our products, we are ready for you!
