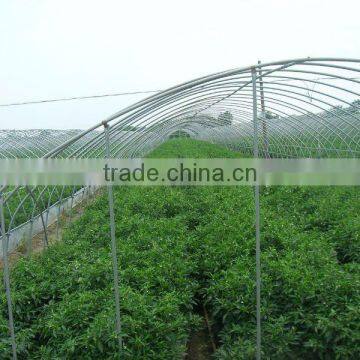

large plastic house1-Plastic Green house
2-Galvanized Steel Structure,10 year warrnty.
3-Covering Film
large plastic house
1. Structure Specification: The main structure is consisted by Main Column, Side Column, Inside Colum, End Side Column, Gutter and Arch & Post over the Gutters and lattice-bars. 10 year warranty for the general structure.
2. Covering Material: (1) The roof and the side are covered by 150micron film, 3 year warranty and 5 year life. (2) Film is fixed by special groove and plastic coated wire. (3) Insect screen is used to prevent insect from entering into the house on ventilation.
3. Technical Parameter Wind Load: 130KM/H, Snow Load: 0.28KN/m2, Max. Rainwater Running Capacity140mm/h
4. Connects. All connectors are Jointed by bolt,nut and washer and so on. No welding is required.
5. Ventilation Film Roll-Up system on two sides or roof is optional.
6-Standars Span is 8meter and 9.6meter,length is 4m*n. Your specification is OK.
