Help CenterASTM, GB, BS,DIN,JIS, AISI Non-alloy Steel Wire Rope Ungalvanized
Related Products
Specifications
ASTM, GB, BS,DIN,JIS, AISI non-alloy steel wire rope ungalvanizedStructure:6x19,6x37,6x19s,7x19,6x36,6x26...
Dia.:6~30mm
ASTM, GB, BS,DIN,JIS, AISI non-alloy steel wire rope ungalvanized
Structure:6x19,6x37,6x19s,7x19,6x36,6x26...
Dia.:6~30mm
1)Structure:6x19,6x37,6x19S,6X19w,7x19,6x26,6x36W,6X26WS,6X7,7X7,6X37S,6X24+7,6X12...
2)Diameter:6mm~30mm
3)Tensile strength:1470~1960MPa
4)Core:steel core or fiber core
5)Surface:ungalvanized (oiled or not)
6)Standard:ASTM,AISI,DIN,JIS,GB,BS
7)Meterial:high carbon:60#,70#,82A,82B...

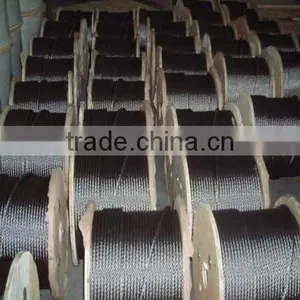

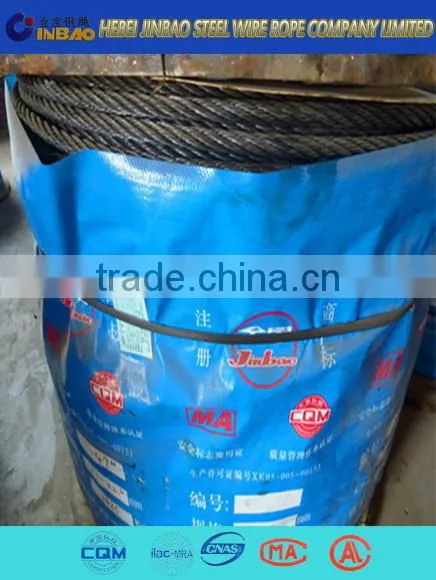

8)Packaging:in wooden reels,or in iron reels, or in coils, wrapped with plastic film inside and PVC woven outside.
9)Length: 1000m/reel ,or50~100kg/coil,or according to your requirement.
Please refer to the technical data of mining steel ropes:
| 6*19 | |||||||||||
| Nominal Diameter/ mm | Weight /(kg/100m) | Tensile Strength/Mpa | |||||||||
| 1570 | 1670 | 1770 | 1870 | ||||||||
| Min breaking force/KN | |||||||||||
| natural fiber core | synthetic fiber core | steel core | fiber cre | steel core | fiber core | steel core | fiber core | steel core | fiber core | steel core | |
| 6 | 12.6 | 12.4 | 14.4 | 17.4 | 18.8 | 18.5 | 20 | 19.6 | 21.2 | 20.7 | 22.4 |
| 7 | 17.2 | 16.9 | 19.6 | 23.6 | 25.5 | 25.1 | 27.2 | 26.6 | 28.8 | 28.1 | 30.4 |
| 8 | 22.5 | 22 | 25.6 | 30.8 | 33.4 | 32.8 | 35.5 | 34.8 | 37.6 | 36.7 | 39.7 |
| 9 | 28.4 | 27.9 | 32.4 | 39 | 42.2 | 41.6 | 44.9 | 44 | 47.6 | 46.5 | 50.3 |
| 10 | 35.1 | 34.4 | 40 | 48.2 | 52.1 | 51.3 | 55.4 | 54.4 | 58.8 | 57.4 | 62.1 |
| 11 | 42.5 | 41.6 | 48.4 | 58.3 | 63.1 | 62 | 67.1 | 65.8 | 71.1 | 69.5 | 75.1 |
| 12 | 50.5 | 50 | 57.6 | 69.4 | 75.1 | 73.8 | 79.8 | 78.2 | 84.6 | 82.7 | 89.4 |
| 13 | 59.3 | 58.1 | 67.6 | 81.5 | 88.1 | 86.6 | 93.7 | 91.8 | 99.3 | 97 | 105 |
| 14 | 68.8 | 67.4 | 78.4 | 94.5 | 102 | 100 | 109 | 107 | 115 | 113 | 122 |
| 16 | 89.9 | 88.1 | 102 | 123 | 133 | 131 | 142 | 139 | 150 | 147 | 159 |
| 18 | 114 | 111 | 130 | 156 | 169 | 166 | 180 | 176 | 190 | 186 | 201 |
| 20 | 140 | 138 | 160 | 193 | 208 | 205 | 222 | 217 | 235 | 230 | 248 |
| 22 | 170 | 166 | 194 | 233 | 252 | 248 | 268 | 263 | 284 | 278 | 300 |
| 24 | 202 | 198 | 230 | 278 | 300 | 295 | 319 | 313 | 338 | 331 | 358 |
| 26 | 237 | 233 | 270 | 326 | 352 | 346 | 375 | 367 | 397 | 388 | 420 |
| 28 | 275 | 270 | 314 | 378 | 409 | 402 | 435 | 426 | 461 | 450 | 487 |
| 30 | 316 | 310 | 360 | 434 | 469 | 461 | 499 | 489 | 529 | 517 | 559 |
| 32 | 359 | 352 | 410 | 494 | 534 | 525 | 568 | 557 | 602 | 588 | 636 |
| 34 | 406 | 398 | 462 | 557 | 603 | 593 | 641 | 628 | 679 | 664 | 718 |
6*37 | |||||||||||
Nominal Diameter/ mm |
Weight /(kg/100m) |
Tensile Strength/Mpa |
|||||||||
1570 |
1670 |
1770 |
1870 |
||||||||
Min Breaking Force/KN | |||||||||||
natural fiber core |
synthetic fiber core |
steel core |
fiber cre |
steel core |
fiber core |
steel core |
fiber core |
steel core |
fiber core |
steel core |
|
6 |
12.5 |
12.1 |
14.4 |
16.7 |
18.0 |
17.7 |
19.2 |
18.8 |
20.3 |
19.9 |
21.5 |
7 |
17.0 |
16.5 |
19.6 |
22.7 |
24.5 |
24.1 |
26.1 |
25.6 |
27.7 |
27.0 |
29.2 |
8 |
22.1 |
21.6 |
25.6 |
29.6 |
32.1 |
31.5 |
34.1 |
33.4 |
36.1 |
35.3 |
38.2 |
9 |
28.0 |
27.3 |
32.4 |
37.5 |
40.6 |
39.9 |
43.2 |
42.3 |
45.7 |
44.7 |
48.3 |
10 |
34.6 |
33.7 |
40 |
46.3 |
50.1 |
49.3 |
53.3 |
52.2 |
56.5 |
55.2 |
59.7 |
11 |
41.9 |
40.8 |
48.4 |
56.0 |
60.6 |
59.6 |
64.5 |
63.2 |
68.3 |
66.7 |
72.2 |
12 |
49.8 |
48.5 |
57.6 |
66.7 |
72.1 |
70.9 |
76.7 |
75.2 |
81.3 |
79.4 |
85.9 |
13 |
58.5 |
57.0 |
67.6 |
78.3 |
84.6 |
83.3 |
90.0 |
88.2 |
95.4 |
93.2 |
101 |
14 |
67.8 |
66.1 |
78.4 |
90.8 |
98.2 |
96.6 |
104 |
102 |
111 |
108 |
117 |
16 |
88.6 |
86.3 |
102 |
119 |
128 |
126 |
136 |
134 |
145 |
141 |
153 |
18 |
112 |
109 |
130 |
150 |
162 |
160 |
173 |
169 |
183 |
179 |
193 |
20 |
138 |
135 |
160 |
185 |
200 |
197 |
213 |
209 |
226 |
221 |
239 |
22 |
167 |
163 |
194 |
224 |
242 |
238 |
258 |
253 |
273 |
267 |
289 |
24 |
199 |
194 |
230 |
267 |
288 |
284 |
307 |
301 |
325 |
318 |
344 |
26 |
234 |
228 |
270 |
313 |
339 |
333 |
360 |
353 |
382 |
373 |
403 |
28 |
271 |
264 |
314 |
363 |
393 |
386 |
418 |
409 |
443 |
432 |
468 |
30 |
311 |
303 |
360 |
417 |
451 |
443 |
479 |
470 |
508 |
496 |
537 |
32 |
354 |
345 |
410 |
474 |
513 |
504 |
546 |
535 |
578 |
565 |
611 |
34 |
400 |
390 |
462 |
535 |
579 |
570 |
616 |
604 |
653 |
638 |
690 |

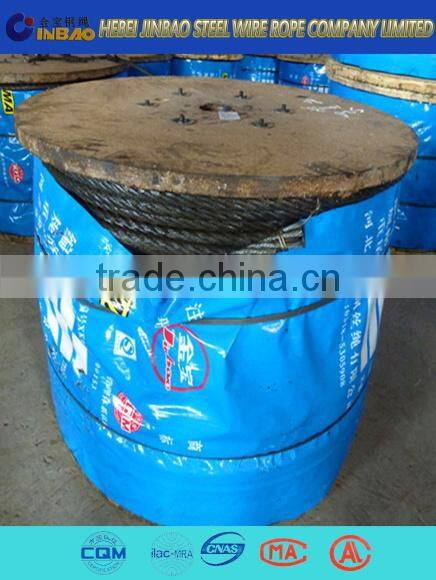

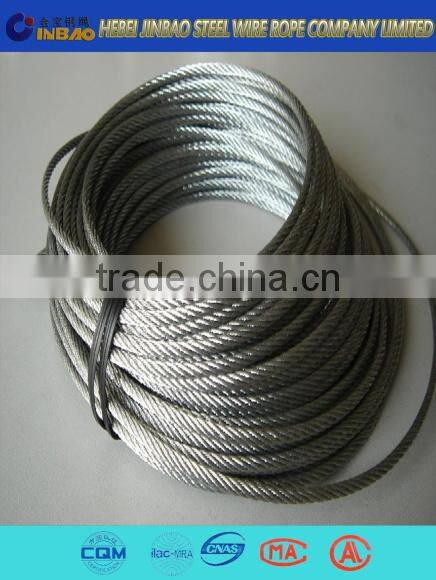

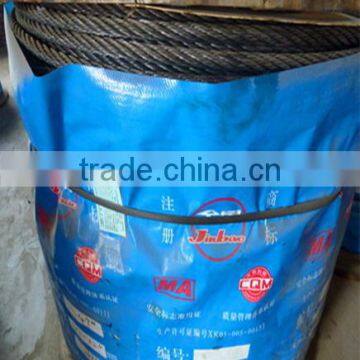

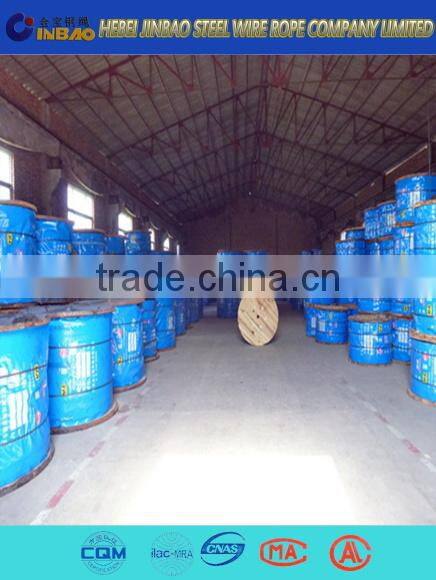

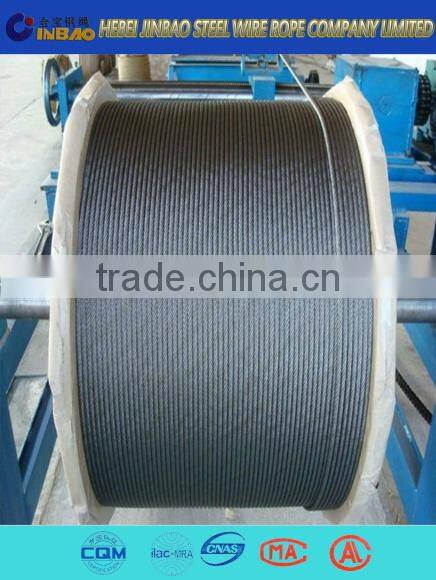

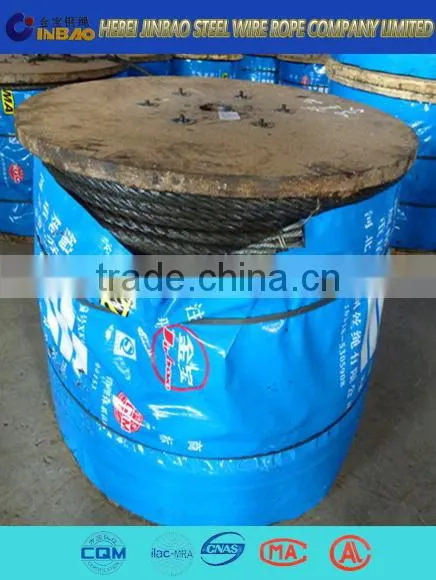

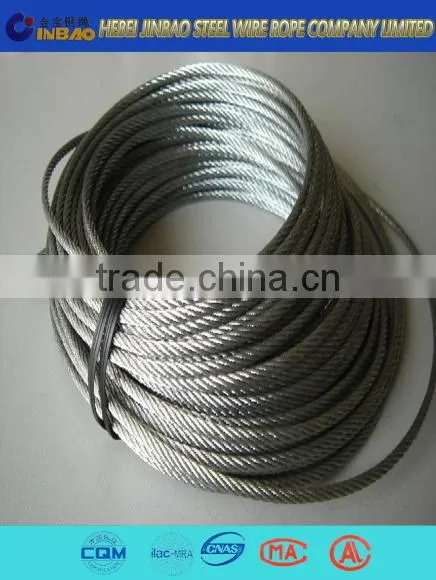

Finished product pictures:

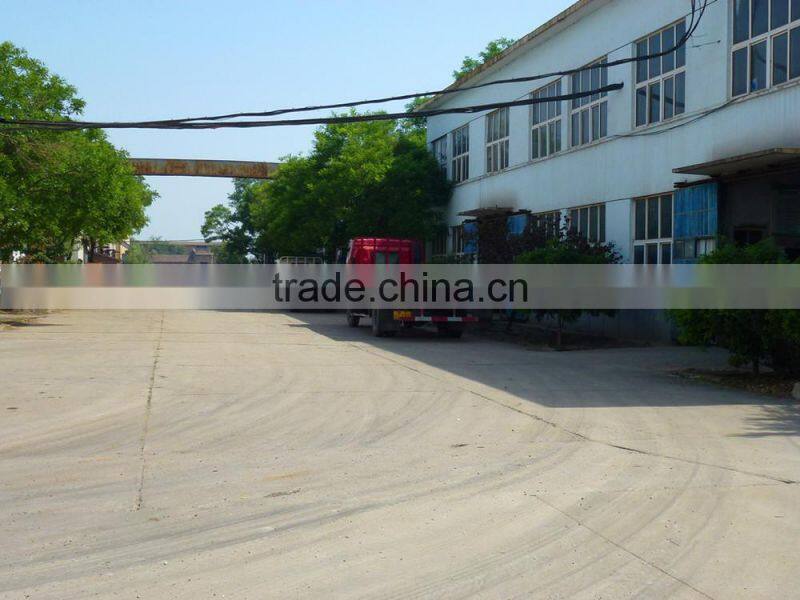

Hebei Jinbao Steel Wire Rope Co. LTD. has powerful technologist force,advanced technology and equipment and complete inspecting means.

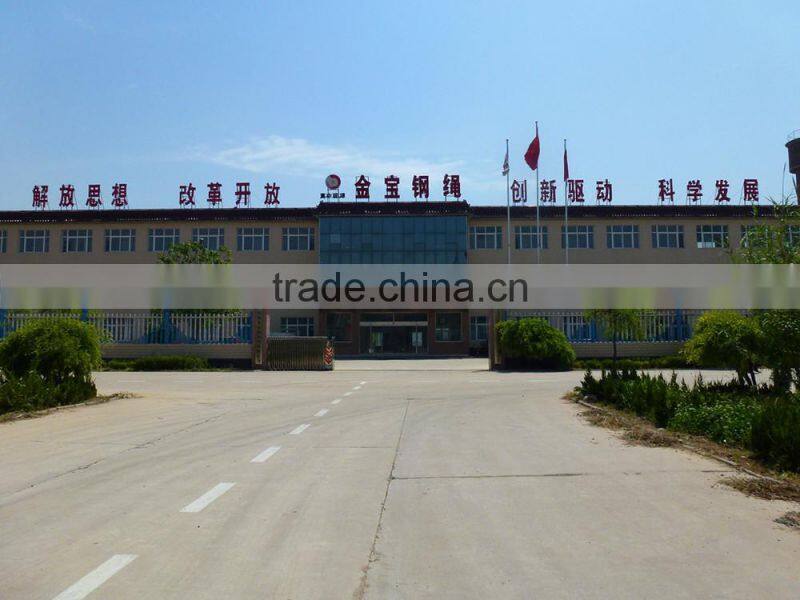

Our company is located in Gucheng County, Hengshui City, Hebei Province. We specialize in manufacturing steel wire, steel wire rope, steel strand, steel cord for radial tires, etc. Our production capacity amounts to 60,000 metric tons
We guarantee stable and timely supply, credible quality and sincere service, and our products sell well in both domestic and overseas markets. If you are interested in any of our products, or wish to place a customized order, please contact us. We will do our best to meet your needs.
Welcome to click our website to learn more details about us.
