Home > Products > Steel Wire > High Carbon Steel Wire

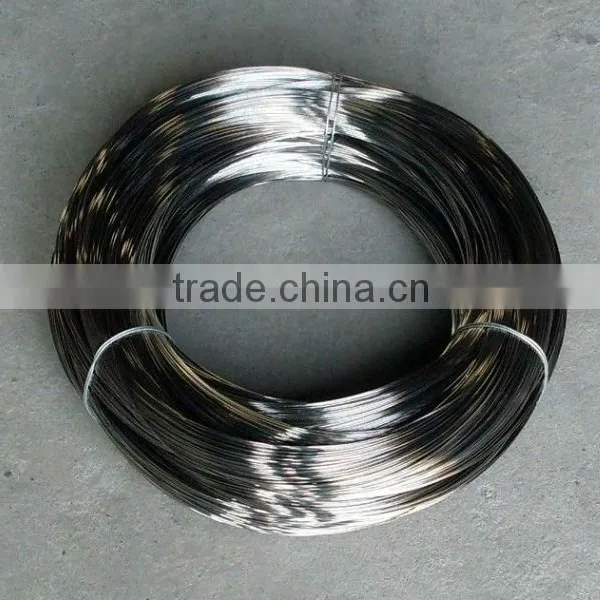

High Carbon Steel Wire
US$ 700 - 900
/ Metric Ton
5 Metric Tons(Min. Order)
- Tianjin Port
- T/T L/C Credit Card PayPal
You May Like
Product Details
| Steel Grade | 60# 65# 70# 72A 82A 82DA | Standard | ASTM, BS, DIN, GB, JIS | |
| Wire Gauge | 0.6-4.0mm | Place of Origin | Hebei, China | |
| Type | Spring | Application | Rope | |
| Alloy Or Not | Is Alloy | Special Use | Free Cutting Steel | |
| Brand Name | JINBAO |
Product Description
Specifications
Diameter:0.6-4.0mm,Tensile strength:1370-1870Mpa
Use:binding or optical cable
It is top quality products of Hebei Province which is used for making the spring of "Ximengsi" spring mattresses on the machine of high speed,continouus,auto-winding spring,and also used for the spring of other mattresses and cusions.Executive Standard:GB4357
| High Carbon Steel Wire | ||||||||||||||
| Dia. (mm) | Tolerance (mm) | Surface | Zinc of coating (g/m2) | Tensile Strength(Mpa) | Torsions (times) | Bends (times) | Elongation (%) | |||||||
| A | B | C | D | E | F | G | H | |||||||
| 0.6-0.7 | ±0.02 | 1470 | 1570 | 1670 | 1770 | 1870 | 30 | 14 | 5 | |||||
| 0.8 | ±0.02 | 1470 | 1570 | 1670 | 1770 | 1870 | 30 | 15 | 5 | |||||
| 0.9 | ±0.02 | 1470 | 1570 | 1670 | 1770 | 1870 | 30 | 12 | 5 | |||||
| 1-1.2 | ±0.02 | 1470 | 1570 | 1670 | 1770 | 1870 | 30 | 15 | 5 | |||||
| 1.3 | ±0.02 | 1470 | 1570 | 1670 | 1770 | 1870 | 30 | 12 | 5 | |||||
| 1.4 | ±0.02 | 1470 | 1570 | 1670 | 1770 | 1870 | 30 | 11 | 5 | |||||
| 1.5 | ±0.02 | 1470 | 1570 | 1670 | 1770 | 1870 | 30 | 14 | 5 | |||||
| 1.6 | ±0.03 | 1470 | 1570 | 1670 | 1770 | 1870 | 30 | 13 | 5 | |||||
| 1.7 | ±0.03 | 1470 | 1570 | 1670 | 1770 | 1870 | 30 | 12 | 5 | |||||
| 1.8 | ±0.03 | 1370 | 1470 | 1570 | 1670 | 1770 | 1870 | 27 | 11 | 5 | ||||
| 1.9 | ±0.03 | 1370 | 1470 | 1570 | 1670 | 1770 | 1870 | 27 | 10 | 5 | ||||
| 2 | ±0.03 | 1370 | 1470 | 1570 | 1670 | 1770 | 1870 | 27 | 15 | 5 | ||||
| 2.1 | ±0.03 | 1370 | 1470 | 1570 | 1670 | 1770 | 1870 | 27 | 14 | 5 | ||||
| 2.2 | ±0.03 | 1370 | 1470 | 1570 | 1670 | 1770 | 1870 | 27 | 13 | 5 | ||||
| 2.3 | ±0.03 | 1370 | 1470 | 1570 | 1670 | 1770 | 1870 | 27 | 12 | 5 | ||||
| 2.4 | ±0.03 | 1370 | 1470 | 1570 | 1670 | 1770 | 1870 | 27 | 11 | 5 | ||||
| 2.5 | ±0.03 | 1370 | 1470 | 1570 | 1670 | 1770 | 1870 | 27 | 10 | 5 | ||||
| 2.6 | ±0.03 | 1370 | 1470 | 1570 | 1670 | 1770 | 24 | 9 | 5 | |||||
| 2.7 | ±0.03 | 1370 | 1470 | 1570 | 1670 | 1770 | 24 | 9 | 5 | |||||
| 2.8 | ±0.03 | 1370 | 1470 | 1570 | 1670 | 1770 | 24 | 9 | 5 | |||||
| 2.9 | ±0.03 | 1370 | 1470 | 1570 | 1670 | 1770 | 24 | 8 | 5 | |||||
| 3 | ±0.03 | 1370 | 1470 | 1570 | 1670 | 1770 | 23 | 12 | 5 | |||||
| 3.1 | ±0.03 | 1370 | 1470 | 1570 | 1670 | 1770 | 23 | 12 | 5 | |||||
| 3.2 | ±0.03 | 1370 | 1470 | 1570 | 1670 | 1770 | 23 | 11 | 5 | |||||
| 3.3 | ±0.03 | 1370 | 1470 | 1570 | 1670 | 1770 | 23 | 10 | 5 | |||||
