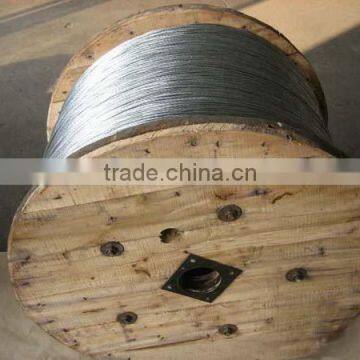

Zinc-plating Steel Strand
US$ 700 - 900
MOQ: 5 Metric Tons
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
JINBAO
Model Number:
Galvanized
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ASTM475 Galvanized Steel Wire StrandUS$ 800 - 980MOQ: 5 Metric Tons -
ASTM A363 Zinc Coated(galvanized)steel Over Head Ground Wire StrandNegotiableMOQ: 5 Metric Tons
-
ASTM A Zinc Coated(galvanized) Steel Over Head Ground Wire StrandNegotiableMOQ: 5 Metric Tons
-
Prestressed Concrete Wire (PC Wire)NegotiableMOQ: 5 Metric Tons
-
PC Steel WireUS$ 750 - 900MOQ: 5 Metric Tons
Place of Origin
Hebei, China
Brand Name
JINBAO
Model Number
Galvanized
Material
Steel
Specifications
Diameter:2.4-12mmTensile strength:1370-1860Mpa
Use:suspension,hanging,communication cable.
It is used for suspension,hanging,communication cable,oerhead power lines and fixing or tying things.
| Minimum Breaking Force of Steel Strand | |||||||
| Construction | 1*7 | ||||||
| Dia. (mm) | Sectional area mm2 | Weight(kg/100m) | Tensile Strength(Mpa) | ||||
| Steel Strand | Wire | 1270 | 1370 | 1470 | 1570 | ||
| mm | Minimum Breaking Force (KN) | ||||||
| 3.0 | 1.00 | 5.50 | 4.58 | 6.42 | 6.92 | 7.43 | 7.94 |
| 3.3 | 1.10 | 6.65 | 5.54 | 7.77 | 8.38 | 8.99 | 9.60 |
| 3.6 | 1.20 | 7.92 | 6.59 | 9.25 | 9.97 | 10.70 | 11.40 |
| 3.9 | 1.30 | 9.29 | 7.73 | 10.80 | 11.70 | 12.50 | 13.40 |
| 4.2 | 1.40 | 10.78 | 8.97 | 12.50 | 13.50 | 14.50 | 15.50 |
| 4.5 | 1.50 | 12.37 | 10.30 | 14.40 | 15.50 | 16.70 | 17.80 |
| 4.8 | 1.60 | 14.07 | 11.71 | 16.40 | 17.70 | 19.00 | 20.30 |
| 5.1 | 1.70 | 15.89 | 13.23 | 18.50 | 20.00 | 21.40 | 22.90 |
| 5.4 | 1.80 | 17.81 | 14.83 | 20.80 | 22.40 | 24.00 | 25.70 |
| 6.0 | 2.00 | 21.99 | 18.31 | 25.60 | 27.70 | 29.70 | 31.70 |
| 6.6 | 2.20 | 26.61 | 22.15 | 31.00 | 33.50 | 35.90 | 38.40 |
| 7.2 | 2.40 | 31.67 | 26.36 | 37.00 | 39.90 | 42.80 | 45.70 |
| 7.8 | 2.60 | 37.16 | 30.93 | 43.40 | 46.80 | 50.20 | 53.60 |
| 8.4 | 2.80 | 43.10 | 35.88 | 50.30 | 54.30 | 58.20 | 62.20 |
| 9.0 | 3.00 | 49.48 | 41.19 | 57.80 | 62.30 | 66.90 | 71.40 |
| 9.6 | 3.20 | 56.30 | 46.87 | 65.70 | 70.90 | 76.10 | 81.30 |
| 10.5 | 3.50 | 67.35 | 56.07 | 78.60 | 84.80 | 91.00 | 97.20 |
| 11.4 | 3.80 | 79.39 | 66.09 | 92.70 | 100.00 | 107.00 | 114.00 |
| 12.0 | 4.00 | 87.96 | 73.22 | 102.00 | 110.00 | 118.00 | 127.00 |
.
| Technical Standar of Steel Strand | |||||||||
| Dia. (mm) | Tolerance (mm) | Tensile Strength(Mpa) | Elongation (%)(Lo=200mm) | Torsions (times/360°) (L=100d) | |||||
| Tensile Strength(Mpa) | |||||||||
| 1270 | 1370 1470 | 1570 | |||||||
| mm | More than | ||||||||
| 1.00 | ±0.05 | 1270 | 1370 | 1470 | 1570 | 2.0 | 18 | 16 | 14 |
| 1.10 | |||||||||
| 1.20 | |||||||||
| 1.30 | |||||||||
| 1.40 | |||||||||
| 1.50 | |||||||||
| 1.60 | |||||||||
| 1.70 | |||||||||
| 1.80 | ±0.06 | 3.0 | 16 | 14 | 12 | ||||
| 2.00 | |||||||||
| 2.20 | |||||||||
| 2.40 | |||||||||
| 2.60 | ±0.08 | ||||||||
| 2.80 | 14 | 12 | 10 | ||||||
| 3.00 | 4.0 | ||||||||
| 3.20 | |||||||||
| 3.50 | ±0.10 | ||||||||
| 3.80 | |||||||||
| 4.00 | |||||||||
| Minimum Breaking Force of Steel Strand | |||||||
| Construction | 1*19 | ||||||
| Dia. (mm) | Sectional area mm2 | Weight(kg/100m) | Tensile Strength(Mpa) | ||||
| Steel Strand | Wire | 1270 | 1370 | 1470 | 1570 | ||
| mm | Minimum Breaking Force (KN) | ||||||
| 5.0 | 1.00 | 14.92 | 12.42 | 17.00 | 18.40 | 19.70 | 21.00 |
| 5.5 | 1.10 | 18.06 | 15.03 | 20.60 | 22.20 | 23.80 | 25.50 |
| 6.0 | 1.20 | 21.49 | 17.89 | 24.50 | 26.50 | 28.40 | 30.30 |
| 6.5 | 1.30 | 25.22 | 20.99 | 28.80 | 31.00 | 33.30 | 35.60 |
| 7.0 | 1.40 | 29.25 | 24.35 | 33.40 | 36.00 | 38.60 | 41.30 |
| 8.0 | 1.60 | 38.20 | 31.80 | 43.60 | 47.10 | 50.50 | 53.90 |
| 9.0 | 1.80 | 48.35 | 40.25 | 55.20 | 59.60 | 63.90 | 68.30 |
| 10.0 | 2.00 | 59.69 | 49.69 | 68.20 | 73.60 | 78.90 | 84.30 |
| 11.0 | 2.20 | 72.22 | 60.12 | 82.50 | 89.00 | 95.50 | 102.00 |
| 12.0 | 2.40 | 85.95 | 71.55 | 98.20 | 105.00 | 113.00 | 121.00 |
| 12.5 | 2.50 | 93.27 | 77.64 | 106.00 | 114.00 | 123.00 | 131.00 |
| 13.0 | 2.60 | 100.88 | 83.98 | 115.00 | 124.00 | 133.00 | 142.00 |
| 14.0 | 2.80 | 116.99 | 97.39 | 133.00 | 144.00 | 154.00 | 165.00 |
| 15.0 | 3.00 | 134.30 | 118.80 | 153.00 | 165.00 | 177.00 | 189.00 |
| 16.0 | 3.20 | 152.81 | 127.21 | 174.00 | 188.00 | 202.00 | 215.00 |
| 17.5 | 3.50 | 182.80 | 152.17 | 208.00 | 225.00 | 241.00 | 258.00 |
| 20.0 | 4.00 | 238.76 | 198.76 | 272.00 | 294.00 | 315.00 | 337.00 |
