Specifications
FENAN China TOP manufacturerRound Stainless Steel tubes
25year experience
ISO9001/14001
good quality,cheap price

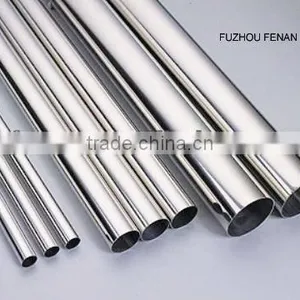

Product: Round Stainless Steel tubes
key words: Round Stainless Steel tubes
1.Welded steel pipe Weld steel tubes Details:
- Material: 201,202,304,316,316L;
- Standard: ASTM A 554;
- Specifications:
20mm x 10mm, 20mmx40mm, 20mmx50mm
25mm x 13mm, 25mmx38mm, 25mmx50mm
30mm x 10mm, 30mmx15mm, 30mmx60mm
45mm x 75mm, 45mmx95mm,
50mm x 100mm, 150mmx100mm;
- Thickness: 0.4mm to 3.0mm;
- Length: 6m or as customized;
- Tolerance:
Thickness:+/-0.03mm
Dimension:+/-0.03mm
Length:+/-3-5mm
- surface finish: mill finish,BA polish(mirrior polish),hair brush ,circular satine polish,etc..
- payment term: T/T:30% deposit and 70% pay against the copy of B/L or L/C at sight
2.Welded steel pipe Welded steel tubes Application:
1)Application: Petroleum,chemical,power,gas,metallurgy, shipbuilding, construction, etc.
2)Materials: 200series, 300 series and so on.
3)Welded Steel Pipe according to standard: ASTM.DIN,BS,GB,API5L,API5CT.
4)Delivery time: 15-20 days after the shippment.
3. SPECIFICATION
Item |
stainless steel decorative plate ,stainless steel checkered plate,stainless steel embossed plate ,stainless steel colour plate |
Standard |
ASTM A240,GB/T3280-2007,JIS4304-2005,ASTM A167,EN10088-2-2005,etc |
Material |
310S,309S,316L,317,317L,321,321H,347,347H,304,304L,301,201,202,405, 409,410,420,430,etc |
Surface |
2B,BA,NO.1,NO.4,NO.8,8K,mirror |
Pattern |
Diamond type,Bean type,"T"type,Chrysanthemum type or as required |
Type |
Printing ,colour,checkered,embossed,polishing,etching,design as required. |
Thickness |
0.3~30mm |
Width |
1000mm,1219mm,1500mm,1800mm,2000mm,2200mm,etc |
Length |
2000mm,2440mm,3000mm,3048mm,5800mm,6000mm,etc |
Application |
Stainless steel decorative plate are widely used in architectural decoration, luxurious door, elevator decoration, the metal cabinet shell, shipbuilding, train plastics and etc, and outdoor engineering, advertising the nameplates, ambry smallpox, screen, tunnel project, hotel, the lobby facades, kitchen equipment, light industrial products, etc. |
4. THE CHEMICAL COMPOSITION AND MECHANICAL PROPERTIES
| Grade | C (Max) | Mn (Max) | P (Max) | S (Max) | Si (Max) | Cr | Ni | Mo | Nitrogen (Max) | Cu/ Others |
| 201 | 0.15 | 5.50-7.50 | 0.06 | 0.03 | 1 | 16.00-18.00 | 3.50-5.50 | - | 0.25 | |
| 202 | 0.15 | 7.50-10.00 | 0.06 | 0.03 | 1 | 17.00-19.00 | 4.00-6.00 | - | 0.25 | |
| 301 | 0.15 | 2 | 0.045 | 0.03 | 1 | 16.00 - 18.00 | 6.00 - 8.00 | - | 0.1 | - |
| 304 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.00 - 20.00 | 8.00- 10.50 | - | 0.1 | - |
| 304N | 0.08 | 2 | 0.045 | 0.03 | 0.75 | 18.0-20.0 | 8.00-13.00 | - | - | - |
| 304H | 0.04-0.10 | 2 | 0.045 | 0.03 | 0.75 | 18.00-20.00 | 8.00-11.00 | - | 0.1 | - |
| 304LN | 0.035 | 2 | 0.045 | 0.03 | 0.75 | 18.00-20.00 | 8.00-11.00 | - | - | - |
| 304L | 0.03 | 2 | 0.045 | 0.03 | 1 | 18.00 - 20.00 | 8.00- 12.00 | - | 0.1 | - |
| 305 | 0.12 | 2 | 0.045 | 0.03 | 1 | 17.00-19.00 | 10.5-13.00 | - | - | - |
| 309 | 0.15 | 2 | 0.045 | 0.03 | 0.75 | 22.00-24.00 | 12.00-15.00 | - | - | - |
| 310 | 0.15 | 2 | 0.045 | 0.03 | 0.75 | 24.00-26.00 | 19.00-22.00 | - | - | - |
| 310S | 0.08 | 2 | 0.045 | 0.03 | 1.5 | 24.00- 26.00 | 19.00-22.00 | - | - | - |
| 316 | 0.08 | 2 | 0.045 | 0.03 | 1 | 16.00 - 18.00 | 10.00- 14.00 | 2.00 - 3.00 | 0.1 | - |
| 316H | 0.04-0.10 | 2 | 0.045 | 0.03 | 0.75 | 16.00-18.00 | 11.00-14.00 | 2.00-3.00 | 0.1 | - |
| 316N | 0.08 | 2 | 0.045 | 0.03 | 0.75 | 16.00-18.00 | 11.00-14.00 | 2.00-3.00 | 0.1 | - |
| 316L | 0.03 | 2 | 0.045 | 0.03 | 1 | 16.00 - 18.00 | 10.00- 14.00 | 2.00 - 3.00 | 0.1 | - |
| 316LN | 0.035 | 2 | 0.045 | 0.03 | 0.75 | 16.00-18.00 | 10.00-15.00 | 2.00-3.00 | 0.1 | - |
| 316Ti | 0.08 | 2 | 0.045 | 0.03 | 1 | 16.00 - 18.00 | 10.00- 14.00 | 2.00 - 3.00 | 0.1 | - |
| 317 | 0.08 | 2 | 0.045 | 0.03 | 0.75 | 18.00 - 20.00 | 11.00 - 14.00 | 3.00 - 4.00 | 0.1 | - |
| 317L | 0.03 | 2 | 0.045 | 0.03 | 0.75 | 18.00 - 20.00 | 11.00 - 15.00 | 3.00 - 4.00 | 0.1 | - |
| 321 | 0.08 | 2 | 0.045 | 0.03 | 0.75 | 17.00 - 19.00 | 9.00 - 12.00 | - | 0.1 | - |
| 321H | 0.04-0.10 | 2 | 0.045 | 0.03 | 0.75 | 17.00-20.00 | 9.00-13.00 | - | 0.1 | - |
| 329 | 0.089 | 1 | 0.045 | 0.03 | 0.75 | 23.00-28.00 | 2.50-5.00 | 1.00-2.00 | - | - |
| 347 | 0.08 | 2 | 0.045 | 0.03 | 0.75 | 17.00 - 19.00 | 9.00 - 13.00 | - | ||
| 347H | 0.04-0.10 | 2 | 0.045 | 0.03 | 0.75 | 17.00-20.00 | 9.00-13.00 | - | ||
| 405 | 0.08 | 1 | 0.045 | 0.03 | 0.75 | 11.5-13.5 | 0.60 | - | ||
| 409 | 0.089 | 1 | 0.045 | 0.03 | 1.00 | 10.50-11.75 | 0.60 | - | ||
| 410 | 0.15 | 1 | 0.045 | 0.03 | 0.75 | 11.5-13.5 | 0.60 | - | ||
| 420 | 0.16-0.25 | 1 | 0.040 | 0.03 | 1.0 | 12.00-14.00 | 0.60 | - | ||
| 430 | 0.12 | 1 | 0.045 | 0.03 | 0.75 | 18.00-23.00 | 0.60 | - | ||
| 443 | 0.20 | 1 | 0.045 | 0.03 | 0.75 | 18.00-23.00 | 0.60 | - | ||
| 446 | 0.20 | 1.50 | 0.045 | 0.03 | 0.75 | 23.00-30.00 | 0.60 | - | ||
| 904L | 0.02 | 2 | 0.045 | 0.03 | 1.0 | 19.00-23.00 | 23.00-28.00 | 4.00-5.00 | ||
| S31803 | 0.03 | 2 | 0.030 | 0.03 | 1.0 | 21.00-23.00 | 4.50-6.50 | 2.50-3.50 | ||
| S32205 | 0.03 | 2 | 0.030 | 0.03 | 1.0 | 22.00-23.00 | 4.50-6.50 | 2.00-3.50 |
Below is our regular size of our FENAN stainless steel welded pipe , any other specifacation, pls feel free to contact me! Ms. Sarah (skype: sarahshang88)
key words: Round Stainless Steel tubes
Product Name: Round Stainless Steel tubes

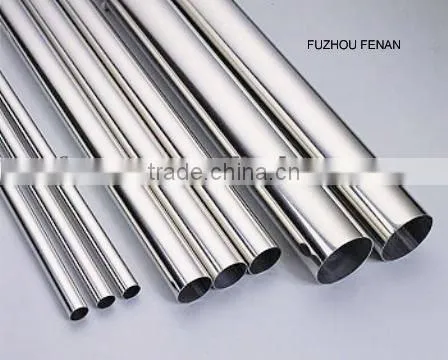

Product pictures:
Company Introduce:
Fujian FENAN Stainless Steel Co., Ltd is the professional stainless steel product manufacturer in China ,founded in 1988, occupied 20,ter. The company imported the advanced equipment to produce stainless steel tubes for architecture and decoration. Our sales network has expanded to all city of China, and is leading to international market.
Our S/S products are ISO9001 certified. With excellent quality, reasonable price and well after service, our products received high value from our customers, and have got the honor of Fujian Credit Standing Product and Quality Assurance Product. FENAN Brand stainless steel tubes have been introducing to nationwide architectural projects since it is incorporated into the Manual of Chinese Main Building Materials Manufacturer.
our factory:
Certificate:
Competitive stainless steel tube price from specialized stainless steel manufacturers
3. My Contact
Company Name |
Fujian FENAN Group |
Factory Name |
Fujian FENAN Aluminium Co., Ltd |
Company Address |
No.142, Jianxin Noth Rd, Jinshan Industrial zone, Fuzhou, Fujian, China |
Contact Person |
Ms.Sarah Shang |
Tel |
+0086-591-83669891 |
Fax |
+0086-591-83055607 |
Skype |
sarahshang88 |
Mob |
0086-15080456883 |
Postcode |
350000 |
Web |
