Specifications

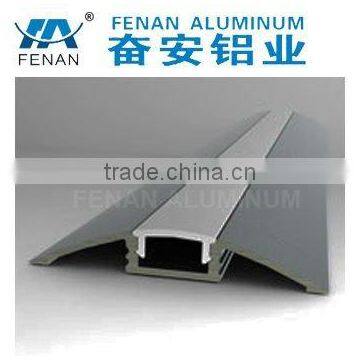

ALUMINIUM LED PROFILE1. 6063 /6005 T5/T6
2.OEM/ODM are welcome
3.price/kg :usd2.55-3.25
Key word: FENAN 24 YEARS ALUMINIUM LED PROFILE- LED ALUMNIUM PROFILE
FENAN COMPANY
We are ISO certified manufacturer in Fuzhou, China,
specialized in R & D, marketing and production
range:of various aluminum profile, doors and windows, curtain wall and stainless steel products.
Established in 1988, FENAN Group now occupy 540000 sq. meters,
housing 25 extrusion lines with more than 900workers, Annual output reach 100000 tons.
(1)Advantage of our goods :
1. Raw materials various from pure aluminum to alloy duralumin,-we done the aluminium bar by ourself which can be better to control the quality
2. Material Type: 6063A, 6063, 6005, etc
3. Heat Treat.: T5, T6;
4. Surface Treatment: Anodized (silver,black, bronze, champagine), Powder Coating in various color , Electrophoresis (silver,black, bronze, champagine), Wooden-pattern transfer,Thermal-break, etc;
5.Powder coating Material: Akzu layer:60-80um control
anodize layer:10-20um (range)
we have specialize equitment to test the material,layer ,and all the goods will be inspected before shipment out .
6. Widely used in construction, decoration and industry
(2)The products & service we--Fenan can provide
1.aluminium extrusion profiles for window ,door ,fence , screen ,surtain wall ,handrail, partition ,wardrobe,ect
2.indstrial aluminium profile ,such as solar panel frames, exhibit shelf ,LED Frames, prodoction factility, ect
3.any size tube, pipe ,angle,T profile, U channel
4.Deep processing alility for aluminium ,and S/S products,fabrication drill hold, milling ,de-burr ,charnfer ,stetch bending ,welding ,and so on
5.Engineering design and conmsult ,we can do the design according to your samples or drawings .
Chemical composition
Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Impurity | Al |
6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45-0.90 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
6061 | 0.4-0.8 | 0.70 | 0.15-0.40 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | 0.15 | Rest |
6005 | 0.6-0.9 | 0.35 | <0.1 | <0.1 | 0.40-0.6 | <0.1 | <0.1 | <0.1 | <0.15 | Rest |
Mechanical property
Alloy | Condition | Tensile strength | Yield strength | Elongation | Vickers hardness |
6061 | T6 | >265Mpa | >245Mpa | >8% |
|
6063 | T5 | >160Mpa | >110Mpa | >8% | HV>58 HW>8 |
T6 | >205Mpa | >180Mpa | >8% |
|
Colored anodized profile
Grade | Thickness of film | Hole scaling quality of oxide layer | |
Average thickness | Local thickness | P. Cr acid-erosion weight less method | |
AA10 | >10um | >8mm | <30 mg/d m2 |
AA15 | >15um | >12um | |
Machining Availble:
*45 Degree and 90 Degree Cutting
Length Tolerance: Under +/-0.5mm
Degree Tolerance: Under +/-0.3 Degree
*Punch and Drill for mounting holes and drainage holes
* De-burr,Chamfer,
* Corner assembly and Fabrication
* Milling,Stretch bending,Welding, etc
Yours any inquires about the aluminium are very welcome!We sure reply your inquiry within 24hours.
Contact Foreign Trade Dept :Marana
fuqing base
Send Inquiry to This Supplier
