Specifications
advertising shelf extrusion profile1.6063,6005 temper T5/T6
2.partion/office/toilet /Led profile,solar frame
3.23 years exp
Key words: advertising shelf extrusion profile
What kind of products and service we can provide

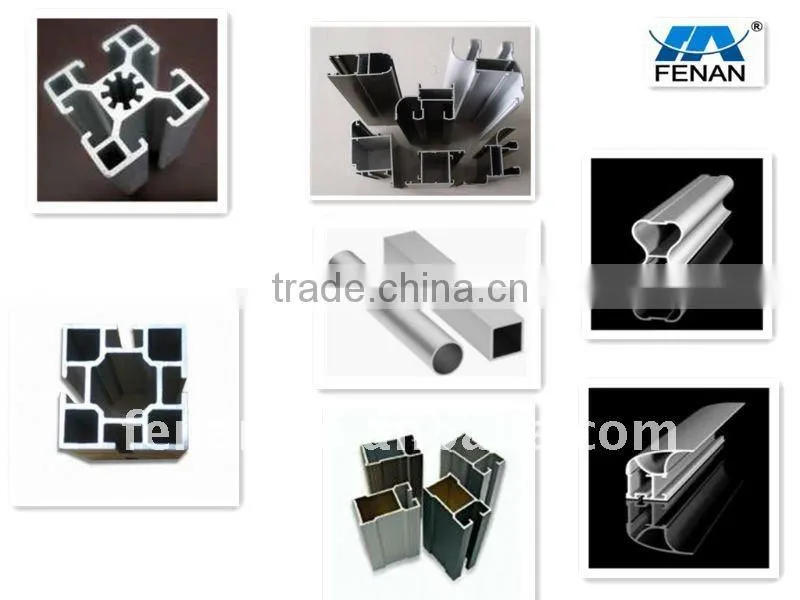

· Aluminum Profile for doors, windows frame , fence, screen, curtain wall, handrail, partition, wardrobe,,sunroon ,etc
· Industrial Aluminum Profile, such as solar panel frame, exhibit shelf extrusion profile , LED frame, production facility, auto parts, solar pannel etc;
· Surface Finish: Powder Coating , mill finish, Anodized, Wooden pattern transfer, electrophoresis,
· Doors and Windows System, include sliding door, side hung window, tilt and turn window, etc
· Aluminium Tube,pipe,u channel, Angle,Z profile,and so on.
· We can do the profile according to your drawing exactly.
Who is FENAN
1. ISO certified manufacturer in Fuzhou, China,
2.specialized in R & D, marketing and production of various aluminum profile,
3.business range: doors and windows, curtain wall and stainless steel products.
4.Established in 1988, FENAN Group now occupy 540000 sq. meters,(TWO FACTORY), with more than 900 workers,
5.housing 25 extrusion lines
6. Annual output reach 80000 tons.
Feature of our goods :
Chemical composition
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.90 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
6061 |
0.4-0.8 |
0.70 |
0.15-0.40 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
6005 |
0.6-0.9 |
0.35 |
<0.1 |
<0.1 |
0.40-0.6 |
<0.1 |
<0.1 |
<0.1 |
<0.15 |
Rest |
Mechanical property
Alloy |
Condition |
Tensile strength |
Yield strength |
Elongation |
Vickers hardness |
6061 |
T6 |
>265Mpa |
>245Mpa |
>8% |
|
6063 |
T5 |
>160Mpa |
>110Mpa |
>8% |
HV>58 HW>8 |
T6 |
>205Mpa |
>180Mpa |
>8% |
|
Colored anodized profile
Grade |
Thickness of film |
Hole scaling quality of oxide layer |
|
Average thickness |
Local thickness |
P. Cr acid-erosion weight less method |
|
AA10 |
>10um |
>8mm |
<30 mg/d m2 |
AA15 |
>15um |
>12um |
|
Electrophoretic coating profiles
Grade |
Anodic oxide film |
Thickness of paint film |
Thickness of complex film |
Film hardness |
|||||
Average thickness |
Local thickness |
||||||||
A |
>10um |
>8um |
>12um |
>21um |
>3um |
||||
B |
>10um |
>8um |
>7um |
>17um |
>3um |
||||
Powder coating & wooden-grained profile
Coating thickness |
Coating impress rigidity |
Adhesive force of coating layer |
40-120um |
Indentation hardness>80 |
0 grade |
characteristic service
1.OEM Service (R&D)
2.Our 10 engineers can design the products according to the customers' requirement completely.
3.After 26 years of experience in manufacturing and exporting, we have had many kinds of the moulds ourselves. So we can save the mould fee for the customers for some kinds of the products.
4.Our morden further processing center can do most Cutting,punching,drilling and tapping.
5.Qualification:ISO9001 /14001quality management system certificate
Advantage of Fenan
1.With the new factory our have 26 extrusion production line and more than 540,000 square meter of production area;

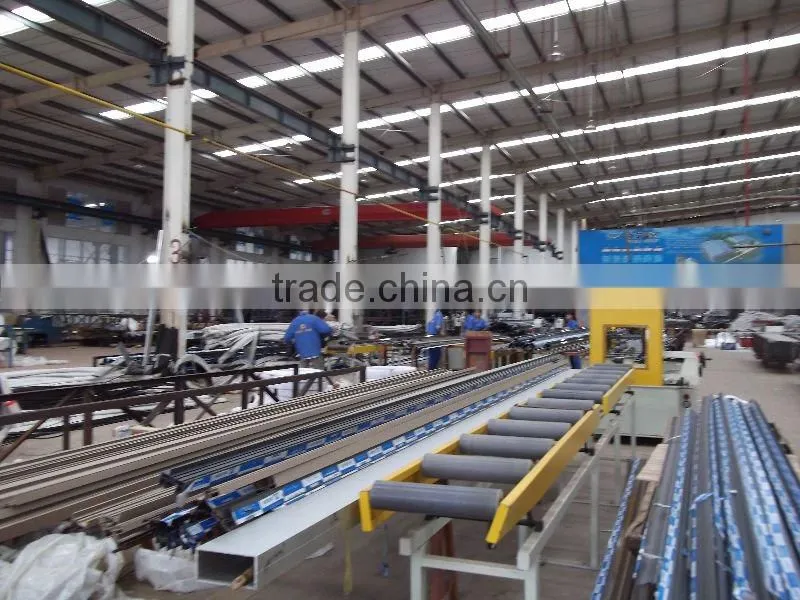

2.Our manufactory have all kinds of the equipments such as blast furnace,extrusion line,Temper machine,verticality
and horizontal powder coating line,new Anodize machine,cuting and drilling manchine and so on."
3.Over 70 Quality Control Engineers, will inspect each of our product carefully before the shipment.
4.The delivery time and the package can be controled according to the customers' requirement completely.
5.We can provide the best service and the competitive price and the payment terms also .
Coating Thickness Gauge and so on.Any of the defective products will be melted down immediately.
Any inquiry from you welcome ! pls contact with Marana ! skype: miranapeng
