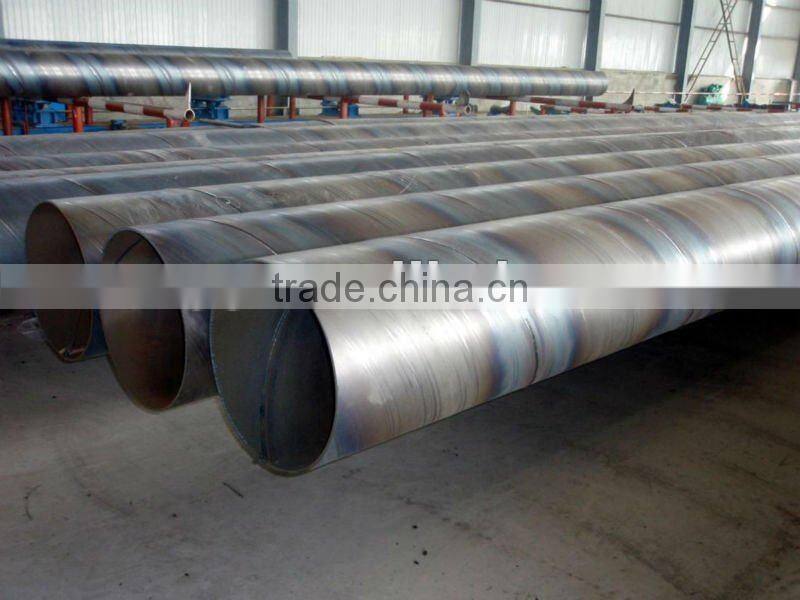

Welded Steel Pipe/tube

Tianjin Tianyingtai Imports And Exports Trade Co., Ltd.

US$ 500 - 600 MOQ: 10 Metric Tons

Key Specifications

Standard:

Grade:

Thickness:

3.2, 25.4

Payment & Shipping

Payment Methods:

Port of Shipment:

Xingang

Delivery Detail:

Delivery time depends on order quantity.

Thickness 3.2, 25.4

Section Shape Round

Outer Diameter 219.1 - 4064 mm

Secondary Or Not Non-secondary

Application Fluid Pipe

Technique SAW

Certification Other, ISO 9001:2000

Surface Treatment Other, Black, Varnish coating/Anti rust oil

Special Pipe API Pipe

Alloy Or Not Non-alloy

Specifications

Welded Steel Pipe
Standard:API 5L, ASTM A252;
OD:219.1 - 4064mm
WT:3.2 - 25.4mm
LT: 6-18mtr

Steel Grade:
Q195, Q215, Q235, Q275, Q295, Q345, 08F, 08, 08AL, 08F, 10F, 10, HG5, DF08 SPHC, M8
S185, S235, S235JR, S235 G2H, S275, S275JR, S355JRH, S355J2H, St12, St13, St14, St33,St37, St44, ST52
ASTM A 53: Gr. A, Gr B, Gr C, Gr.D
API 5L: A, B, X42, X46, X52, X56, X60, X65 X70
GB/T9711: L175, L210, L245, L290, L320, L360, L290, L320, L360, L390, L415, L450, L485, L555
ASTM A252: Gr.1 Gr.2 Gr.3

Size range:
Outer Diamter: 219.1mm - 4064mm (8" - 160")
Wall Thickness: 3.2 mm - 25.4mm
Length: 6mtr-18mtr

coating and lining:
Outside coating:
Anti-rust oil, black painting.
Epoxy Coating according to AWWA C-210
Bitumen Coating according to DIN30672, BS534
Coal- Tar Enamel Coating according to AWWA C-203
3 Layer polyethylene Coating according to DIN30670
3 Layer Polypropylene Coating according to DIN30678
Inside lining:
Epoxy lining according to AWWA C-210
Bitumen Lining according to DIN30673, BS534
Coal-Tar Enamel Lining according to AWWA C-203
Cement Mortar Lining according to AWWA C-205, BS534

Joint details:
Welded joint: The most widely used type for the joining of steel pipes. Steel pipe is relieved with bevelled ends which are made with special equipment in compliance with the relevant stanards.
Spherical socket joint: provides the possibility of a rotation 10 degrees at the pipeline without the utilization of any special fittings. Steel pipes are welded from outside after proper erectioning according to required angle.
Spigot and socket joint: Wspecially used for the steel pipes inside coated with cement mortar. Steel pipes are welded from outside after erectioning.
Flanged joint: The special manufactured flanged are welded to the ends of the pipe and then jointed with bolts.


Test:Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties ( Bending Test, Blow Test, Impact Test), Exterior
